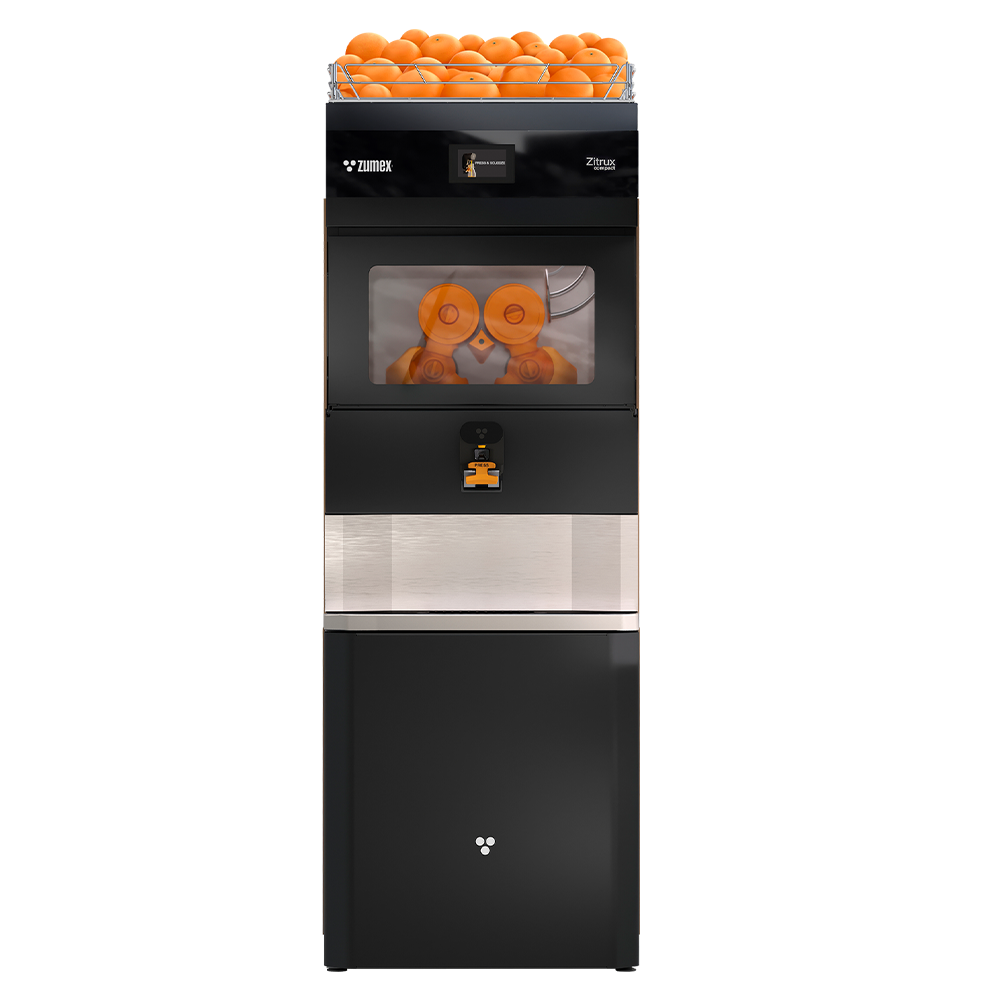

Zumex Zitrux Compact self-sanitizing automatic orange juicer

Product Description

The Zumex Zitrux Compact is a self-sanitizing automatic orange juicer 24.8 inches wide, with a 66 lb fruit feeder and touchless tap, rated at 40 fruits per minute.

Zitrux Cleaning in a Third of the Width

The full Zitrux is 68.8 inches wide. The Compact brings the same automatic juice unit cleaning and rinsing into a 24.8 by 28.9 inch cabinet with a 0.46 square meter footprint, for stores that want a self-sanitizing juicer without giving up a full wall.

66 lb Feeder and 52 Liter Waste

The Compact trades capacity for space: the feeder holds 30 kg (66 lb) of oranges against 154 lb on the full Zitrux, and the waste bin holds 52 liters against 120. Output stays at 40 fruits per minute with a touchless tap actuated by positioning the bottle.

Plumbing and Power Requirements

Installation needs a G3/4 female water inlet with at least 12 liters per minute at 2.5 bar, soft water between 5 and 8 fH, and a 20 mm corrugated drain. It runs on 208-240 V at 50/60 Hz, drawing 1.2 A while squeezing and 10.4 A at 2300 W during the detergent cleaning cycle.

Specifications

Model Zitrux Compact
Reference 12454
Type Self-sanitizing automatic orange juicer
Finish Oiled Oak
Fruit Type Oranges
Fruit Diameter M Kit 65-81 mm
Production 40 fruits per minute
Rate 1 juice (250 ml) in 5 seconds
Tap Touchless; actuated by positioning the bottle
Feeder Capacity 66 lb (30 kg)
Waste Capacity 52 L
Bottle Holder 38 mm
Exterior Dimensions 24.8 in W x 28.9 in D x 69.7 in H
Footprint 0.46 sq m
Net Weight 403 lb
Shipping Weight 461.8 lb
Packaged Dimensions 34.6 in W x 31.9 in D x 82.6 in H
Electrical 208-240 V, 50/60 Hz
Amperage Squeezing 1.2 A; cleaning with detergent 10.4 A
Power Squeezing 260 W (0.34 HP); cleaning with detergent 2300 W (3.08 HP)
Water Hardness Between 5 and 8 fH (soft water)
Water Inlet G3/4 female, minimum 12 L per minute at 2.5 bar (250 kPa)
Drain Corrugated drain pipe, 20 mm diameter
Juice Unit Cleaning Automatic
Juice Unit Rinsing Automatic
Safety Double security detector in accesses to mobile elements; motor locking detection mechanism
Sound Pressure Level Below 70 dB

Warranty

Zumex warrants its products to be free of manufacturing defects for the period stated in the Zumex Warranty Manual, starting from the invoice date. An extended 5-year warranty is available on select products when the unit is registered at zumex.com within 3 months of purchase.
