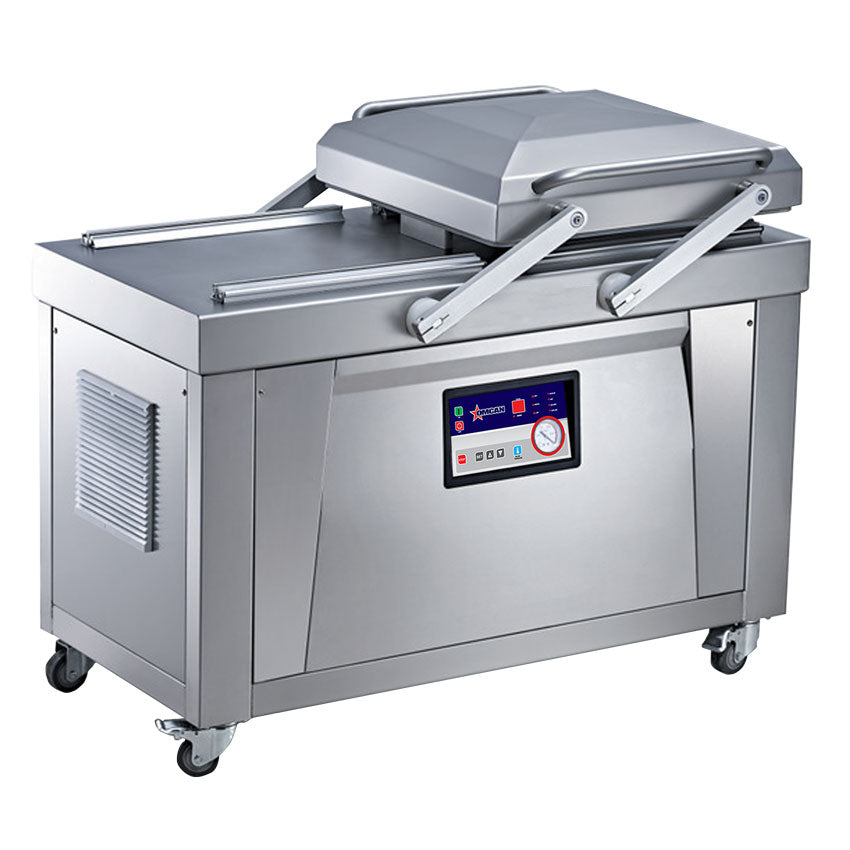

Omcan VP-CN-0600 double chamber vacuum packaging machine with 4 seal bars

Product Description

The Omcan VP-CN-0600 is a double chamber vacuum packaging machine with 4 x 23.6 Inch seal bars, listed for 220 V, 3 phase operation.

Double Chamber with 4 x 23.6 Inch Seal Bars

The Omcan page title lists this model as a double chamber machine with 4 x 23.6 Inch seal bars. Chamber dimensions are listed as 29.9 Inch x 23.6 Inch x 6.3 Inch.

20 m3/h Pump Capacity at 0.75 kW x 2

Pump capacity is listed as 20 m3/h (x2) and power as 0.75 kW x 2 (total 1.5 kW). The production cycle is listed as 1-2 times/min.

220 V Three Phase and 613 lb Net Weight

Electrical is listed as 220 V/60 Hz/3 Ph with a NEMA L15-20 P plug. Net weight is listed as 613 lb / 278 kg and net dimensions as 59.4 Inch x 27 Inch x 37.8 Inch, or 1510 x 685 x 960 mm.

Specifications

Model VP-CN-0600
Omcan Item Number 43632
Power 0.75 kW x 2 (total 1.5 kW)
Pump Capacity 20 m3/h (x2)
Production Cycle 1-2 times/min
Electrical 220 V/60 Hz/3 Ph
Plug NEMA L15-20 P
Sealer Dimensions 23.6 Inch x 0.3 Inch x 0.07 Inch
Chamber Dimensions 29.9 Inch x 23.6 Inch x 6.3 Inch
Net Dimensions 59.4 Inch x 27 Inch x 37.8 Inch / 1510 x 685 x 960 mm
Net Weight 613 lb / 278 kg
Shipping Dimensions 63.4 Inch x 30 Inch x 46 Inch
Shipping Weight 732 lb
Certifications QPS Certified
UPC 690207436322
Country of Origin China

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
