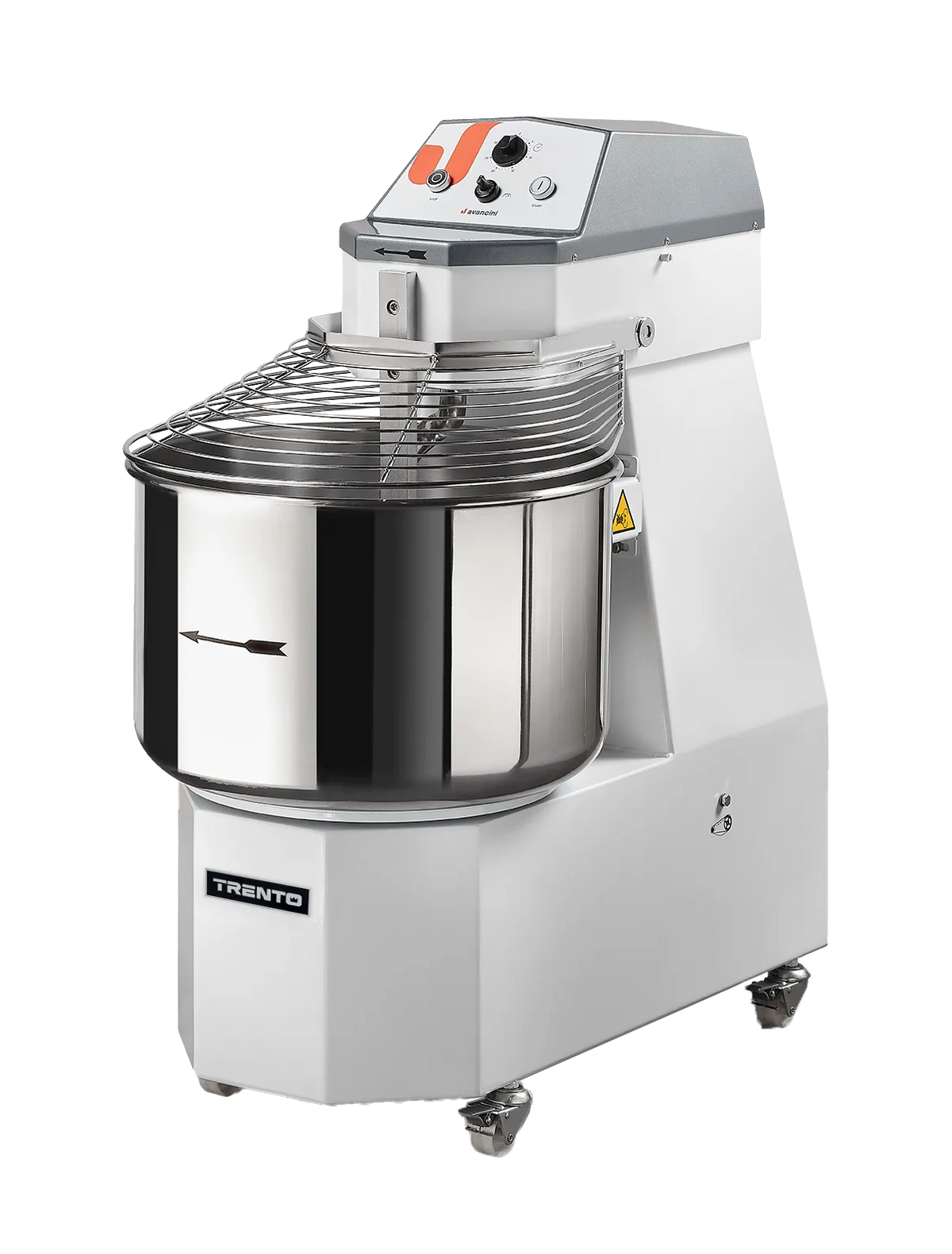

Omcan SPV60 Avancini 89.8 qt spiral dough mixer with 10 speeds

Product Description

The Omcan SPV60 is an Avancini spiral dough mixer with 10 speeds and an 89.8 qt bowl. It is rated 5.5 HP (4100 W) on 240 V/60 Hz/1 Ph power.

89.8 Qt Bowl Capacity

The Omcan page lists a bowl capacity of 89.8 qt (85 L) and bowl dimensions of 21.6 inch x 14.2 inch (550 x 360 mm). Bowl RPM is listed as 8 on 1st speed and 28 on 2nd speed.

Flour and Dough Capacities

The listed maximum dry flour capacity is 88 lb (40 kg) and the maximum dough capacity is 132 lb (60 kg). Spiral RPM is listed as 69 on 1st speed and 249 on 2nd speed.

5.5 HP at 24 A on 240 V

The motor is listed at 5.5 HP (4100 W) and 24 A on 240 V/60 Hz/1 Ph. The plug is listed as NEMA 6-30 P.

Specifications

Model SPV60
Omcan Item Number 49183
Bowl Capacity 89.8 qt / 85 L
Max Dry Flour Capacity 88 lb / 40 kg
Max Dough Capacity 132 lb / 60 kg
Bowl RPM 1st Speed 8, 2nd Speed 28
Spiral RPM 1st Speed 69, 2nd Speed 249
Power 5.5 HP / 4100 W
Amps 24 A
Electrical 240 V/60 Hz/1 Ph
Plug NEMA 6-30 P
Bowl Dimensions 21.6 inch x 14.2 inch / 550 x 360 mm
Net Dimensions 21.6 inch x 39 inch x 43 inch / 550 x 990 x 1090 mm
Net Weight 474 lb / 215 kg
Shipping Dimensions 25.6 inch x 42.5 inch x 51.2 inch
Shipping Weight 529 lb
Certifications cETLus Certified, ETL Sanitation Certified
Country of Origin Italy
UPC 690207491833

Warranty

Omcan lists a 1 Year Parts Warranty and a 1 Year Labor Warranty.
