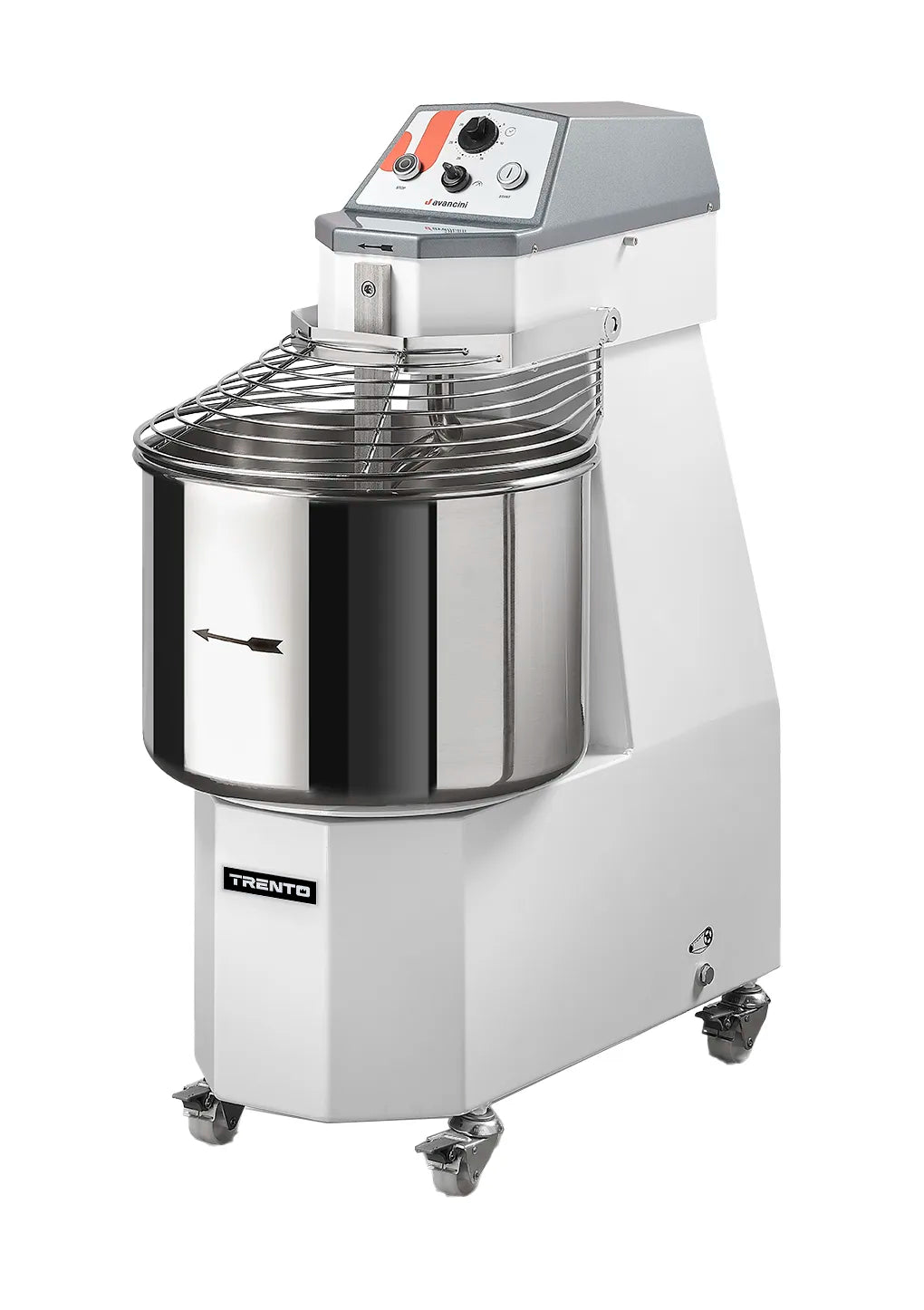

Omcan SPV40 Avancini 52 qt spiral dough mixer with 10 speeds

Product Description

The Omcan SPV40 is an Avancini 52 qt spiral dough mixer with 10 speeds. It is rated 5.5 HP (4100 W) on 240 V/60 Hz/1 Ph power.

52 Qt Bowl Capacity

The Omcan page lists a bowl capacity of 52 qt (49 L) and bowl dimensions of 17.7 inch x 12.4 inch (450 x 315 mm). Bowl RPM is listed as 8 on 1st speed and 29 on 2nd speed.

Flour and Dough Capacities

The listed maximum dry flour capacity is 58.8 lb (26.6 kg) and the maximum dough capacity is 88.2 lb (40 kg). Spiral RPM is listed as 71 on 1st speed and 254 on 2nd speed.

5.5 HP at 24 A on 240 V

The motor is listed at 5.5 HP (4100 W) and 24 A on 240 V/60 Hz/1 Ph. The plug is listed as NEMA 6-30 P.

Specifications

Model SPV40
Omcan Item Number 49181
Bowl Capacity 52 qt / 49 L
Max Dry Flour Capacity 58.8 lb / 26.6 kg
Max Dough Capacity 88.2 lb / 40 kg
Bowl RPM 1st Speed 8, 2nd Speed 29
Spiral RPM 1st Speed 71, 2nd Speed 254
Power 5.5 HP / 4100 W
Amps 24 A
Electrical 240 V/60 Hz/1 Ph
Plug NEMA 6-30 P
Bowl Dimensions (Dia. x H) 17.7 inch x 12.4 inch / 450 x 315 mm
Net Dimensions 18.9 inch x 31.9 inch x 38.2 inch / 480 x 810 x 970 mm
Net Weight 273 lb / 124 kg
Certifications cETLus Certified, ETL Sanitation Certified
Country of Origin Italy
UPC 690207491819

Warranty

Omcan lists a 1 Year Parts Warranty and a 1 Year Labor Warranty.
