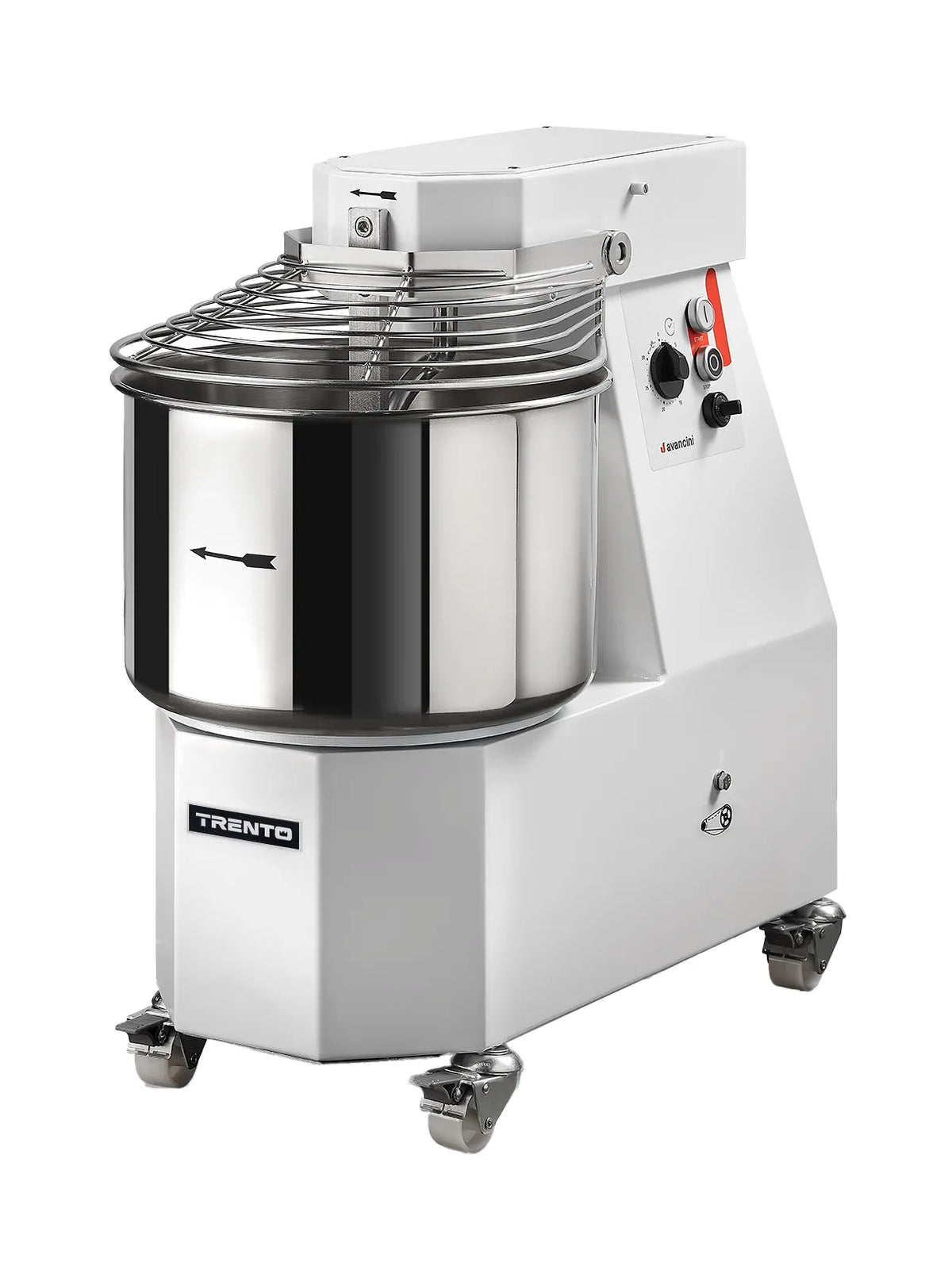

Omcan SPV20 Avancini 24 qt spiral dough mixer with 10 speeds

Product Description

The Omcan SPV20 is an Avancini 24 qt spiral dough mixer with 10 speeds. It is rated 2.4 HP (1800 W) on 240 V/60 Hz/1 Ph power.

24.3 Qt Bowl Capacity

The Omcan page lists a bowl capacity of 24.3 qt (23 L) and bowl dimensions of 14.4 inch x 9.6 inch (365 x 245 mm). Bowl RPM is listed as 8 on 1st speed and 27 on 2nd speed.

Flour and Dough Capacities

The listed maximum dry flour capacity is 26.4 lb (12 kg) and the maximum dough capacity is 39.7 lb (18 kg). Spiral RPM is listed as 77 on 1st speed and 242 on 2nd speed.

2.4 HP at 10 A on 240 V

The motor is listed at 2.4 HP (1800 W) and 10 A on 240 V/60 Hz/1 Ph. The plug is listed as NEMA 6-15 P.

Specifications

Model SPV20
Omcan Item Number 49179
Bowl Capacity 24.3 qt / 23 L
Max Dry Flour Capacity 26.4 lb / 12 kg
Max Dough Capacity 39.7 lb / 18 kg
Bowl RPM 1st Speed 8, 2nd Speed 27
Spiral RPM 1st Speed 77, 2nd Speed 242
Power 2.4 HP / 1800 W
Amps 10 A
Electrical 240 V/60 Hz/1 Ph
Plug NEMA 6-15 P
Bowl Dimensions (Dia. x H) 14.4 inch x 9.6 inch / 365 x 245 mm
Net Dimensions 15.4 inch x 26.8 inch x 26.4 inch / 390 x 680 x 670 mm
Net Weight 148 lb / 67 kg
Shipping Dimensions 17 inch x 30 inch x 34 inch
Shipping Weight 165 lb
Certifications cETLus Certified, ETL Sanitation Certified
Country of Origin Italy
UPC 690207491796

Warranty

Omcan lists a 1 Year Parts Warranty and a 1 Year Labor Warranty.
