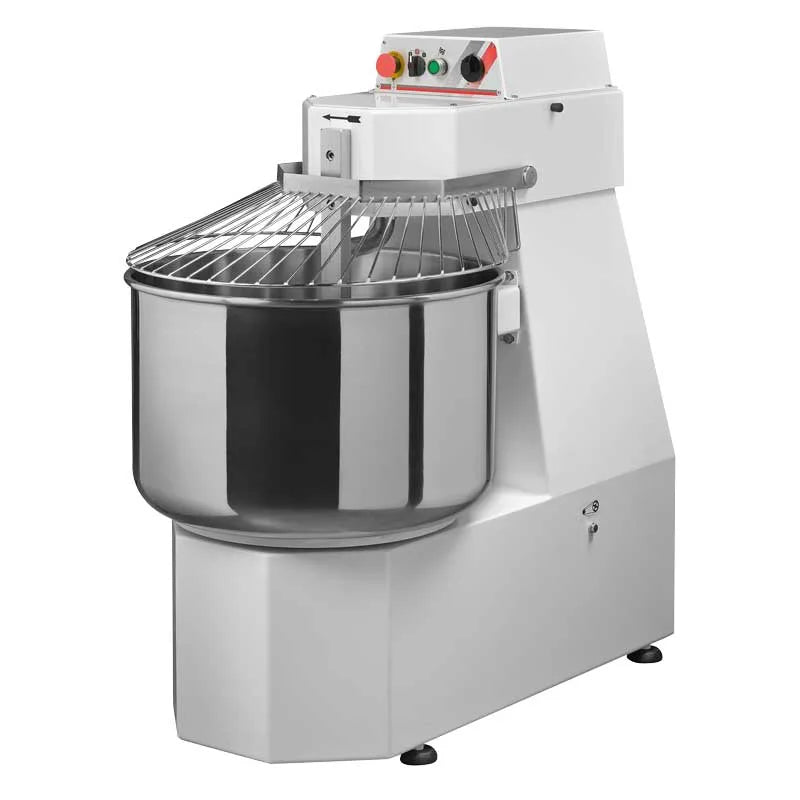

Omcan SP60 2SP Avancini spiral dough mixer 90 qt bowl

Product Description

The Omcan SP60 2SP is an Avancini spiral dough mixer with a 90 qt bowl and a 132 lb dough capacity, running two speeds on a 208V three-phase circuit.

Two Speeds for Mixing and Kneading

A first speed of 7 bowl RPM / 70 spiral RPM for initial mixing and a second speed of 14 bowl RPM / 140 spiral RPM for kneading let an operator slow down for incorporation and speed up for gluten development, a step up from the SP40's single-speed operation.

132 Lb Dough Capacity on a 90 Quart Bowl

The larger bowl and dough capacity make this the step-up model over the 52 qt / 88 lb SP40 for a bakery outgrowing its single-speed mixer's throughput.

Stepping Up to 208V Three Phase

At 2/4 HP and 208V three phase with a NEMA L15-20P plug, this requires three-phase service rather than the SP40's single-phase 220V connection, a wiring difference to confirm before ordering.

Specifications

Model SP60 2SP
Type Spiral Dough Mixer
Bowl Capacity 90 Qt
Max Dough Capacity 132 lb / 60 kg
Bowl Dimensions 21.7 Inch Diameter x 14.2 Inch (551 x 361 mm)
Exterior Dimensions 39 Inch x 23 Inch x 42 Inch (991 x 584 x 1067 mm)
Shipping Weight 534 lb
Electrical 208V / 60Hz / 3Ph
Amperage 10 A / 5.2 A
Power 2 HP / 4 HP (1500 W / 3000 W)
Speeds 2-Speed (Bowl 7/14 RPM, Spiral 70/140 RPM)
Plug NEMA L15-20P
Certifications QPS

Warranty

1 Year Parts Warranty and 1 Year Labor Warranty.
