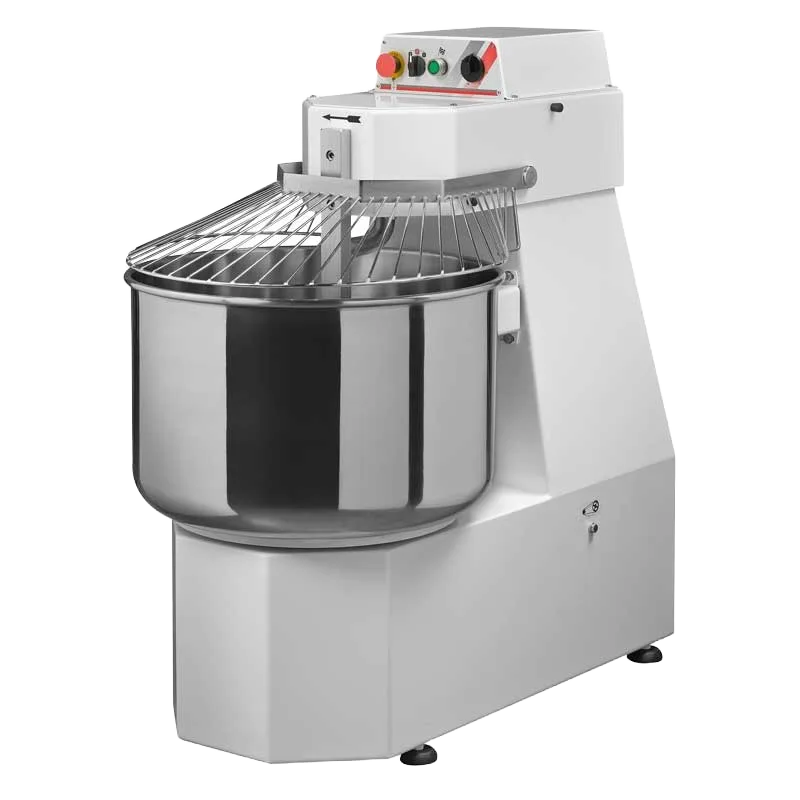

Omcan SP50 2SP Avancini 67 qt spiral dough mixer with 2 speeds

Product Description

The Omcan SP50 2SP is an Avancini 67 qt spiral dough mixer with 2 speeds. It is rated 2/4 HP (1500/3000 W) on 208 V/60 Hz/3 Ph power.

67 Qt Bowl Capacity

The Omcan page lists a bowl capacity of 67 qt and bowl dimensions of 19.7 inch x 12.6 inch (500 x 320 mm). Bowl RPM is listed as 4.5 on 1st speed and 9 on 2nd speed.

Flour and Dough Capacities

The listed maximum dry flour capacity is 69 lb (31 kg) and the maximum dough capacity is 110 lb (50 kg). Spiral RPM is listed as 60 on 1st speed and 120 on 2nd speed.

2/4 HP on 208 V Three Phase

The motor is listed at 2/4 HP (1500/3000 W) on 208 V/60 Hz/3 Ph. The plug is listed as NEMA L15-20 P.

Specifications

Model SP50 2SP
Omcan Item Number 13173
Bowl Capacity 67 qt
Max Dry Flour Capacity 69 lb / 31 kg
Max Dough Capacity 110 lb / 50 kg
Bowl RPM 1st speed 4.5, 2nd speed 9
Spiral RPM 1st speed 60, 2nd speed 120
Power 2/4 HP (1500/3000 W)
Electrical 208 V/60 Hz/3 Ph
Plug NEMA L15-20 P
Bowl Dimensions (Dia. x H) 19.7 inch x 12.6 inch / 500 x 320 mm
Net Dimensions 37 inch x 21 inch x 40.5 inch / 940 x 533 x 1029 mm
Net Weight 407 lb / 184.6 kg
Shipping Dimensions 39 inch x 23 inch x 43 inch
Shipping Weight 425 lb
Certifications QPS Certified
Country of Origin Italy
UPC 690207131739

Warranty

Omcan lists a 1 Year Parts Warranty and a 1 Year Labor Warranty.
