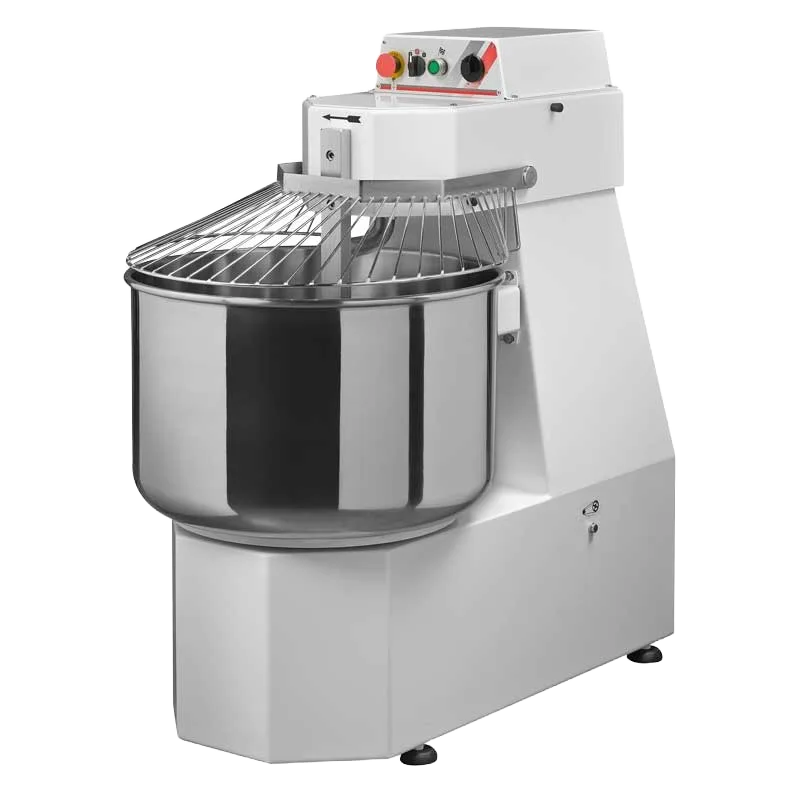

Omcan SP40 Avancini spiral dough mixer 52 qt bowl

Product Description

The Omcan SP40 is an Avancini spiral dough mixer with a 52 qt bowl and an 88 lb dough capacity, running single speed on a 220V circuit.

52 Quart Bowl, 88 Lb Dough Capacity

The bowl and spiral turn together rather than the hook doing all the work against a stationary bowl, which keeps dough from climbing the hook at this capacity, a mechanism suited to bread and pizza dough production at a single-location bakery scale.

A Single Speed at 95 RPM

With one spiral speed of 95 RPM and a bowl speed of 7 RPM, this is the single-speed entry point in the Avancini line, versus the SP60 2SP's two-speed operation for a larger 90 qt bowl.

NEMA 6-15P and a Dedicated 220V Circuit

At 1.5 HP and 5 A on 220V single phase with a NEMA 6-15P plug, this needs a dedicated higher-voltage line rather than a standard household outlet.

Specifications

Model SP40
Type Spiral Dough Mixer
Bowl Capacity 52 Qt
Max Dough Capacity 88 lb / 40 kg
Bowl Dimensions 17.7 Inch Diameter x 12.4 Inch (450 x 315 mm)
Exterior Dimensions 32 Inch x 19 Inch x 37.4 Inch (813 x 483 x 950 mm)
Shipping Weight 295 lb
Electrical 220V / 60Hz / 1Ph
Amperage 5 A
Power 1.5 HP / 1100 W
Speeds Single Speed (Spiral 95 RPM, Bowl 7 RPM)
Plug NEMA 6-15P
Certifications QPS

Warranty

1 Year Parts Warranty and 1 Year Labor Warranty.
