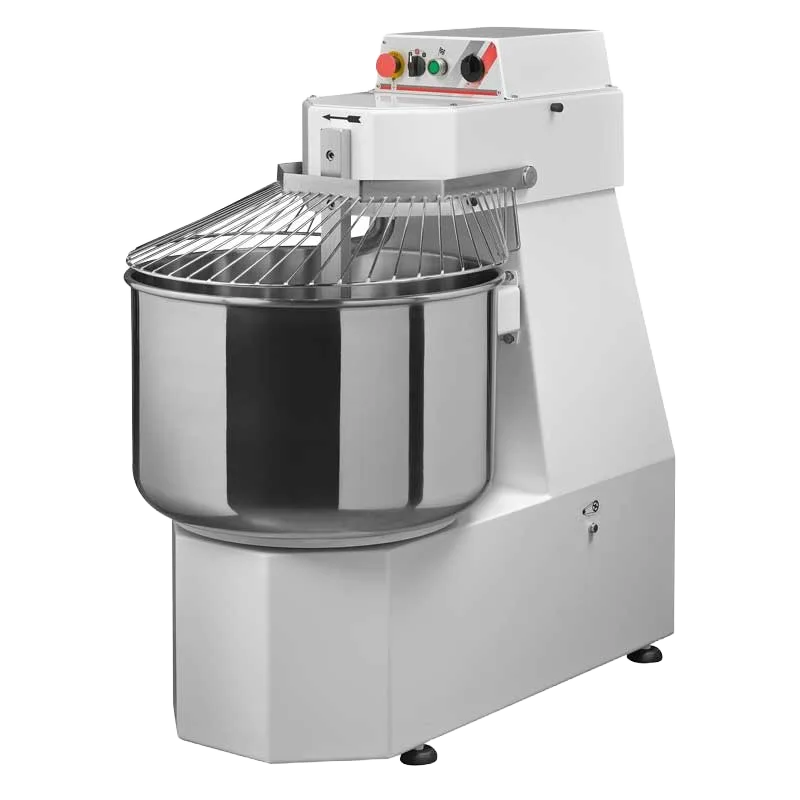

Omcan SP40 2SP Avancini 52 qt spiral dough mixer with 2 speeds

Product Description

The Omcan SP40 2SP is an Avancini 52 qt spiral dough mixer with 2 speeds. It is rated 1.5/1.9 HP (1100/1400 W) on 208 V/60 Hz/3 Ph power.

52 Qt Bowl Capacity

The Omcan page lists a bowl capacity of 52 qt and bowl dimensions of 17.7 inch x 12.4 inch (450 x 315 mm). Bowl RPM is listed as 6 on 1st speed and 12 on 2nd speed.

Flour and Dough Capacities

The listed maximum dry flour capacity is 55 lb (25 kg) and the maximum dough capacity is 88 lb (40 kg). Spiral RPM is listed as 64 on 1st speed and 128 on 2nd speed.

1.5/1.9 HP on 208 V Three Phase

The motor is listed at 1.5/1.9 HP (1100/1400 W) and 3.8/4.8 A on 208 V/60 Hz/3 Ph. The plug is listed as NEMA L15-20 P.

Specifications

Model SP40 2SP
Omcan Item Number 13172
Bowl Capacity 52 qt
Max Dry Flour Capacity 55 lb / 25 kg
Max Dough Capacity 88 lb / 40 kg
Bowl RPM 1st Speed 6, 2nd Speed 12
Spiral RPM 1st Speed 64, 2nd Speed 128
Power 1.5/1.9 HP (1100/1400 W)
Amps 3.8/4.8 A
Electrical 208 V/60 Hz/3 Ph
Plug NEMA L15-20 P
Bowl Dimensions (Dia. x H) 17.7 inch x 12.4 inch / 450 x 315 mm
Net Dimensions 32 inch x 19 inch x 37.4 inch / 813 x 483 x 950 mm
Net Weight 273 lb / 123.8 kg
Shipping Dimensions 34 inch x 21 inch x 39 inch
Shipping Weight 295 lb
Certifications QPS Certified
Country of Origin Italy
UPC 690207131722

Warranty

Omcan lists a 1 Year Parts Warranty and a 1 Year Labor Warranty.
