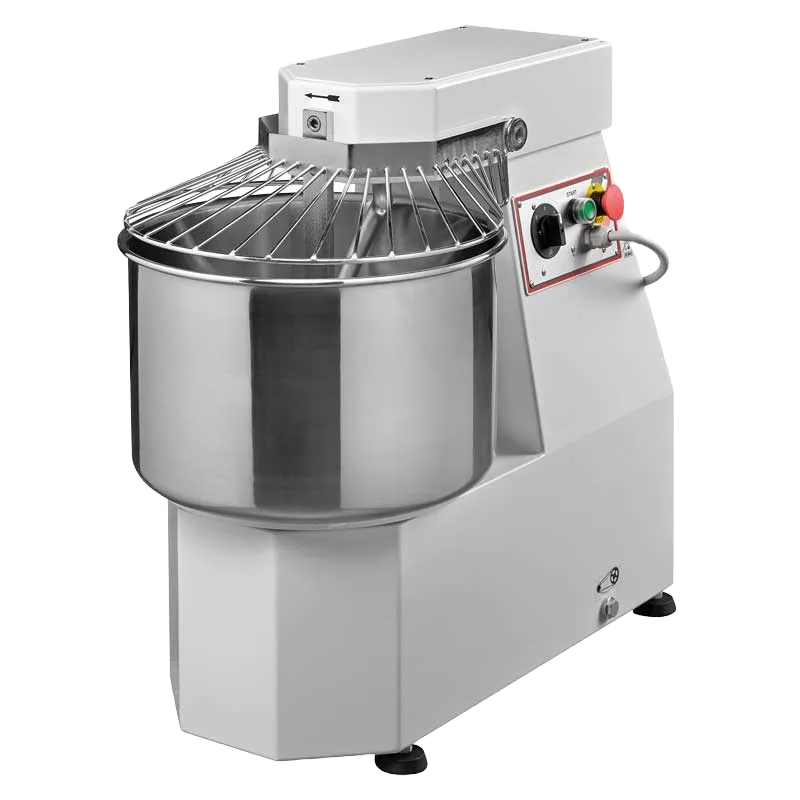

Omcan SP20 2SP 24 qt Avancini spiral dough mixer

Product Description

The Omcan SP20 2SP is an Avancini spiral dough mixer with a 24 qt bowl and two speeds on a 208 V/60 Hz/3 Ph supply.

24 Qt Bowl with 24 lb Flour and 40 lb Dough Capacities

Bowl capacity is listed as 24 qt, maximum dry flour capacity as 24 lb / 11 kg and maximum dough capacity as 40 lb / 17 kg. Bowl dimensions are listed as 14.4 Inch diameter x 9.64 Inch height (366 x 245 mm).

Two Speeds Listed for Bowl and Spiral

Bowl speed is listed as 6 RPM on the 1st speed and 12 RPM on the 2nd speed. Spiral speed is listed as 60 RPM on the 1st speed and 120 RPM on the 2nd speed. The Omcan page lists a grated lid, stainless steel construction, fixed stainless steel high-strength spirals and a safety device that stops the machine when the bowl cover is lifted.

208 V Three Phase on a NEMA L15-20 P Plug

Electrical is listed as 208 V/60 Hz/3 Ph with amperage of 3.8 A and 2.6 A and a NEMA L15-20 P plug. Net weight is listed as 161 lb / 73 kg and shipping weight as 175 lb.

Specifications

Model SP20 2SP
Series Avancini
Type Spiral Dough Mixer, 2 Speed
Bowl Capacity 24 qt
Max Dry Flour Capacity 24 lb / 11 kg
Max Dough Capacity 40 lb / 17 kg
Bowl RPM 1st Speed 6, 2nd Speed 12
Spiral RPM 1st Speed 60, 2nd Speed 120
Amps 3.8 A and 2.6 A
Electrical 208 V/60 Hz/3 Ph
Plug NEMA L15-20 P
Bowl Dimensions (Dia. x H) 14.4 x 9.64 Inch / 366 x 245 mm
Net Weight 161 lb / 73 kg
Net Dimensions (WDH) 27 x 15.4 x 26.4 Inch / 686 x 391 x 671 mm
Shipping Dimensions 29 x 17 x 29 Inch
Shipping Weight 175 lb
Country of Origin Italy
UPC 690207131661

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
