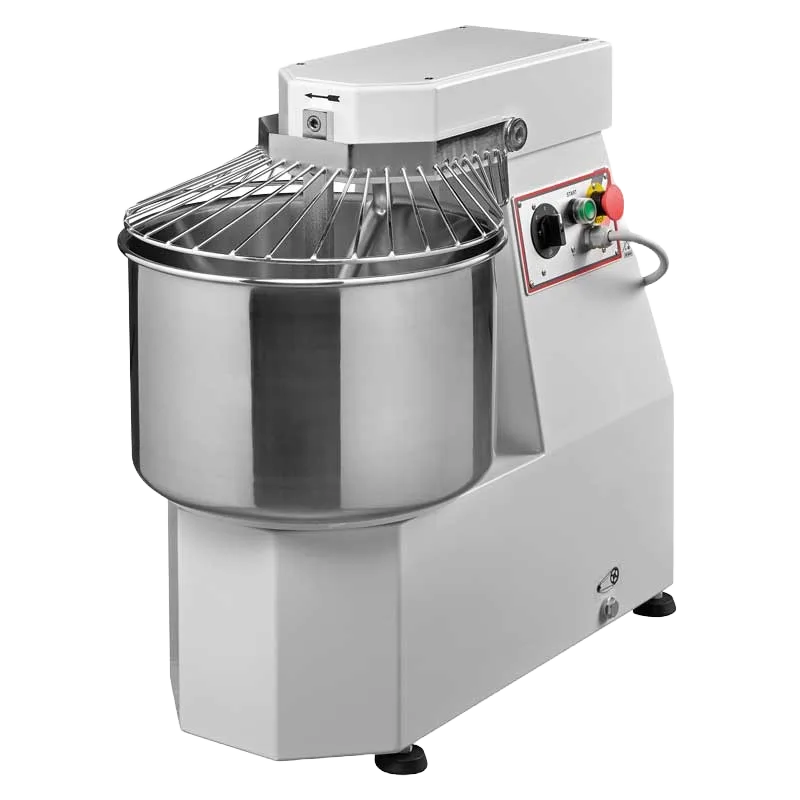

Omcan SP20 24 qt Avancini spiral dough mixer

Product Description

The Omcan SP20 is an Avancini spiral dough mixer with a 24 qt bowl and one speed, rated 1.2 hp / 900 W on a 220V / 60Hz / 1Ph supply.

24 Qt Bowl with 24 lb Flour and 40 lb Dough Capacities

Bowl capacity is listed as 24 QT, maximum dry flour capacity as 24 lb / 11 kg and maximum dough capacity as 40 lb / 17 kg. Bowl dimensions are listed as 14.4 Inch diameter x 9.64 Inch height (366 x 245 mm).

Single Speed at 9 RPM Bowl and 103 RPM Spiral

Bowl speed is listed as 9 RPM and spiral speed as 103 RPM on the 1st speed. The Omcan page lists a grated lid, stainless steel construction, fixed stainless steel high-strength spirals and a safety device that stops the machine when the bowl cover is lifted.

220V Single Phase on a NEMA 6-15 P Plug

Electrical is listed as 220V / 60Hz / 1Ph with amperage of 4 A and a NEMA 6-15 P plug. Net weight is listed as 161 lb / 73 kg and shipping weight as 175 lb.

Specifications

Model SP20
Series Avancini
Type Spiral Dough Mixer, 1 Speed
Bowl Capacity 24 QT
Max Dry Flour Capacity 24 lb / 11 kg
Max Dough Capacity 40 lb / 17 kg
Bowl RPM 1st Speed 9
Spiral RPM 1st Speed 103
Power 1.2 hp / 900 W
Amps 4 A
Electrical 220V / 60Hz / 1Ph
Plug NEMA 6-15 P
Bowl Dimensions (Dia. x H) 14.4 x 9.64 Inch / 366 x 245 mm
Net Weight 161 lb / 73 kg
Net Dimensions (WDH) 27 x 15.4 x 26.4 Inch / 686 x 391 x 671 mm
Shipping Dimensions 29 x 17 x 29 Inch
Shipping Weight 175 lb
Certifications QPS Certified
Country of Origin Italy
UPC 690207131630

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
