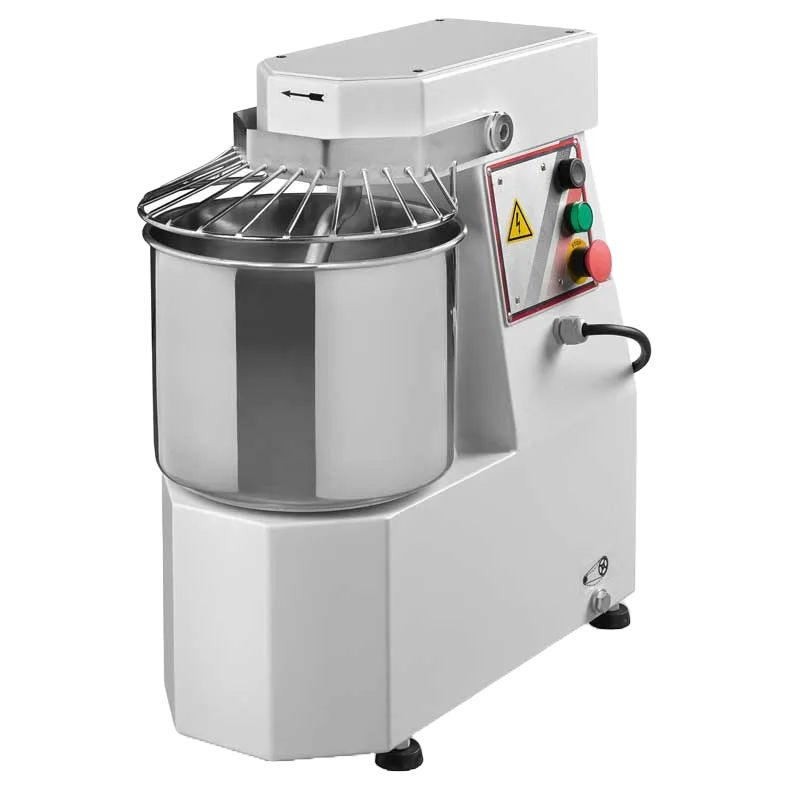

Omcan SP10 2SP 13 qt Avancini spiral dough mixer

Product Description

The Omcan SP10 2SP is an Avancini spiral dough mixer with a 13 qt bowl and two speeds, rated 0.4 - 0.6 hp / 300-450 W on a 208V/60Hz/3Ph supply.

13 Qt Bowl with 14 lb Flour and 22 lb Dough Capacities

Bowl capacity is listed as 13 qt, maximum dry flour capacity as 14 lb / 6 kg and maximum dough capacity as 22 lb / 10 kg. Bowl dimensions are listed as 10 Inch diameter x 8.26 Inch height (254 x 210 mm).

Two Speeds Listed for Bowl and Spiral

Bowl speed is listed as 6 RPM on the 1st speed and 12 RPM on the 2nd speed. Spiral speed is listed as 63 RPM on the 1st speed and 126 RPM on the 2nd speed. The Omcan page lists a grated lid, stainless steel construction, fixed stainless steel high-strength spirals and a mechanism that halts operation when the bowl cover is lifted.

208V Three Phase on a NEMA L15-20 P Plug

Electrical is listed as 208V / 60Hz / 3Ph with amperage of 1 A - 1.56 A and a NEMA L15-20 P plug. Net weight is listed as 103 lb (46.7 kg) and shipping weight as 109 lb.

Specifications

Model SP10 2SP
Series Avancini
Type Spiral Dough Mixer, 2 Speed
Bowl Capacity 13 qt
Max Dry Flour Capacity 14 lb / 6 kg
Max Dough Capacity 22 lb / 10 kg
Bowl RPM 1st Speed 6, 2nd Speed 12
Spiral RPM 1st Speed 63, 2nd Speed 126
Power 0.4 - 0.6 hp / 300-450 W
Amps 1 A - 1.56 A
Electrical 208V / 60Hz / 3Ph
Plug NEMA L15-20 P
Bowl Dimensions (Dia. x H) 10 x 8.26 Inch / 254 x 210 mm
Net Weight 103 lb (46.7 kg)
Net Dimensions (WDH) 20.5 x 11 x 23 Inch (521 x 279 x 584 mm)
Shipping Dimensions 22 x 13 x 25 Inch
Shipping Weight 109 lb
Country of Origin Italy
UPC 690207186371

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
