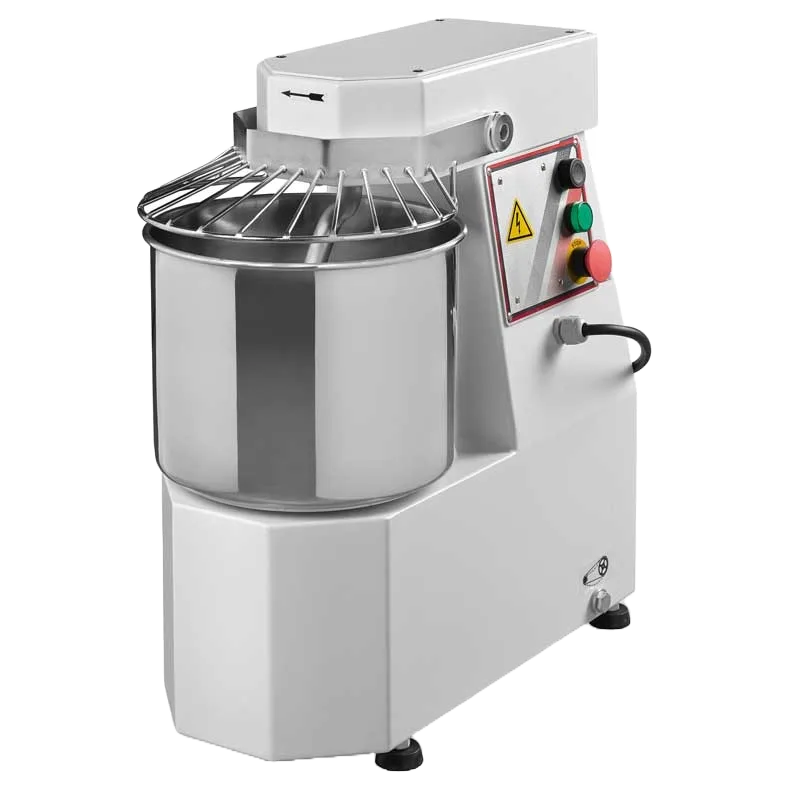

Omcan SP10 208/3 13 qt Avancini spiral dough mixer

Product Description

The Omcan SP10 208/3 is an Avancini spiral dough mixer with a 13 qt bowl and one speed, rated 0.75 HP / 550 W on a 208 V/60 Hz/3 Ph supply.

13 Qt Bowl with 14 lb Flour and 22 lb Dough Capacities

Bowl capacity is listed as 13 qt, maximum dry flour capacity as 14 lb / 6 kg and maximum dough capacity as 22 lb / 10 kg. Bowl dimensions are listed as 10 Inch diameter x 8.26 Inch height (254 x 210 mm).

Single Speed at 11 RPM Bowl and 126 RPM Spiral

Bowl speed is listed as 11 RPM and spiral speed as 126 RPM on the 1st speed. The Omcan page lists fixed stainless steel high-strength spirals and a safety device that stops the machine when the bowl cover is lifted.

208 V Three Phase on a NEMA L15-20 P Plug

Electrical is listed as 208 V/60 Hz/3 Ph with amperage of 2.5 A and a NEMA L15-20 P plug. Net weight is listed as 103 lb / 46.7 kg and shipping weight as 109 lb.

Specifications

Model SP10 208/3
Series Avancini
Type Spiral Dough Mixer, 1 Speed
Bowl Capacity 13 qt
Max Dry Flour Capacity 14 lb / 6 kg
Max Dough Capacity 22 lb / 10 kg
Bowl RPM 1st Speed 11
Spiral RPM 1st Speed 126
Power 0.75 HP / 550 W
Amps 2.5 A
Electrical 208 V/60 Hz/3 Ph
Plug NEMA L15-20 P
Bowl Dimensions (Dia. x H) 10 x 8.26 Inch / 254 x 210 mm
Net Weight 103 lb / 46.7 kg
Net Dimensions (WDH) 20.5 x 11 x 23 Inch / 521 x 279 x 584 mm
Shipping Dimensions 22 x 13 x 25 Inch
Shipping Weight 109 lb
Country of Origin Italy
UPC 690207131623

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
