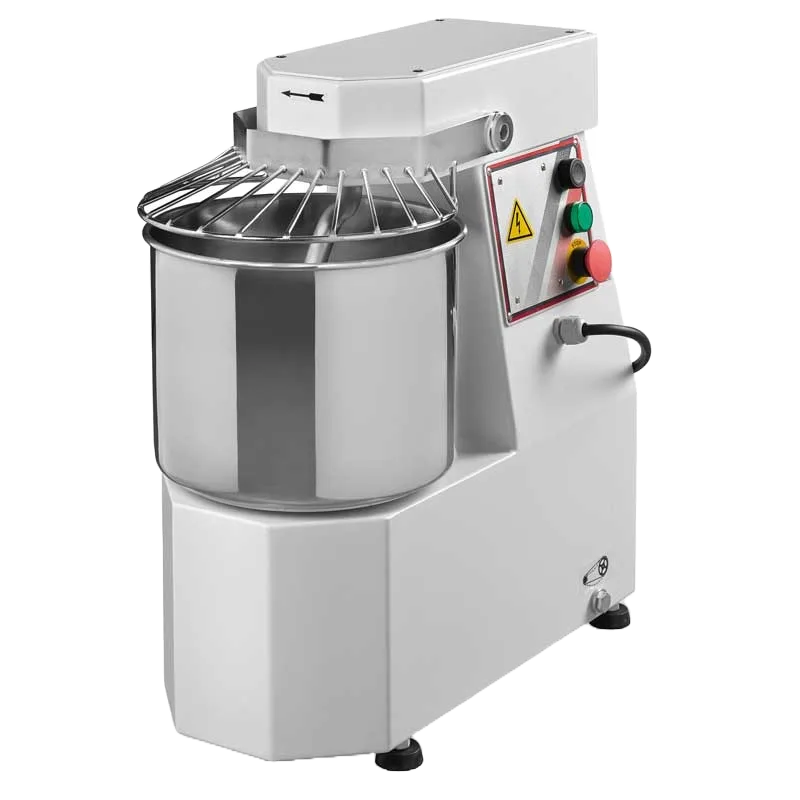

Omcan SP10 Avancini spiral dough mixer 13 qt bowl

Product Description

The Omcan SP10 is an Avancini spiral dough mixer with a 13 qt bowl and 22 lb dough capacity, running single speed on a 220V circuit.

13 Qt Bowl, the Entry Point in the Avancini Spiral Line

Against the 52 qt bowl and 88 lb capacity of the SP40 and the 90 qt, two-speed SP60 2SP also in this catalog, the SP10 is sized for a single-location bakery testing spiral mixing or running smaller daily batches rather than volume production.

A Bowl-Cover Safety Interlock

The machine stops automatically when the bowl cover is lifted, a safety device built into the fixed stainless steel spiral design standard across the Avancini line.

220V Single Phase on a NEMA 6-15P Plug

At 0.75 HP and 2.5 A on a 220V single-phase circuit, this needs a dedicated higher-voltage line rather than a standard household outlet.

Specifications

Model SP10 220/1
Type Spiral Dough Mixer
Bowl Capacity 13 Qt
Max Dough Capacity 22 lb / 10 kg
Bowl Dimensions 10 Inch Diameter x 8.26 Inch (254 x 210 mm)
Exterior Dimensions 20.5 Inch x 11 Inch x 23 Inch (521 x 279 x 584 mm)
Shipping Weight 109 lb
Electrical 220V / 60Hz / 1Ph
Amperage 2.5 A
Power 0.75 HP / 550 W
Plug NEMA 6-15P

Warranty

1 Year Parts Warranty and 1 Year Labor Warranty.
