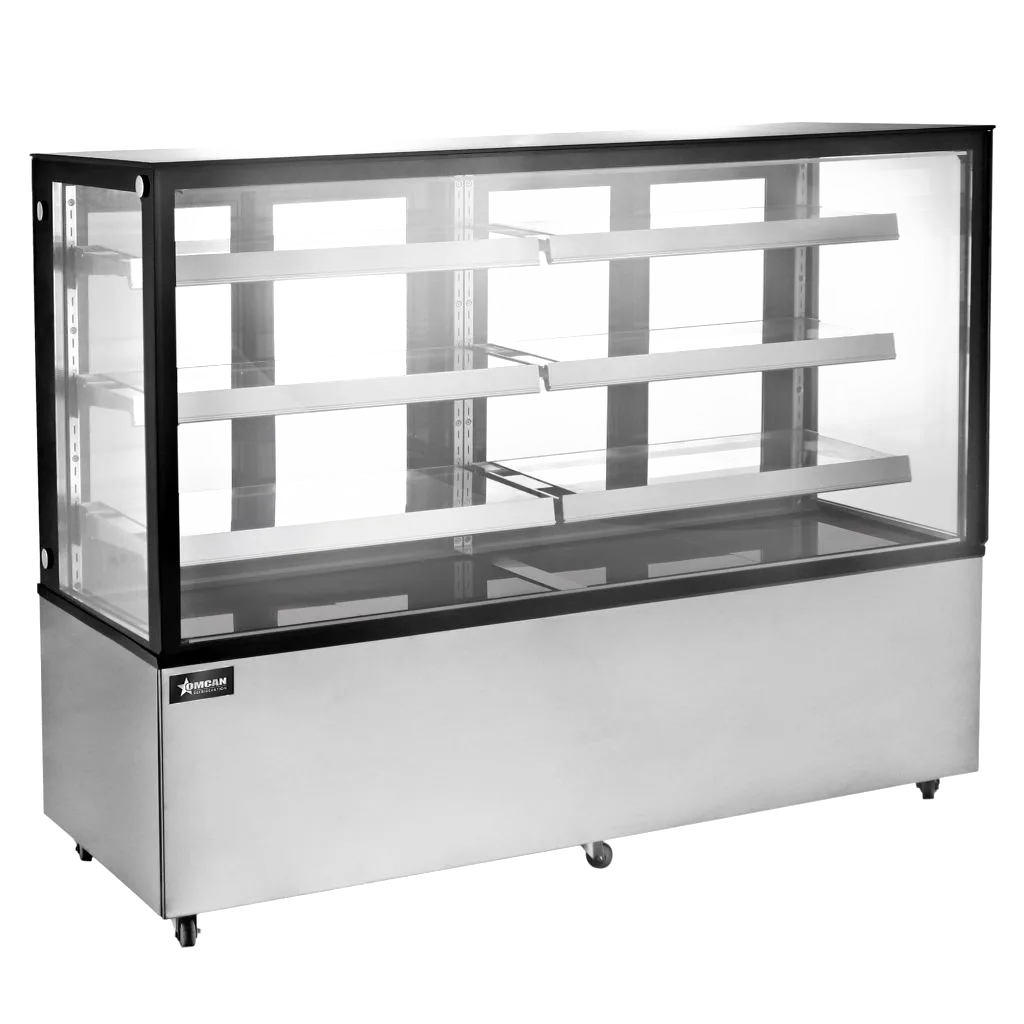

Omcan RS-CN-0571-S 72 inch square glass refrigerated floor display case

Product Description

The Omcan RS-CN-0571-S is a 72 inch three-shelf square glass refrigerated floor display case with a listed capacity of 28.61 cu. ft. (810 L) and a stainless steel base.

Square Glass at 72 Inches Wide

Omcan lists four-sided double glass with adjustable glass shelves and LED illumination under each shelf. The cabinet measures 71.9 inches wide, 26.8 inches deep and 55 inches high.

7.7 Amps with a 3/8 HP Compressor

The unit is rated at 7.7 A on 110V/60 Hz/1 Ph with a NEMA 5-15 P plug, a listed power of 625 W and a 3/8 HP (510 W) compressor. It uses R290 refrigerant with a ventilated cooling system, digital temperature controller and display, and automatic defrost, holding 32 to 54 F.

Capacity Against the Curved Glass RS-CN-0571

The square glass profile lists 28.61 cu. ft. in the same 71.9 inch width where the curved glass RS-CN-0571 lists 22.95 cu. ft. Net weight is listed at 540.1 lb.

Specifications

Model RS-CN-0571-S
Type Square Glass Refrigerated Floor Display Case
Capacity 28.61 cu. ft. / 810 L
Shelves 3, adjustable glass
Exterior Dimensions (W x D x H) 71.9 x 26.8 x 55 Inch
Net Weight 540.1 lb
Shipping Dimensions 76 x 30 x 64 Inch
Shipping Weight 639 lb
Electrical 110V / 60 Hz / 1 Ph
Power 625 W
Compressor 3/8 HP / 510 W
Amperage 7.7 A
Plug NEMA 5-15 P
Refrigerant R290
Temperature Range 32-54 F
Certifications cETLus, ETL Sanitation
UPC 690207445058

Warranty

Omcan lists a 2 year parts warranty, a 2 year labor warranty, and a 5 year compressor warranty.
