Product Description

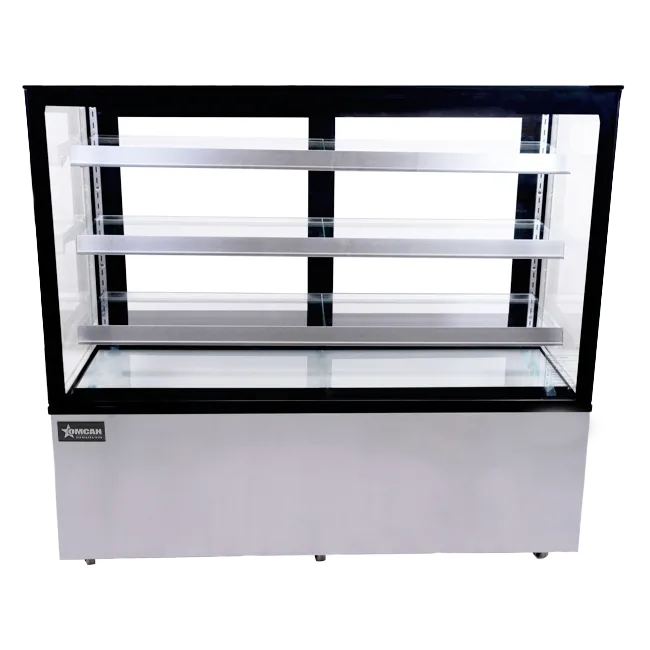

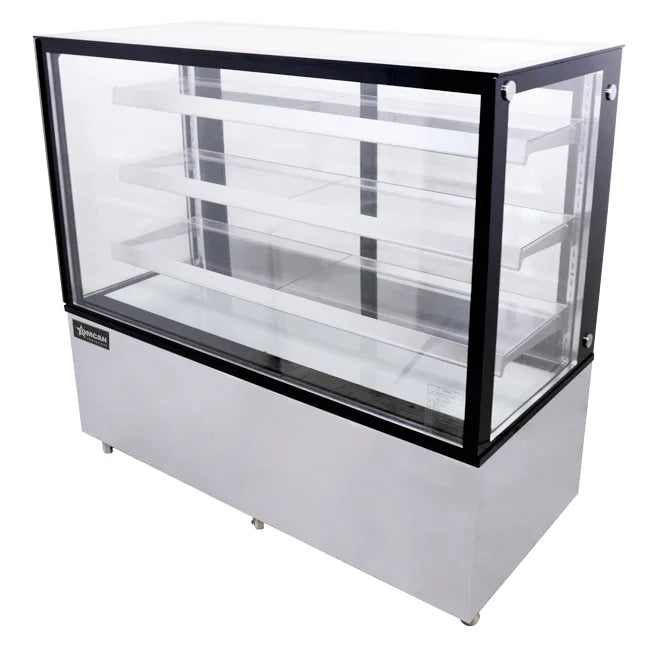

The Omcan RS-CN-0471-S is a 60 inch three-shelf square glass refrigerated floor display case with a listed capacity of 23.66 cu. ft. (670 L) and a stainless steel base.

Square Glass at 60 Inches Wide

Omcan lists four-sided double glass with adjustable chrome-plated shelves and LED illumination under each shelf. The cabinet measures 60 inches wide, 26.8 inches deep and 55.5 inches high with a 57 inch interior width.

7.1 Amps with a 3/8 HP Compressor

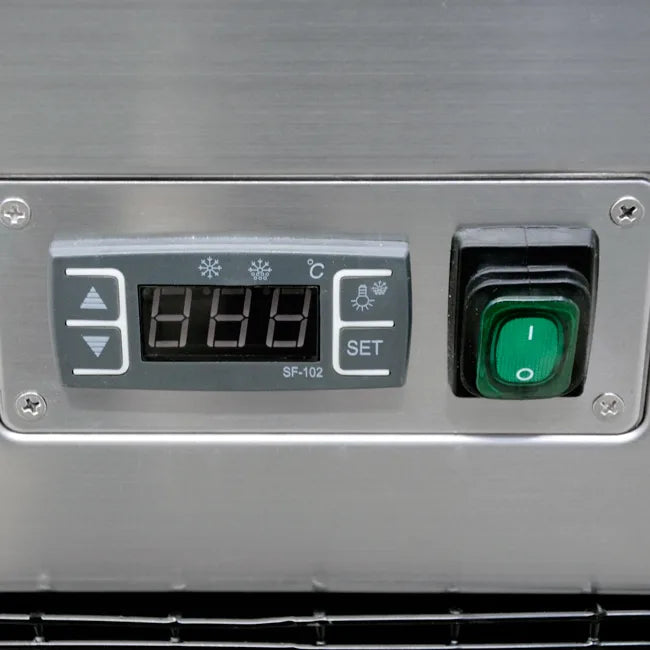

The unit is rated at 7.1 A on 110V/60 Hz/1 Ph with a NEMA 5-15 P plug, a listed power of 605 W and a 3/8 HP (510 W) compressor. It uses R290 refrigerant with a ventilated cooling system, digital temperature controller and display, and automatic defrost, holding 32 to 54 F.

Shelf Depths of 12 and 14.6 Inches

Omcan lists two shelf sizes, 55.5 by 12 inches and 55.5 by 14.6 inches, with LED lamp power of 50 W. Net weight is listed at 505 lb.

Specifications

Model RS-CN-0471-S
Type Square Glass Refrigerated Floor Display Case
Capacity 23.66 cu. ft. / 670 L
Shelves 3, adjustable chrome-plated
Shelf Dimensions 55.5 x 12 Inch; 55.5 x 14.6 Inch
Exterior Dimensions (W x D x H) 60 x 26.8 x 55.5 Inch
Interior Dimensions (W x D x H) 57 x 23 x 33 Inch
Net Weight 505 lb
Shipping Dimensions 64 x 30 x 64 Inch
Shipping Weight 556 lb
Electrical 110V / 60 Hz / 1 Ph
Power 605 W
Lamp Power 50 W
Compressor 3/8 HP / 510 W
Amperage 7.1 A
Plug NEMA 5-15 P
Refrigerant R290
Temperature Range 32-54 F
Certifications cETLus, ETL Sanitation
UPC 690207443849

Warranty

Omcan lists a 2 year parts warranty, a 2 year labor warranty, and a 5 year compressor warranty.
