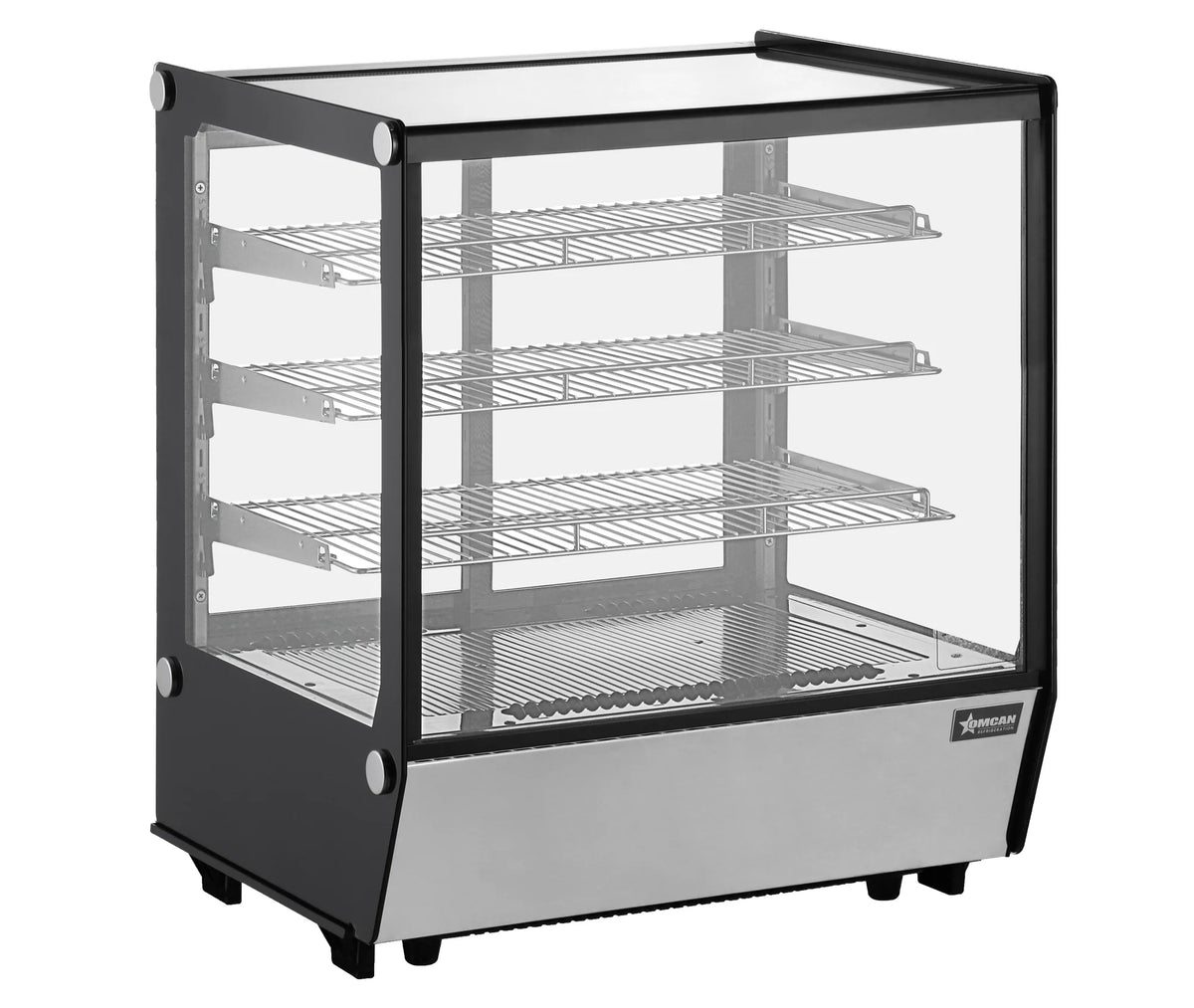

Omcan RS-CN-0145S-5 square glass countertop refrigerated showcase three shelf display

Product Description

The Omcan RS-CN-0145S-5 is a 28 inch countertop refrigerated showcase with a square glass front, three adjustable shelves, and 5.12 cu ft (145 L) of merchandising capacity behind two sliding doors.

Square Glass Profile for a Traditional Deli or Bakery Case Look

The flat square-glass front reads as a more traditional deli or bakery case than a curved-glass model, and the straight panels make it easier to line up against a counter or another square case in a multi-unit lineup. Interior LED lighting keeps product visible from the front.

Sibling to the Curved Glass RC-CN-0145C at the Same Footprint

Omcan sells this same 28 inch, three-shelf, roughly 5.1 cu ft case in a curved glass version (RC-CN-0145C) that draws 320W against this square model's 350W. Operators choosing between the two are trading a flat, traditional case front against a slightly rounder curved-glass presentation; capacity and shelf count are effectively identical either way.

R290 Refrigerant on a Standard 110-120V Circuit

The unit runs on R290 refrigerant and draws 3.2A at 110-120V, so it drops onto a standard countertop circuit without special wiring. The 26.8 by 19.1 by 23.6 inch interior across three adjustable shelves is identical to its curved-glass sibling, so the choice between the two comes down to case profile rather than capacity.

Specifications

Model RS-CN-0145S-5
Type Countertop Refrigerated Showcase, Square Glass
Capacity 5.12 Cu Ft (145 L)
Shelves 3, Adjustable
Exterior Dimensions 27.7 Inch W x 23 Inch D x 34.9 Inch H
Interior Dimensions 26.8 Inch x 19.1 Inch x 23.6 Inch
Shipping Weight 163.1 Lb
Electrical 110-120V/60Hz/1Ph
Wattage 350W (Unit), 3.2W (Lamp)
Amperage 3.2A
Plug NEMA 5-15P
Refrigerant R290
Temperature Range 35.6 To 46 F (2 To 8 C)
Certifications cETLus, ETL Sanitation

Warranty

Omcan covers the RS-CN-0145S-5 with 1 year parts, 1 year labor, and a 5 year compressor warranty.
