Product Description

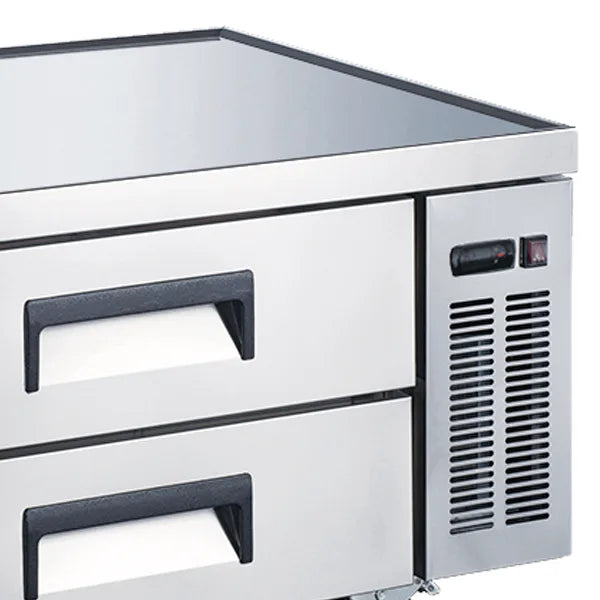

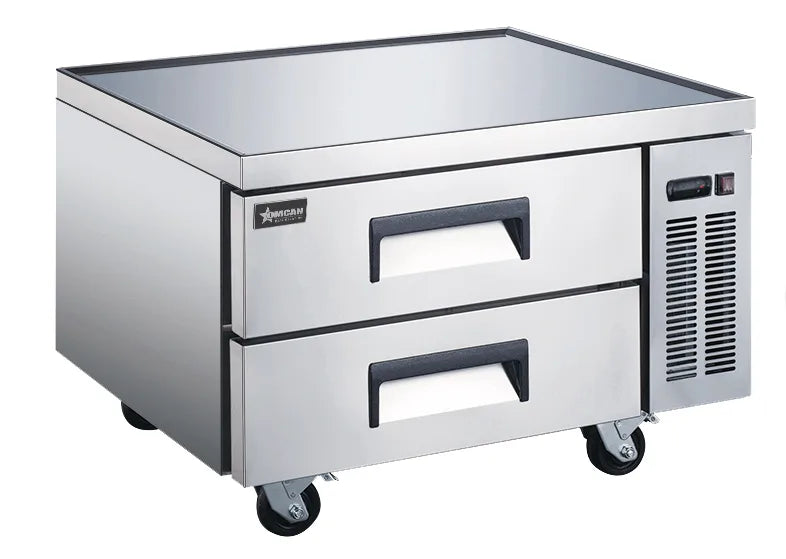

The Omcan RE-CN-0036-C is a 36 inch two-drawer refrigerated chef base with a listed capacity of 5.7 cu. ft. (161 L) and 304 stainless steel interior and exterior.

Two Drawers Sized for GN Pans

Omcan lists two drawers with a pan capacity of one full size 12 by 20 by 4 inch GN pan and three 1/6 size 6 by 6 by 4 inch pans. The unit is 36 inches wide, 32 inches deep and 25 inches high on 4 casters.

2.1 Amps on a Standard Plug

The unit is rated 1/6 HP at 2.1 A on 110V/60 Hz/1 Ph with a NEMA 5-15 P plug and a 7.4 ft cord. It uses R290 refrigerant and holds 33 to 41 F with electronic temperature control.

Service Access and Drawer Hardware

Omcan lists heavy-duty drawer tracks and an accessible condenser coil for maintenance.

Specifications

Model RE-CN-0036-C
Type Refrigerated Chef Base
Capacity 5.7 cu. ft. / 161 L
Drawers 2
Pan Capacity 1 full size 12 x 20 x 4 Inch and 3 x 1/6 size 6 x 6 x 4 Inch
Exterior Dimensions (W x D x H) 36 x 32 x 25 Inch
Net Weight 154 lb
Shipping Dimensions 48 x 40 x 34 Inch
Shipping Weight 198 lb
Electrical 110V / 60 Hz / 1 Ph
Power 1/6 HP
Amperage 2.1 A
Plug NEMA 5-15 P
Cord Length 7.4 ft
Refrigerant R290
Temperature Range 33-41 F
Casters 4
Certifications cETLus, ETL Sanitation
UPC 690207500702

Warranty

Omcan lists a 2 year parts warranty, a 2 year labor warranty, and a 5 year compressor warranty.
