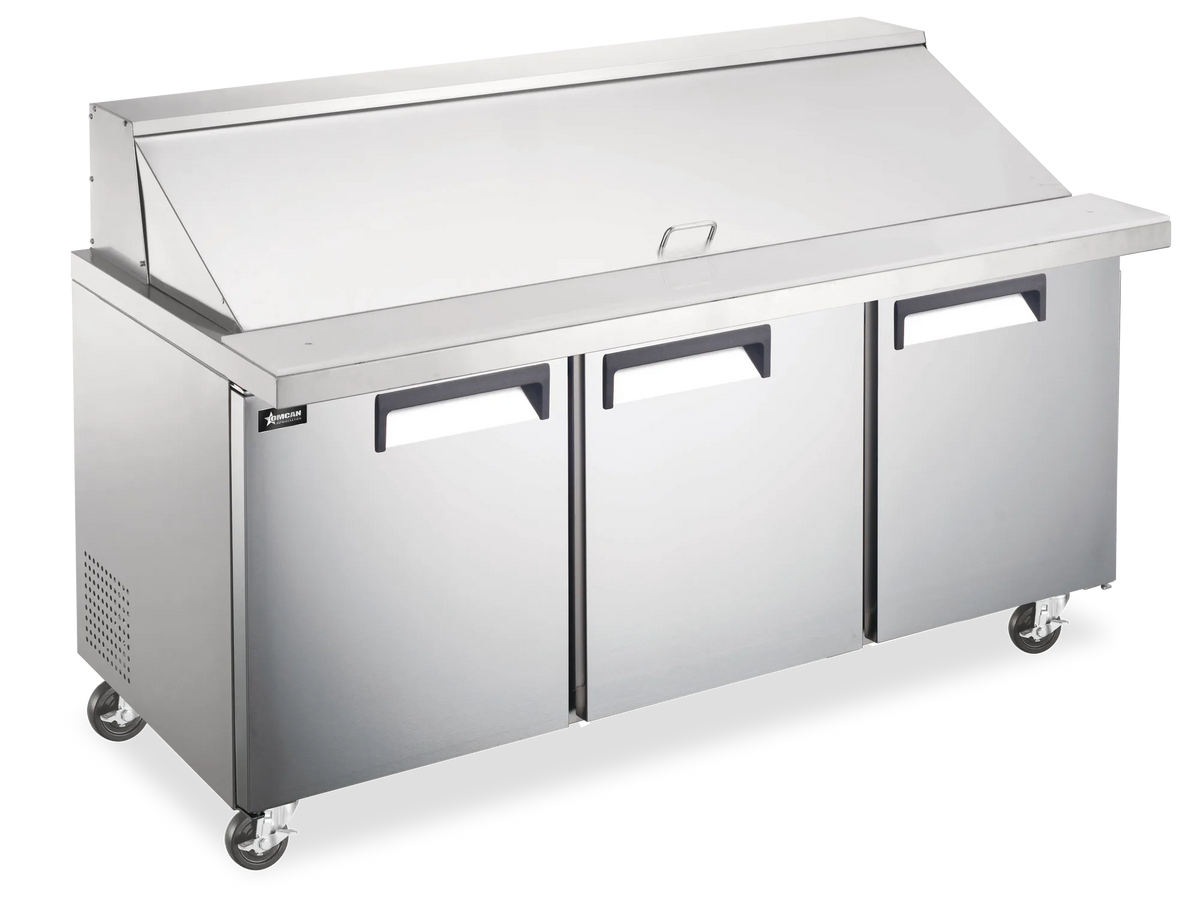

Omcan PT-CN-1787-M-HC 71 inch three door stainless steel mega top refrigerated prep table

Product Description

The Omcan PT-CN-1787-M-HC is a 71 inch three-door mega top refrigerated prep table with a 19.5 cu ft (553 L) net volume. It uses R290 refrigerant and runs on 115V.

Thirty Pan Positions on the Mega Top Rail

Omcan lists an insert capacity of thirty 1/6 pans, a 10 mm thick cutting board, three doors, and three shelves rated for 77.2 lb each. Interior dimensions are 66.6 x 23.8 x 23.5 inches.

115V at 7.8 A

Omcan lists 115V, 60Hz, single phase, 7.8 A and a 1 hp rating, with a NEMA 5-15P plug. The temperature range is 33F to 41F (0.5C to 5C).

Footprint and Shipping Weight

The exterior measures 70.4 x 34 x 45.9 inches. Omcan lists a shipping weight of 577.6 lb with shipping dimensions of 75.6 x 39.2 x 49 inches. The net weight printed on this page is not consistent with the size of the cabinet, so it is omitted here.

Specifications

Model PT-CN-1787-M-HC
Type Mega Top Refrigerated Prep Table
Net Volume 19.5 cu ft (553 L)
Doors 3
Shelves 3, 77.2 lb (35 kg) each
Pan Capacity 30 x 1/6 pans
Cutting Board 10 mm thick
Exterior Dimensions 70.4 x 34 x 45.9 inches (1787 x 864 x 1166 mm)
Interior Dimensions 66.6 x 23.8 x 23.5 inches (1691 x 605 x 597 mm)
Shipping Weight 577.6 lb
Shipping Dimensions 75.6 x 39.2 x 49 inches
Electrical 115V / 60Hz / 1 Ph
Amperage 7.8 A
Power 1 hp
Plug NEMA 5-15P
Refrigerant R290
Temperature Range 33F to 41F (0.5C to 5C)
Certifications cETLus, ETL Sanitation
UPC 690207501303

Warranty

Omcan lists a 2 year parts warranty, a 2 year labor warranty, and a 5 year compressor warranty.
