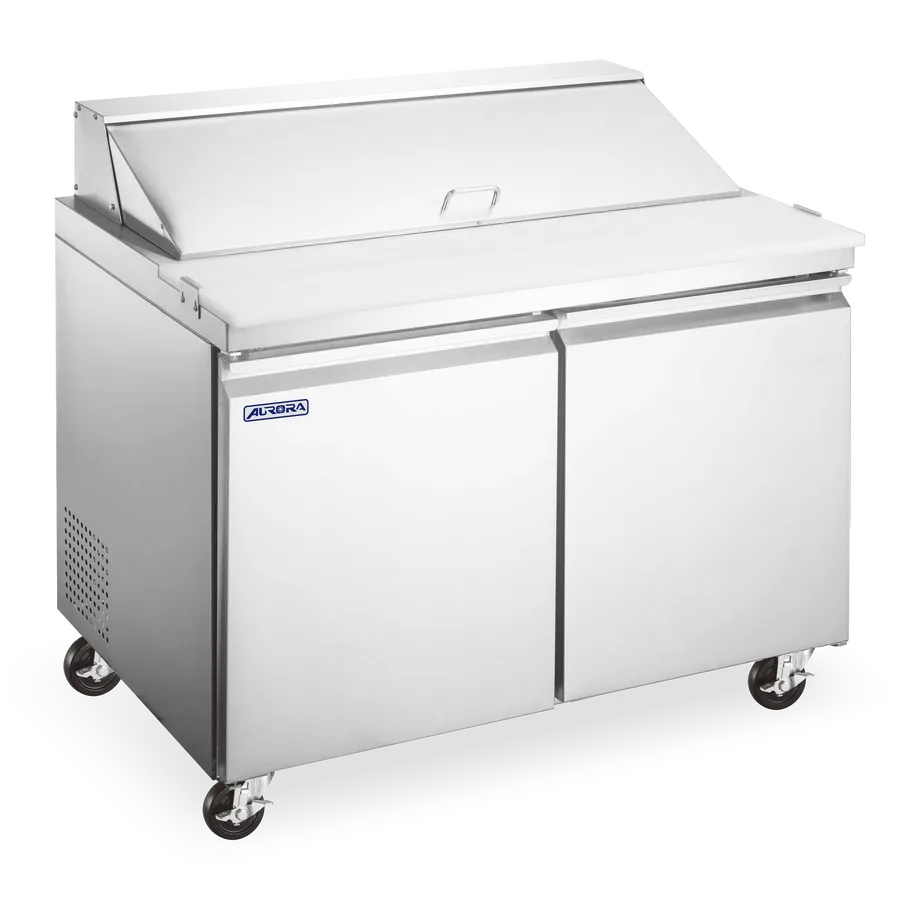

Omcan PT-CN-0920E-M-HC Aurora 36 inch two door mega top refrigerated prep table

Product Description

The Omcan PT-CN-0920E-M-HC is a 36 inch two-door mega top refrigerated prep table in the Aurora line with a 9.1 cu ft (258 L) capacity. It uses R290 refrigerant and runs on 110-120V.

Fifteen Pan Positions and Self-Closing Doors

Omcan lists two self-closing solid swing doors, two plastic coated shelves rated for 88 lb each, and an insert capacity of fifteen 1/6 pans. Interior dimensions are 33 x 19.8 x 23.5 inches, and the cabinet sits on four casters.

110-120V at 420 W

Omcan lists 110-120V, 60Hz, single phase and 420 W, with a NEMA 5-15P plug. The cabinet uses ventilated cooling with automatic defrosting, a digital temperature controller and cyclopentane insulation, and the temperature range is 33F to 40F (0.5C to 4.4C). The amperage printed on the Omcan page is not consistent with the listed wattage, so it is omitted here.

Footprint and Weight

The exterior measures 36.2 x 34 x 41.5 inches. Omcan lists a net weight of 242.5 lb and a shipping weight of 309 lb, with shipping dimensions of 41 x 39 x 46 inches.

Specifications

Model PT-CN-0920E-M-HC
Series Aurora
Type Mega Top Refrigerated Prep Table
Capacity 9.1 cu ft (258 L)
Doors 2 solid swing doors, self-closing
Shelves 2 plastic coated, 88 lb (40 kg) each
Pan Capacity 15 x 1/6 pans
Exterior Dimensions 36.2 x 34 x 41.5 inches (920 x 864 x 1055 mm)
Interior Dimensions 33 x 19.8 x 23.5 inches (837 x 504 x 597 mm)
Net Weight 242.5 lb (110 kg)
Shipping Weight 309 lb
Shipping Dimensions 41 x 39 x 46 inches
Electrical 110-120V / 60Hz / 1 Ph
Power 420 W
Plug NEMA 5-15P
Refrigerant R290
Cooling System Ventilated
Temperature Range 33F to 40F (0.5C to 4.4C)
Temperature Controller Digital
Defrost Automatic
Insulation Cyclopentane
Certifications cETLus, ETL Sanitation
UPC 690207591298

Warranty

Omcan lists a 2 year parts warranty, a 2 year labor warranty, and a 5 year compressor warranty.
