Product Description

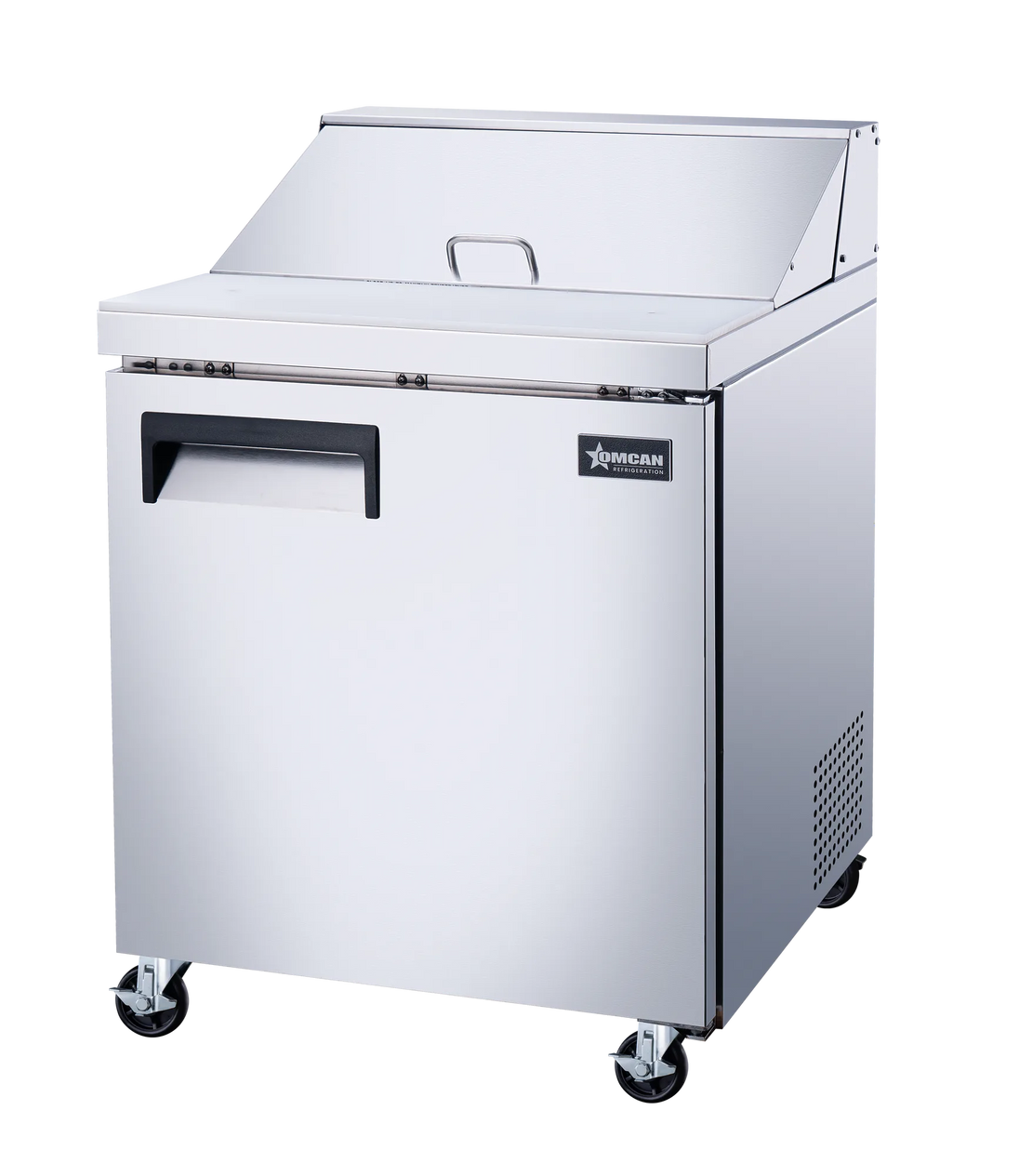

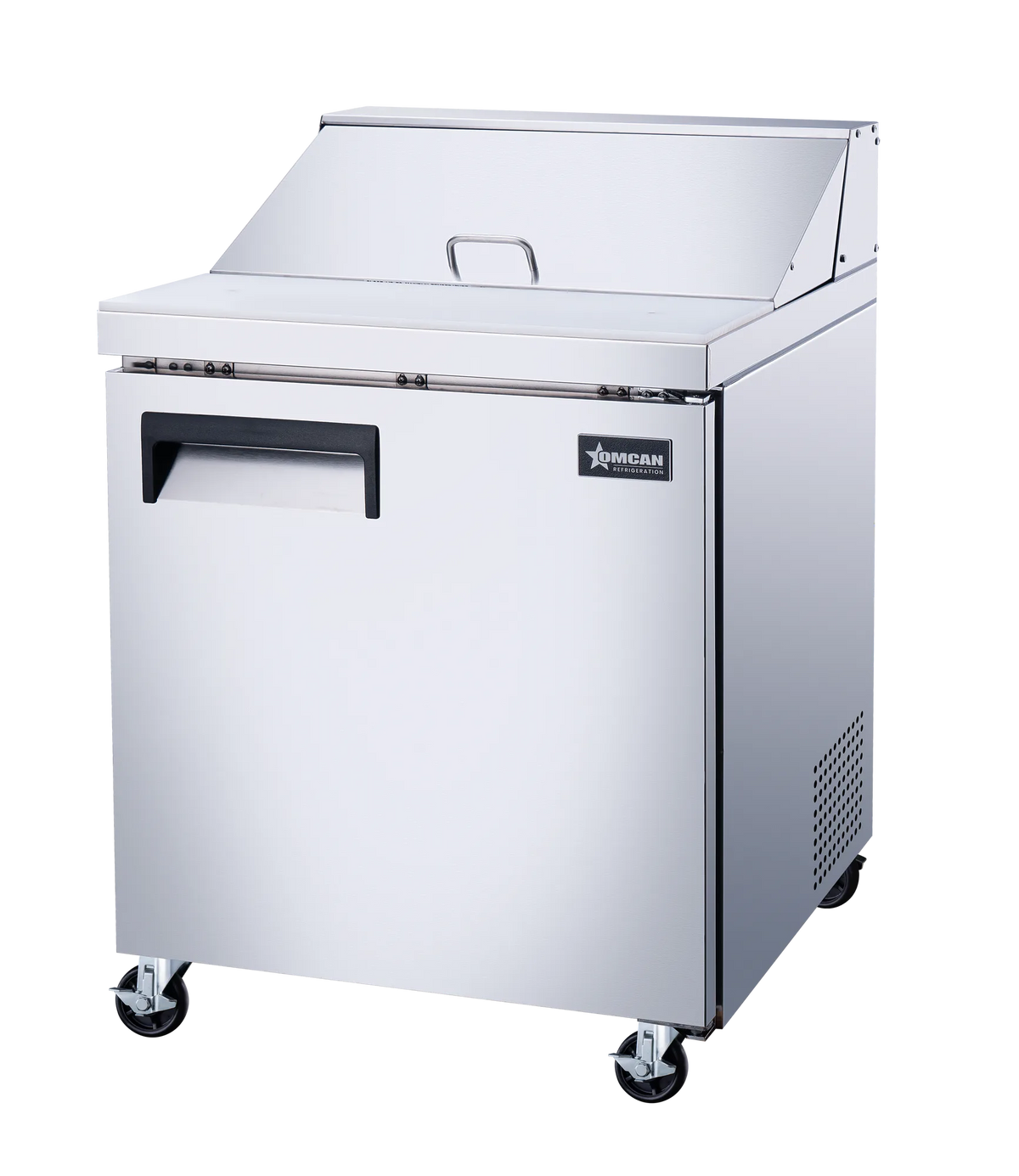

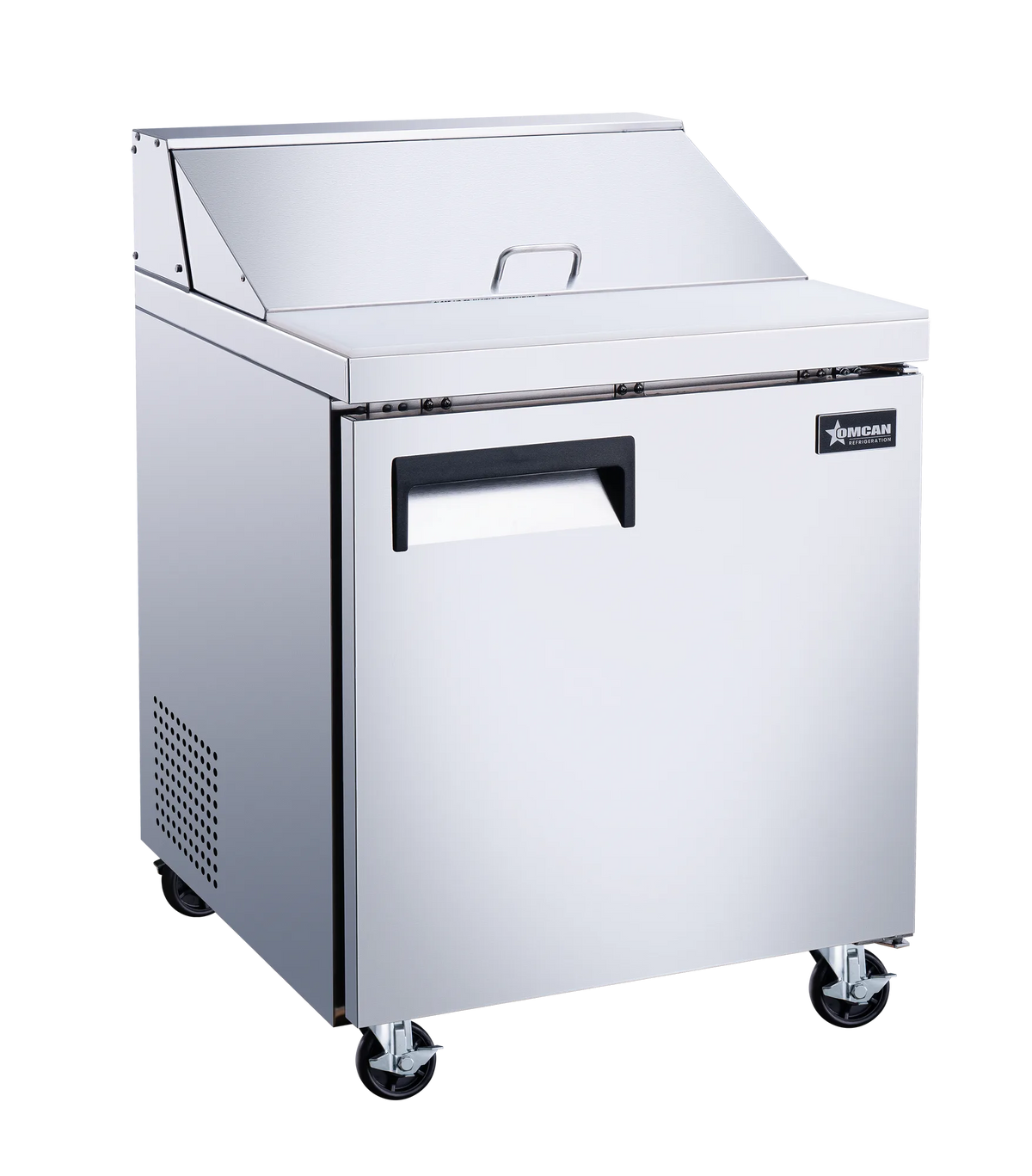

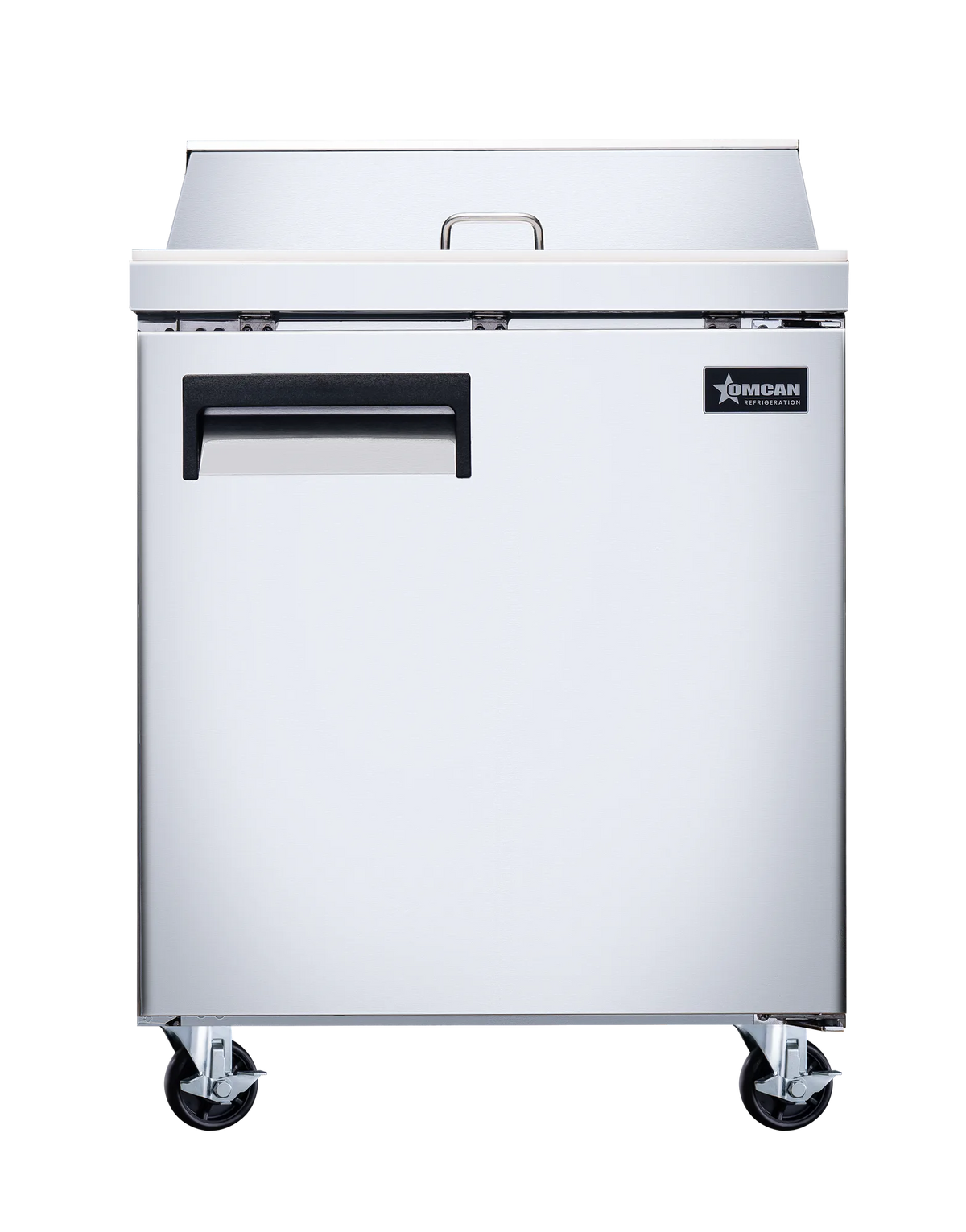

The Omcan PT-CN-0686-HC is a 28 inch one-door refrigerated sandwich prep table with right hand door opening and eight 1/6 GN pan positions.

Right Hand Opening on a 27.5 Inch Cabinet

Omcan lists one door with right hand opening, one shelf rated at 88 lb, and an insert capacity of eight 1/6 GN pans. The left hand opening version is sold separately as PT-CN-0686-L-HC with otherwise matching listed specifications.

360 Watts at 3.6 Amps on 115V

The unit is rated 360 W at 3.6 A on 115V/60 Hz/1 Ph with a NEMA 5-15 P plug. It uses R290 refrigerant with cyclopentane insulation and holds 33 to 40 F under a digital temperature controller with automatic defrost.

Stainless Steel with Self-Closing Door

Omcan lists stainless steel on the exterior and interior, a removable door gasket, a self-closing door, adjustable heavy-duty PVC coated shelves and heavy-duty casters with brakes. The cutting board is 10 mm thick.

Specifications

Model PT-CN-0686-HC
Type Refrigerated Sandwich Prep Table
Door Opening Right Hand
Doors 1
Insert Capacity 8 x 1/6 GN pans
Shelves 1, 88 lb capacity
Exterior Dimensions (W x D x H) 27.5 x 29.5 x 41.5 Inch
Interior Dimensions (W x D x H) 24.2 x 19.8 x 23.5 Inch
Net Weight 176.4 lb
Shipping Dimensions 33 x 35 x 46 Inch
Shipping Weight 216 lb
Electrical 115V / 60 Hz / 1 Ph
Power 360 W
Amperage 3.6 A
Plug NEMA 5-15 P
Refrigerant R290
Insulation Cyclopentane
Temperature Range 33-40 F
Cutting Board Thickness 10 mm
Certifications cETLus, ETL Sanitation
UPC 690207500450

Warranty

Omcan lists a 2 year parts warranty, a 2 year labor warranty, and a 5 year compressor warranty.
