Product Description

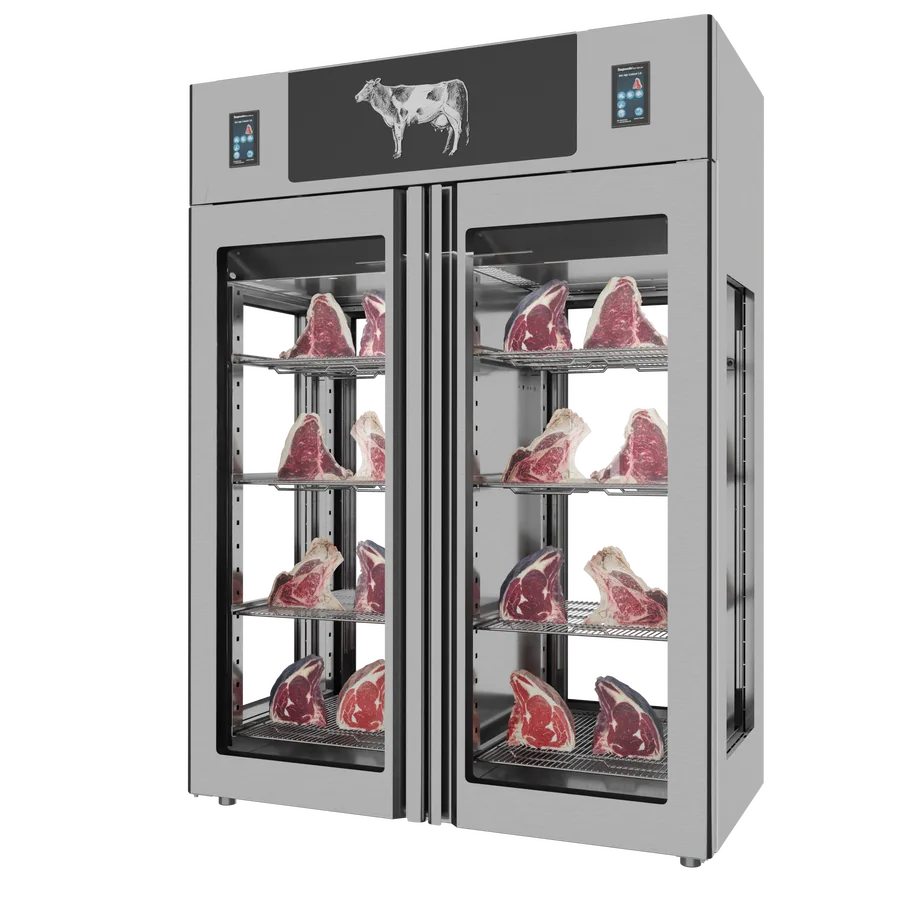

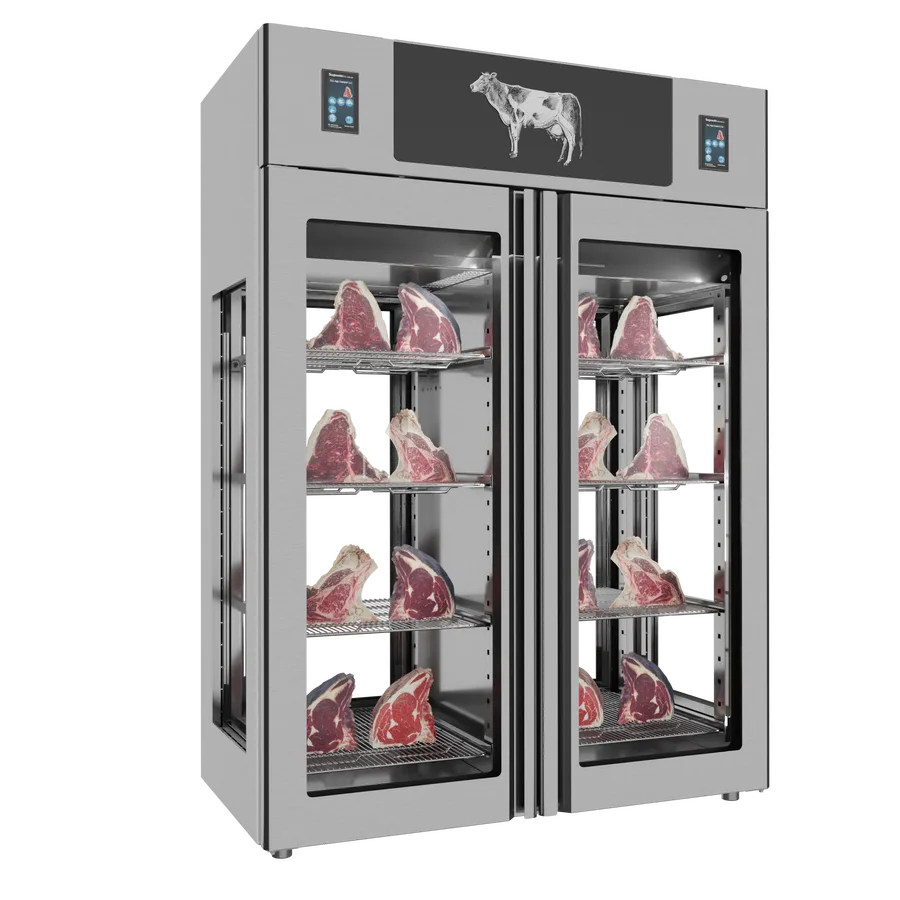

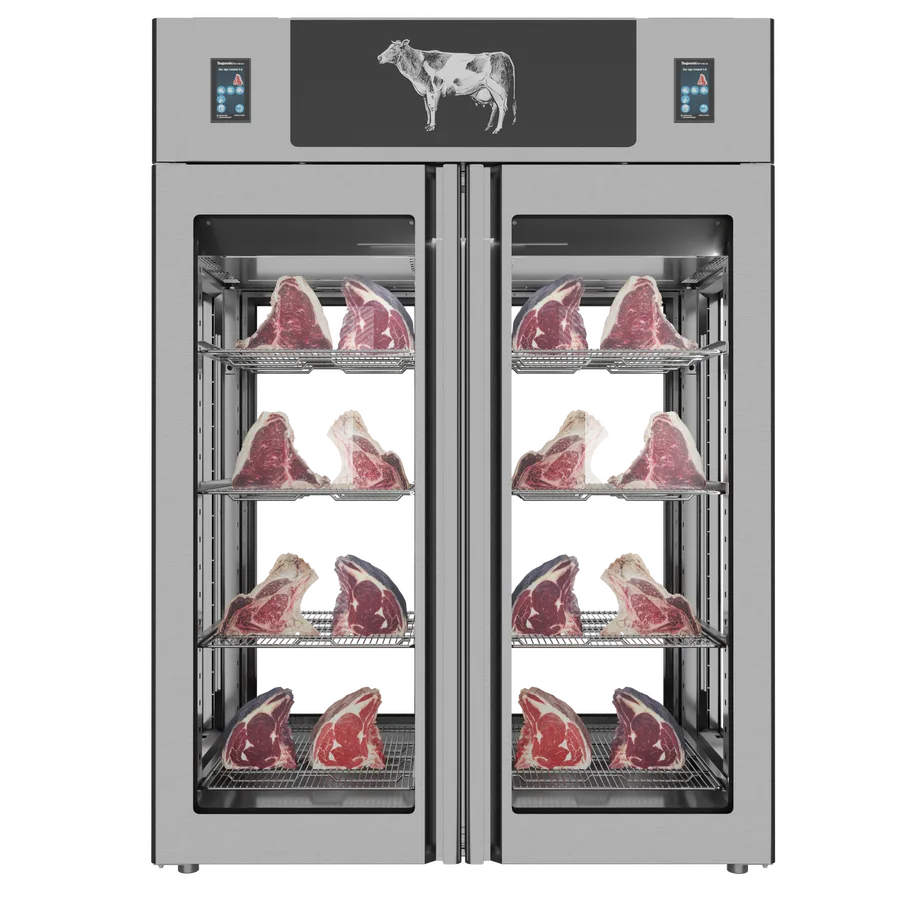

The Omcan PI3AIONTW4VI is a Stagionello Dry Age 3.0 Twin dry aging cabinet in the 4-glass view configuration with 49.5 cu ft (1400 L) of capacity in two 150 kg chambers and two glass swing doors, rated 220 to 240V, 60 Hz, single phase.

Humidity Management and pH Monitoring

The cabinet uses umiright humidity management, with tank or direct water connection, and includes pH reading and monitoring. Drop-weight management systems are standard. The listed humidity range is 30% to 99% RH.

Plug and Dry Installation

Omcan lists the cabinet with a Plug and Dry system and no installation costs. The interior is AISI 304 stainless steel, and the exterior is AISI 304 stainless steel or painted sheet metal. The unit is made in Italy.

Climatic Recipes and HACCP Logging

The control offers 10 climatic recipes, five for dry aging and five for fresh meat preservation. A 2 HACCP logging system is listed. Air is managed by the Dynaflow system over a working temperature range of -3C to 35C.

Specifications

Model PI3AIONTW4VI
Series Stagionello Dry Age 3.0 Twin
Type Dry Aging Cabinet, Twin, 4-Glass View
Capacity 49.5 cu ft / 1400 L (150 kg + 150 kg)
Doors 2 glass swing doors
Shelves 4 + 4, 77 lb (35 kg) maximum each
Interior Dimensions (W x D x H) Two chambers, each 22.4 x 26 x 63 Inch (570 x 660 x 1600 mm)
Exterior Dimensions (W x D x H) 57.6 x 34.5 x 83.2 Inch (1464 x 875 x 2115 mm)
Electrical 220 to 240V, 60 Hz, 1 Ph
Power 1300 W rated, 3500 W maximum
Amperage 5.9 A rated, 15.0 A maximum
Temperature Range -3C to 35C
Humidity Range 30% to 99% RH
Net Weight 804.7 lb (365 kg)
Shipping Weight 893 lb
Shipping Dimensions 38 x 33 x 87 Inch
Certifications cQPSus, FCM
Country of Origin Italy
UPC 690207480486

Warranty

Omcan lists a 2 year parts warranty and a 2 year labor warranty.
