Product Description

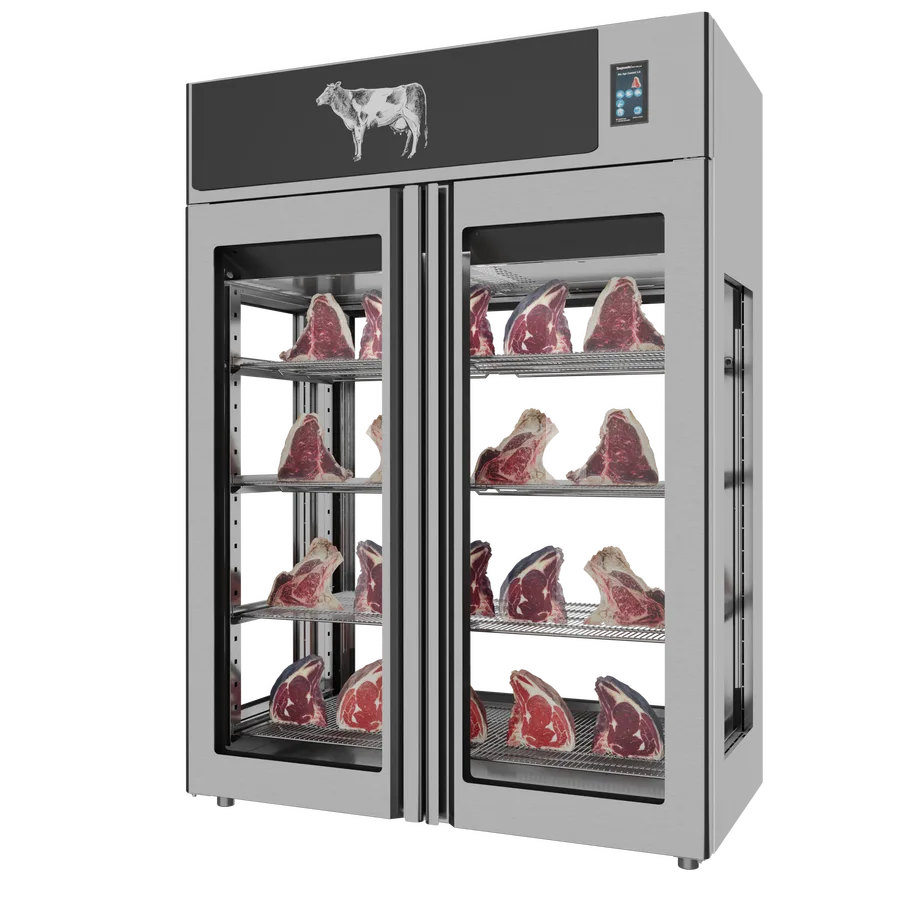

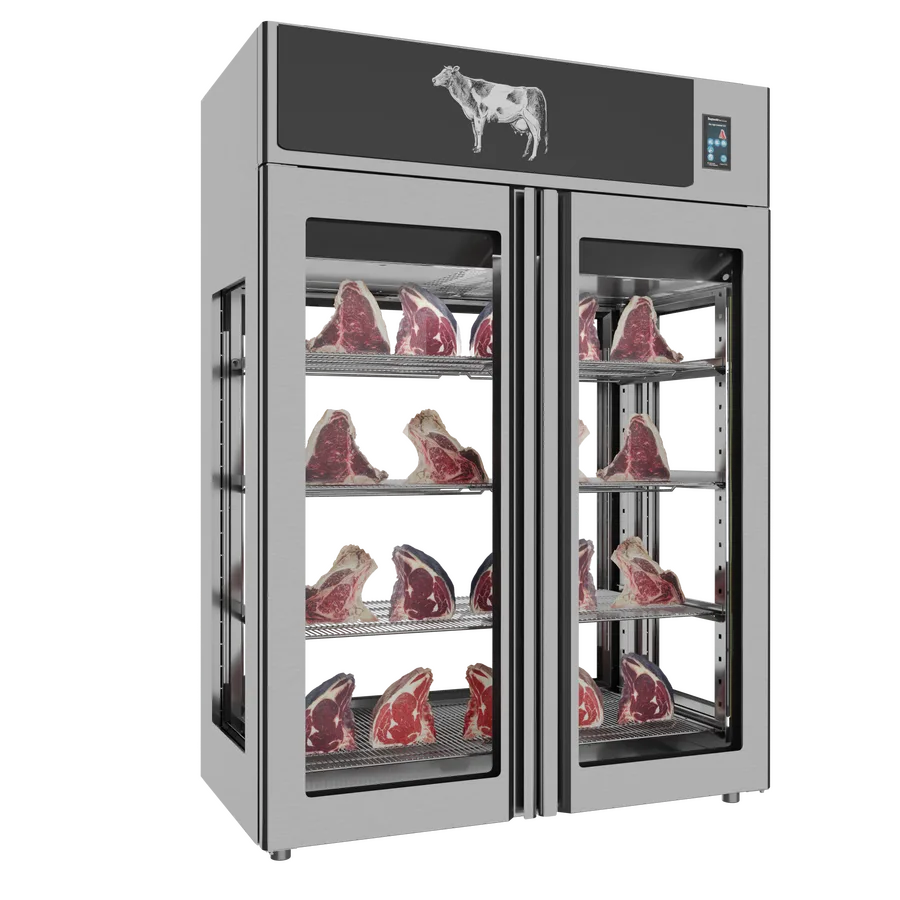

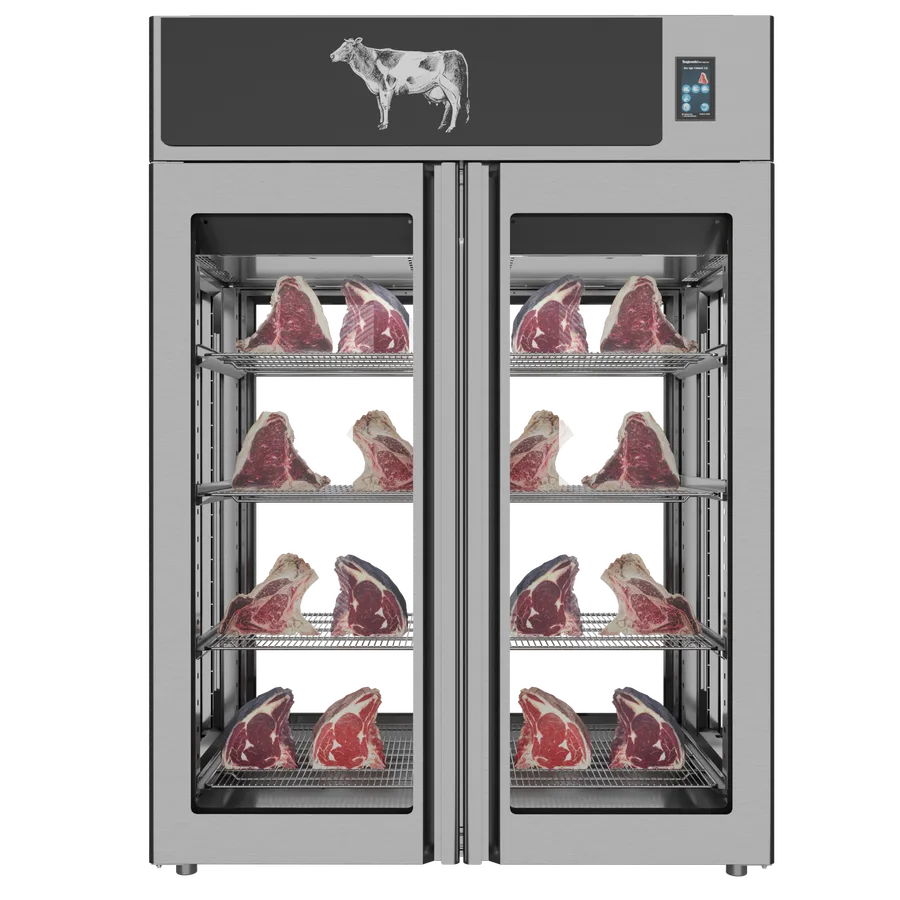

The Omcan PI3AION144VI is a Stagionello Dry Age 3.0 dry aging cabinet in the 4-glass view configuration with 49.5 cu ft (1400 L) of capacity and two glass swing doors, rated 220 to 240V, 60 Hz, single phase.

Humidity Management and pH Monitoring

The cabinet includes pH reading and monitoring and drop-weight management systems. The listed humidity range is 30% to 99% RH.

Plug and Dry Installation

Omcan lists the cabinet with a Plug and Dry installation system. The interior is AISI 304 stainless steel, and the exterior is AISI 304 stainless steel or painted sheet metal. The unit is made in Italy.

Climatic Recipes and HACCP Logging

The control offers 10 preset climatic recipes, five for aging and five for preservation. A HACCP system logs temperature, humidity and pH. Air is managed by the Dynaflow system over a working temperature range of -3C to 35C.

Specifications

Model PI3AION144VI
Series Stagionello Dry Age 3.0
Type Dry Aging Cabinet, 4-Glass View
Capacity 49.5 cu ft / 1400 L
Doors 2 glass swing doors
Shelves 4 + 4, 77 lb (35 kg) maximum each
Interior Dimensions (W x D x H) 53 x 26 x 63 Inch (1350 x 660 x 1600 mm)
Exterior Dimensions (W x D x H) 57.6 x 34.5 x 83.2 Inch (1464 x 875 x 2115 mm)
Electrical 220 to 240V, 60 Hz, 1 Ph
Power 980 W rated, 2960 W maximum
Amperage 4.8 A rated, 13.4 A maximum
Temperature Range -3C to 35C
Humidity Range 30% to 99% RH
Net Weight 738.5 lb (335 kg)
Shipping Weight 826 lb
Shipping Dimensions 38 x 33 x 87 Inch
Certifications cQPSus, FCM
Country of Origin Italy
UPC 690207480455

Warranty

Omcan lists a 2 year parts warranty and a 2 year labor warranty.
