Product Description

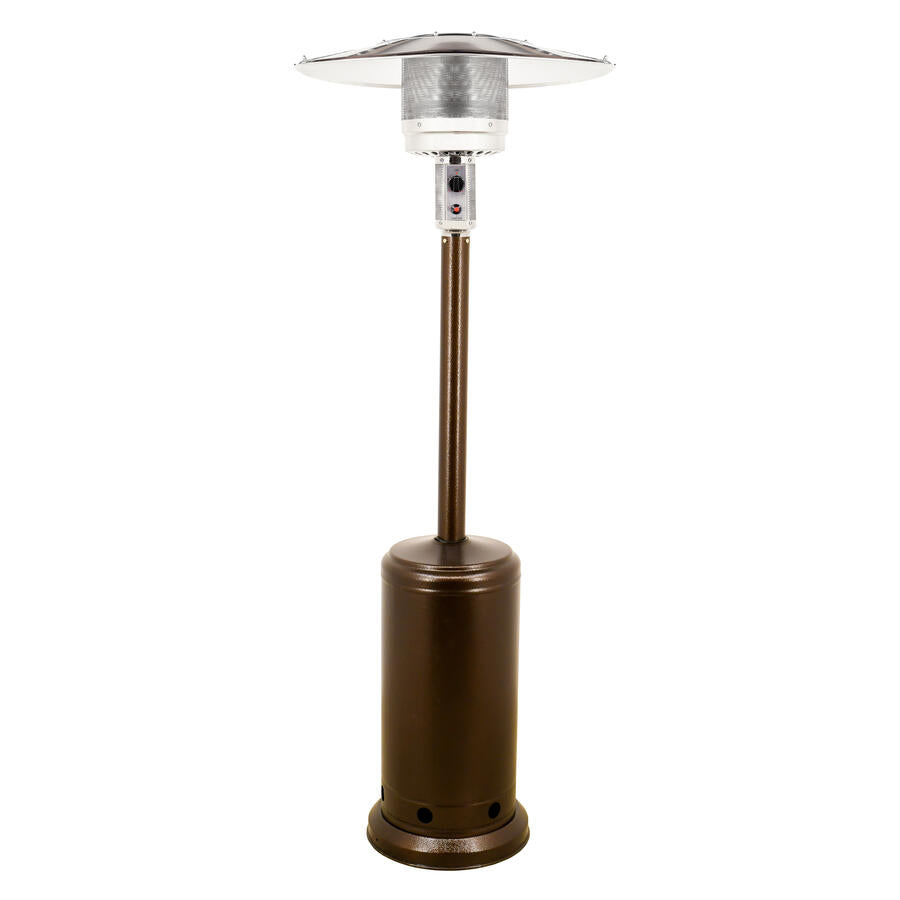

The Omcan PH-CN-0045 is an 87 inch / 2210 mm brown powder-coated patio heater rated from 17,000 to 45,000 BTU/hr, with a tank door and one piece reflector.

17,000 to 45,000 BTU/hr

Output ranges from 17,000 to 45,000 BTU/hr, with a heating radius of 16.5 ft. Burn time is 4 hours on high and 8 hours on medium or low settings.

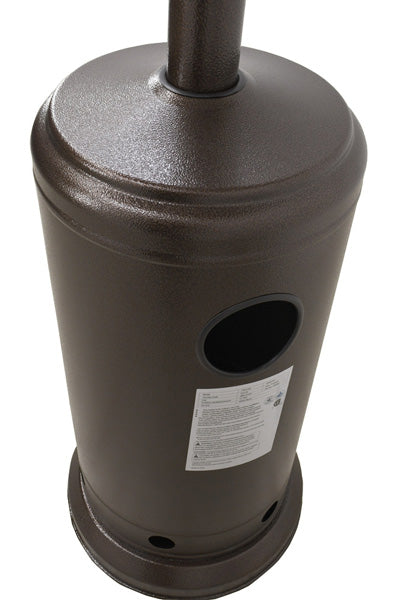

Tank Housing with Door

The 378 x 780 mm tank housing takes a 20 lb propane tank and has an access door. The post and base are powder-coated 202 stainless steel in brown.

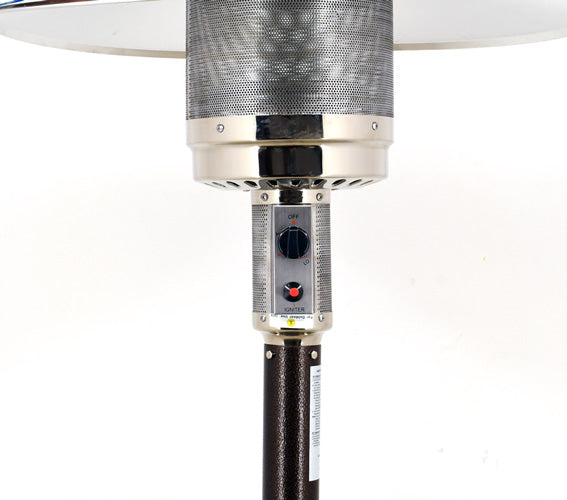

Tilt Shut Off and Pulse Ignition

The heater shuts off automatically if tilted at 30 degrees and has a temperature-controlled flameout switch. Ignition is by pulse switch, and Omcan lists the unit as cCSAus certified.

Specifications

Model PH-CN-0045
Type Propane Patio Heater
Color Brown
Total Height 87 Inch / 2210 mm
BTU/hr 17,000 to 45,000
Fuel Propane or Butane
Fuel Consumption 450 to 870 g/hour
Propane Tank Size 20 lb
Burn Time 4 Hours High, 8 Hours Medium/Low
Heating Radius 16.5 ft
Material Powder-Coated 202 Stainless Steel Post and Base, 26 Gauge
Base (Dia x H) 460 x 86 mm
Tank Housing (Dia x H) 378 x 780 mm
Main Pole (Dia x H) 56 x 850 mm
Burner Unit (Dia x H) 265 x 600 mm
Flame Screen (Dia x H) 260 x 230 mm
Net Weight 37.47 lb / 17 kg
Shipping Weight 42 lb
Shipping Dimensions 17.71 x 18.11 x 34.64 Inch
Country of Origin China
Certifications cCSAus
UPC 690207467999

Warranty

Omcan lists a 1 year parts and 1 year labor warranty for this item.
