Product Description

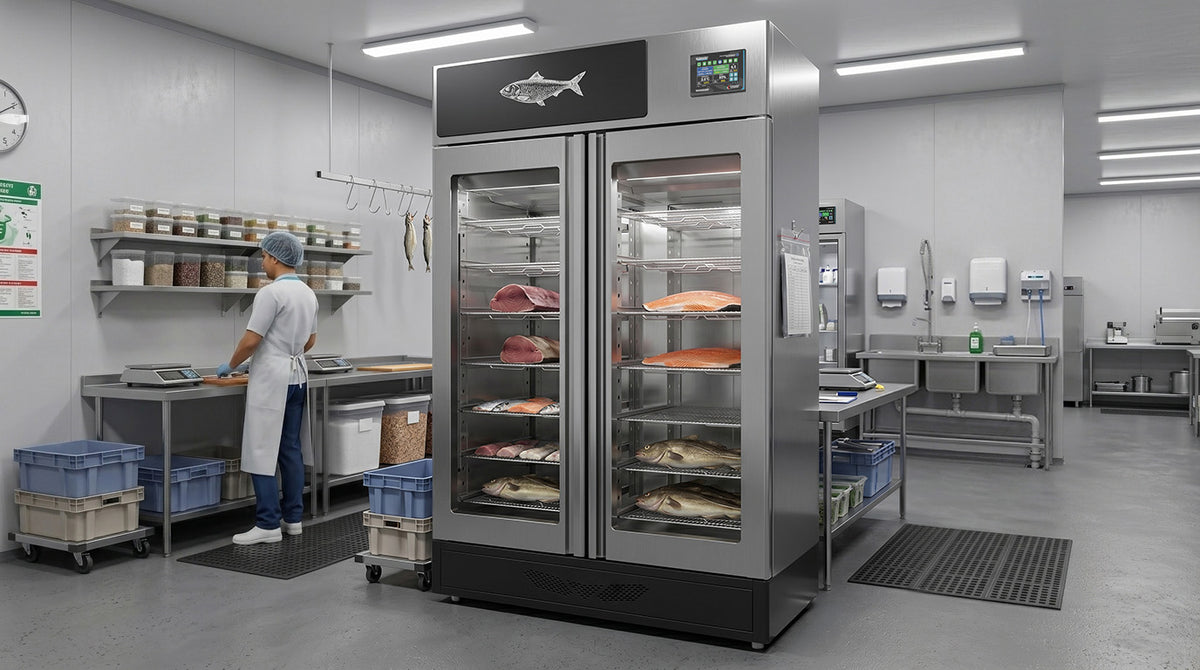

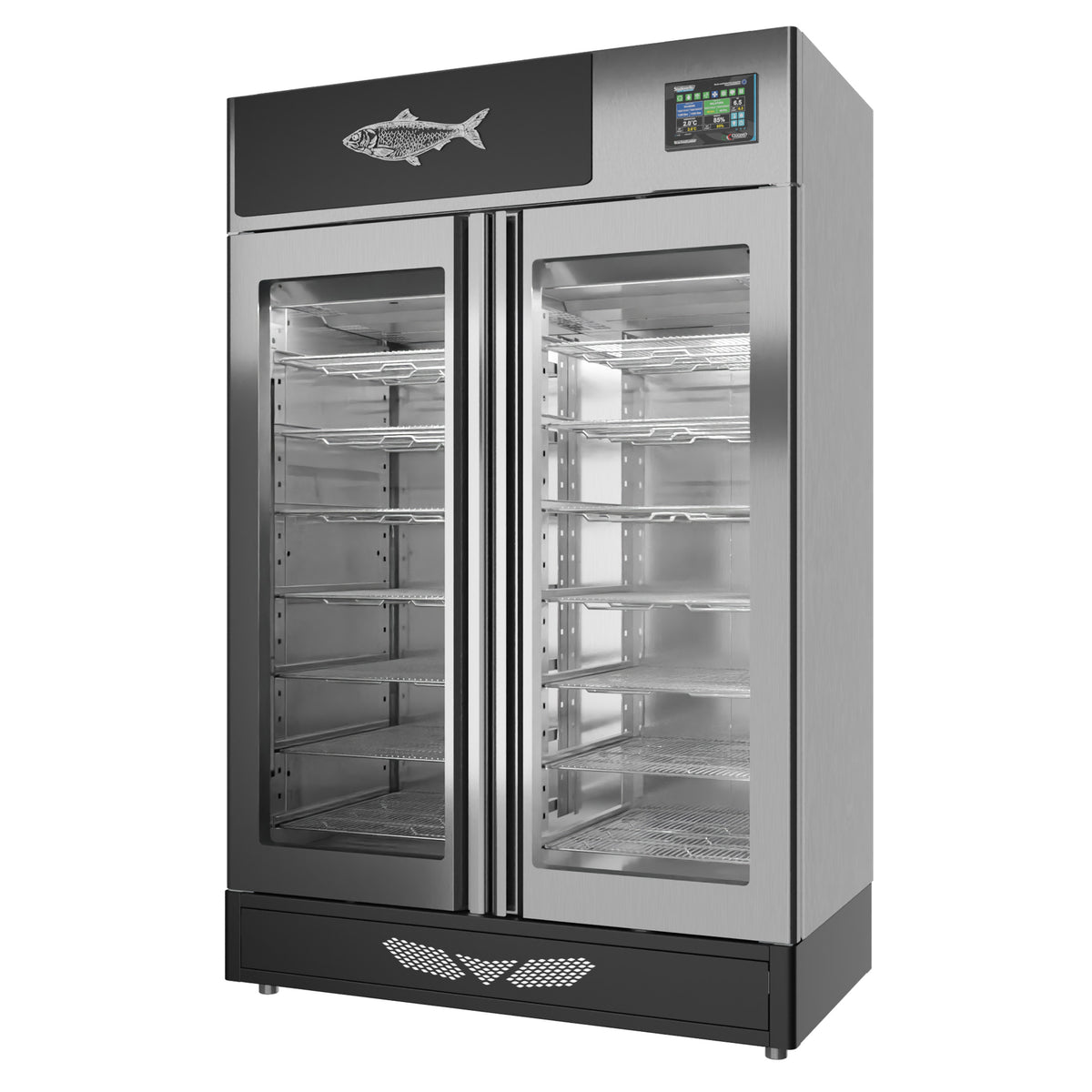

The Omcan PES20T4.0 is a Stagionello Pesciugatore fish curing cabinet 4.0 with a 440 lb (200 kg) capacity, two glass doors and ClimaTouch and Fumotic systems. It runs on 208 to 220 V, 60 Hz, single phase power.

Curing Functions

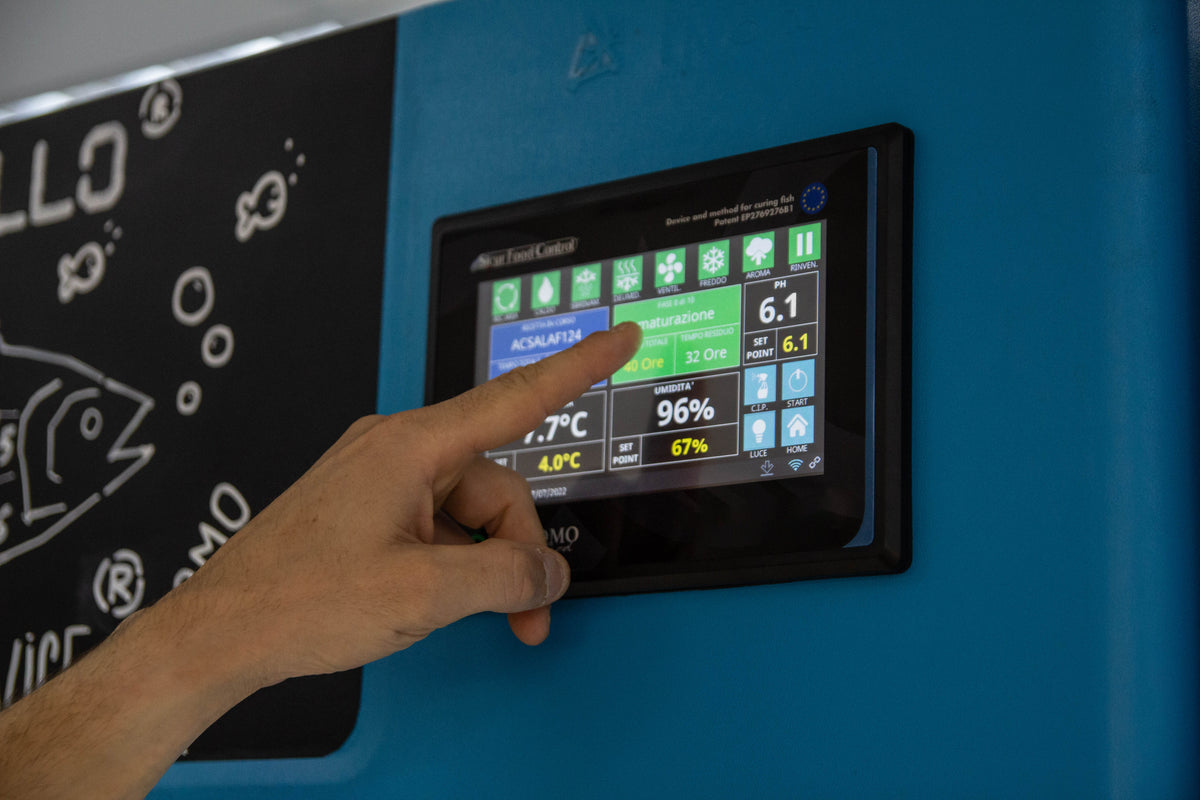

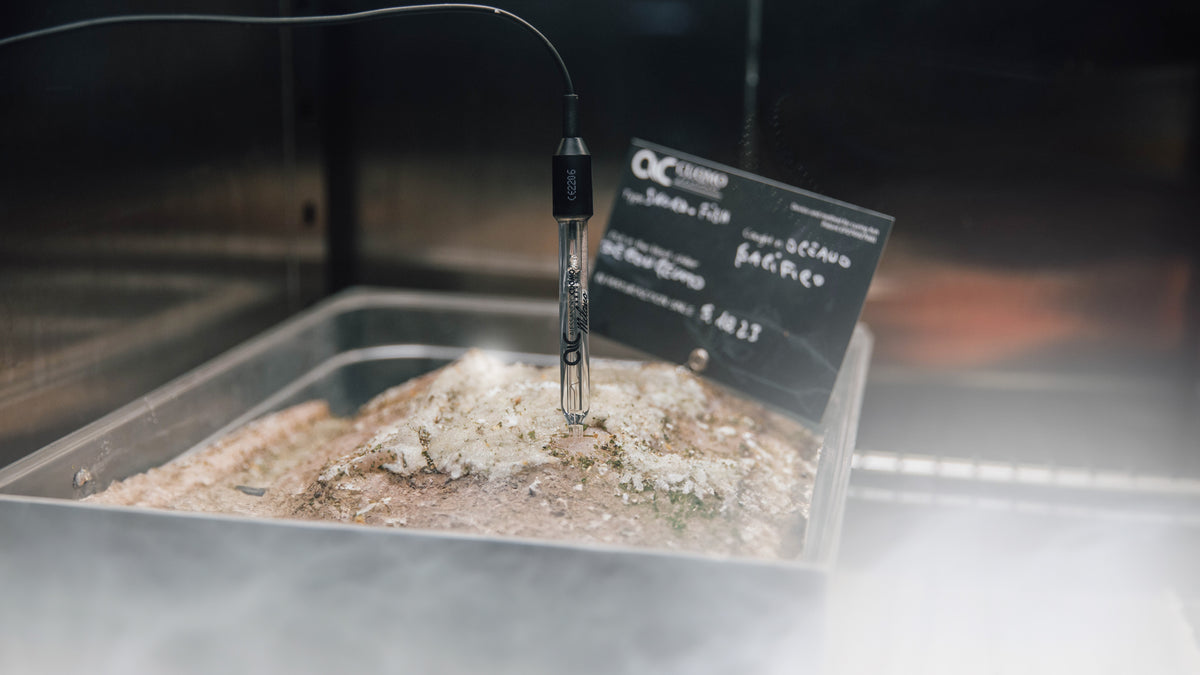

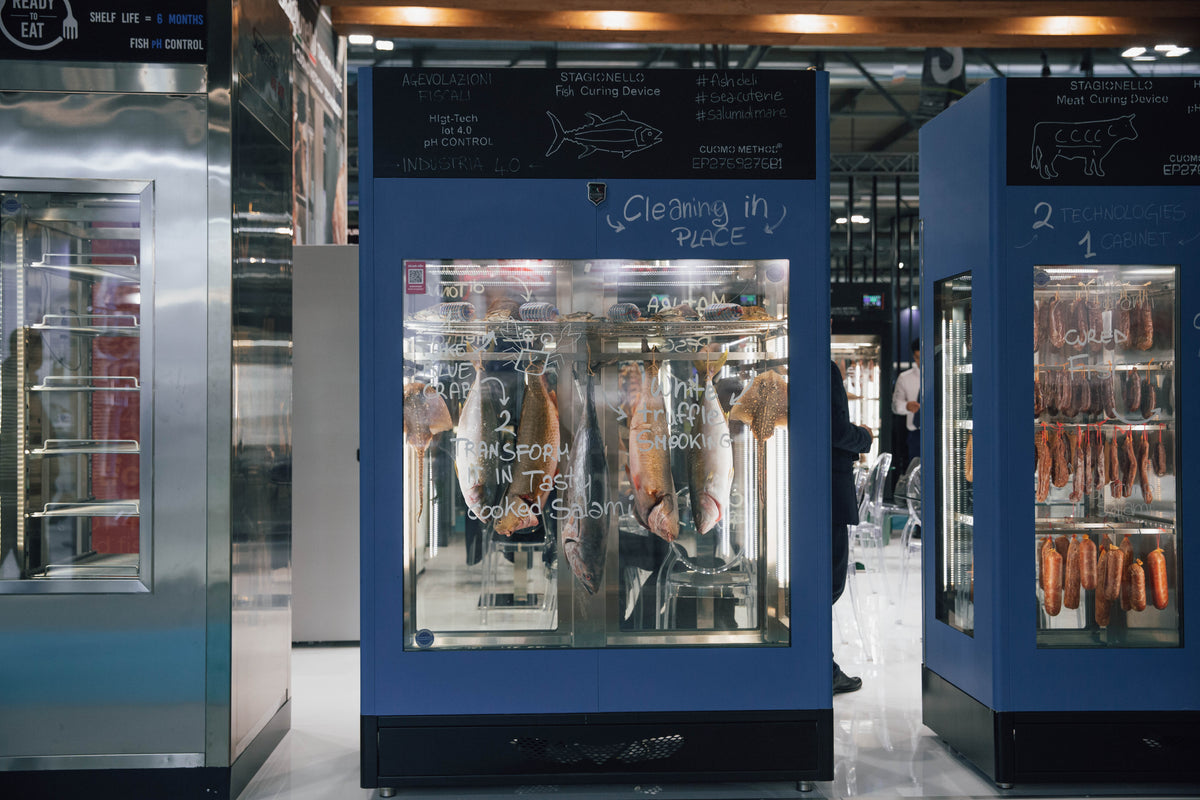

Omcan describes the cabinet as a unique cabinet for dry ageing fish with a controlled pH system for the smoking and curing of sea salami. It has an integrated pH system, cleaning in place capability, remote control and a 7 Inch display. The temperature range is 0 C to 35 C (32 F to 95 F) and the humidity range is 30% to 99%.

Humidity and Air Systems

The cabinet includes a humidification and aromatization system, hot gas defrosting, automatic interior LED lighting and an air exchange kit.

Construction and Interior

The cabinet is built from AISI 304 stainless steel with two glass doors with UV protection, and Omcan lists customizable exterior finishes. The interior holds 14 stainless steel grills with 14 guide sets.

Specifications

Model PES20T4.0
Item Number 49004
Type Fish curing cabinet
Capacity 440 lb / 200 kg
Dimensions (W x D x H) 57.7 x 30.9 x 86.6 Inch / 1465 x 785 x 2200 mm
Doors 2 glass doors
Interior 14 grills with 14 guide sets
Temperature Range 0 C to 35 C / 32 F to 95 F
Humidity Range 30% to 99%
Electrical 208-220 V / 1 Ph / 60 Hz
Plug NEMA 6-20 P
Net Weight 551 lb / 250 kg
Shipping Dimensions 33 x 60.2 x 95.2 Inch
Shipping Weight 970 lb
Certification cQPSus Certified
Country of Origin Italy
UPC 690207490041

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
