Product Description

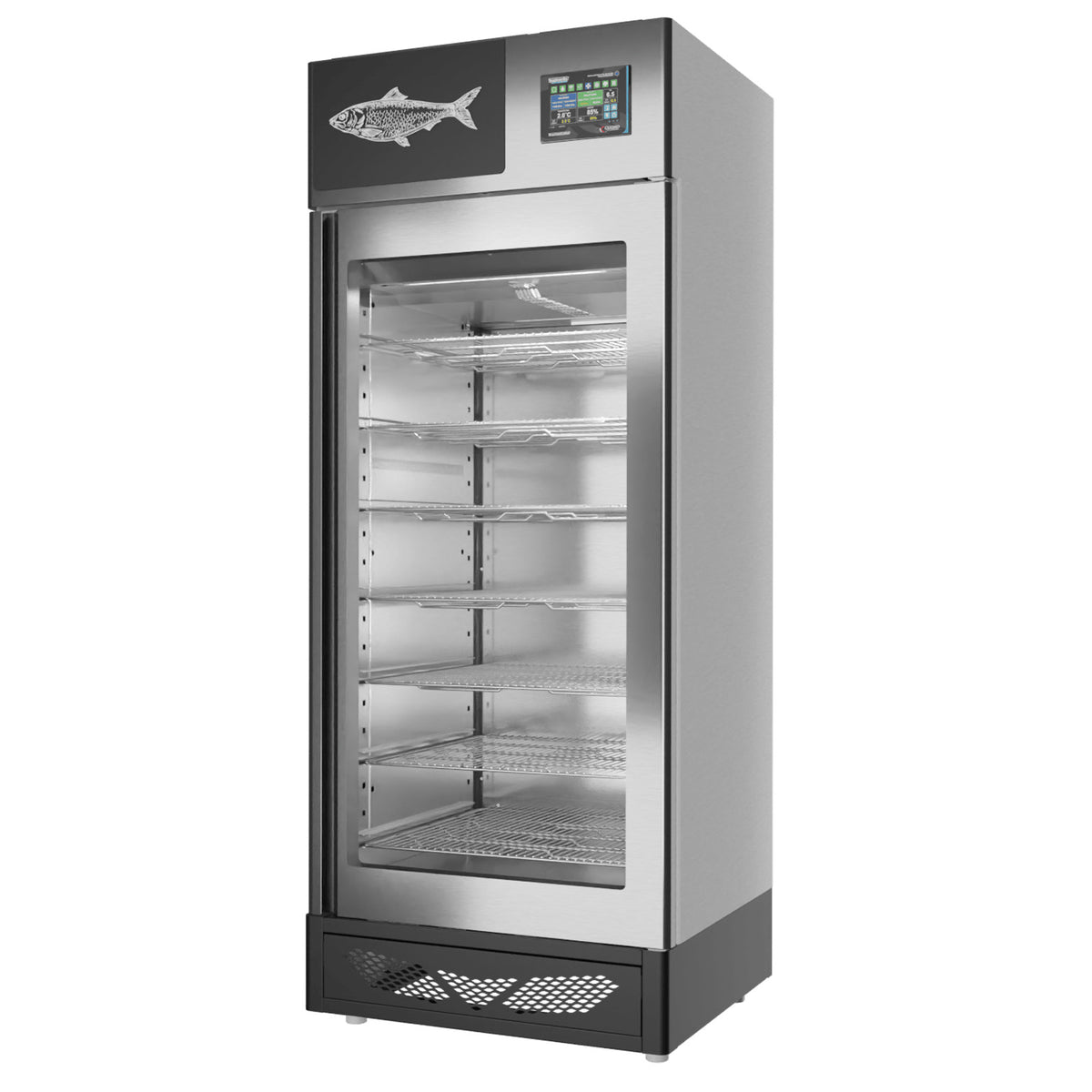

The Omcan PES15T4.0 is a Stagionello Pesciugatore fish curing cabinet 4.0 with a 330 lb (150 kg) capacity and ClimaTouch and Fumotic systems. It runs on 220 V, 60 Hz, single phase power.

Curing Functions

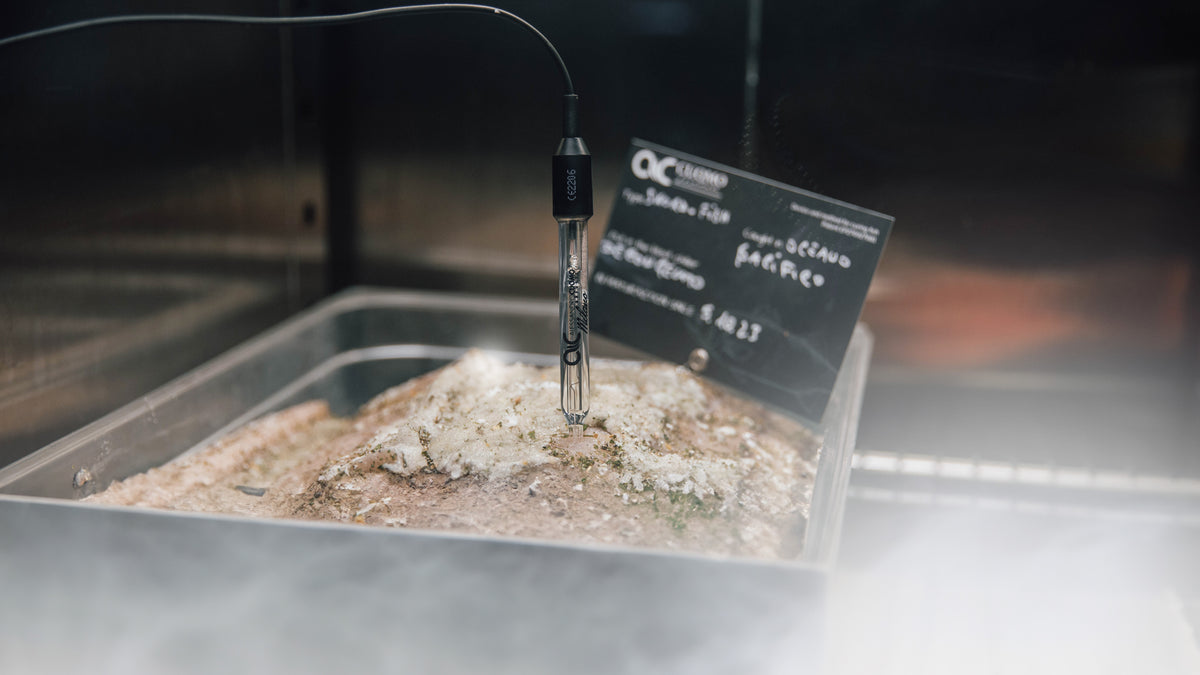

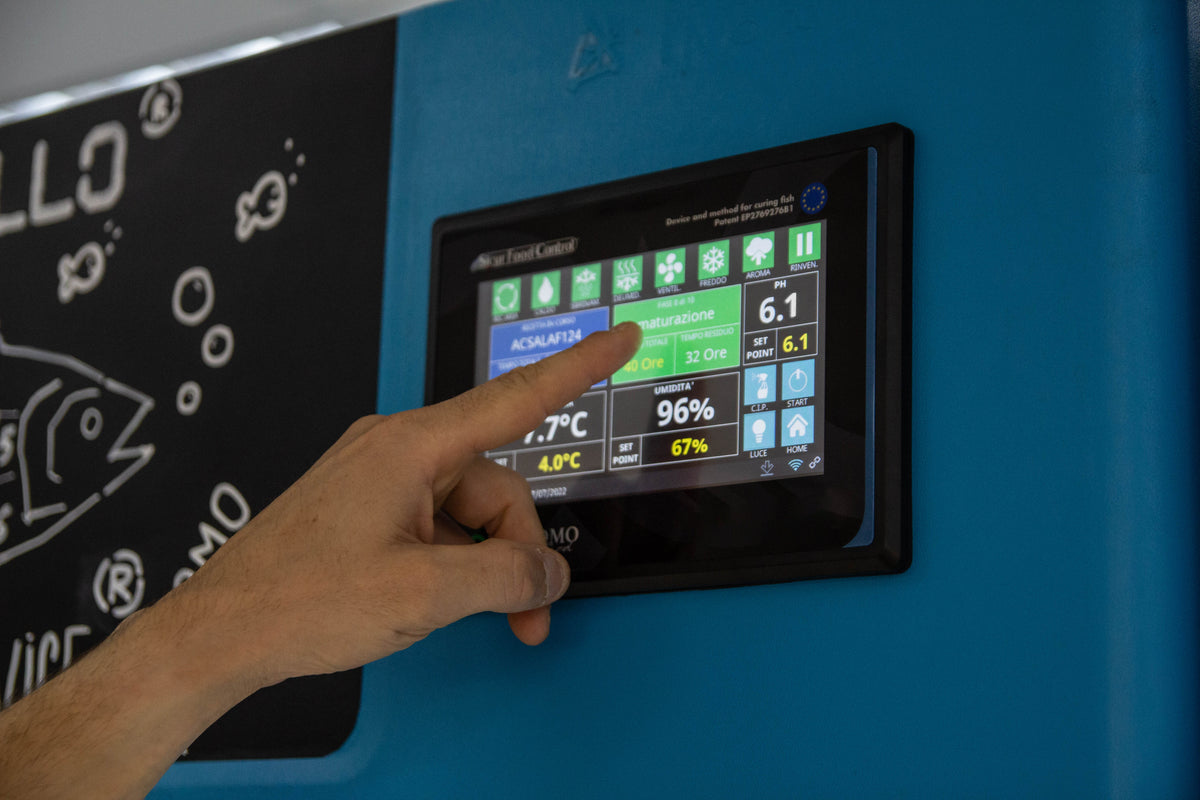

Omcan states the cabinet handles dry ageing of fish with a controlled pH system for smoking and curing of sea salami. It has an integrated PH system, cleaning in place, remote control and a 7 Inch display. The temperature range is 0 C to 35 C (32 F to 95 F) and the humidity range is 30% to 99%.

Humidity and Air Systems

The cabinet includes a humidification and aromatization system, a hot gas defrosting system, automatic interior LED lighting and an air exchange kit.

Construction and Interior

The cabinet is built from AISI 304 stainless steel with a scotch-brite finish and has one double-glazed UV-protected glass door with lock and key. The interior holds 7 AISI 304 stainless steel grills with 7 sets of guides. Four extendable stainless steel legs support the unit.

Specifications

Model PES15T4.0
Item Number 49003
Type Fish curing cabinet
Capacity 330 lb / 150 kg
Dimensions (W x D x H) 35.6 x 30.9 x 86.6 Inch / 905 x 785 x 2200 mm
Doors 1 glass door
Interior 7 grills with 7 guide sets
Temperature Range 0 C to 35 C / 32 F to 95 F
Humidity Range 30% to 99%
Electrical 220 V / 1 Ph / 60 Hz
Plug NEMA 6-20 P
Net Weight 474 lb / 215 kg
Shipping Dimensions 33 x 38 x 95 Inch
Shipping Weight 683 lb
Certification cQPSus Certified
Country of Origin Italy
UPC 690207490034

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
