Product Description

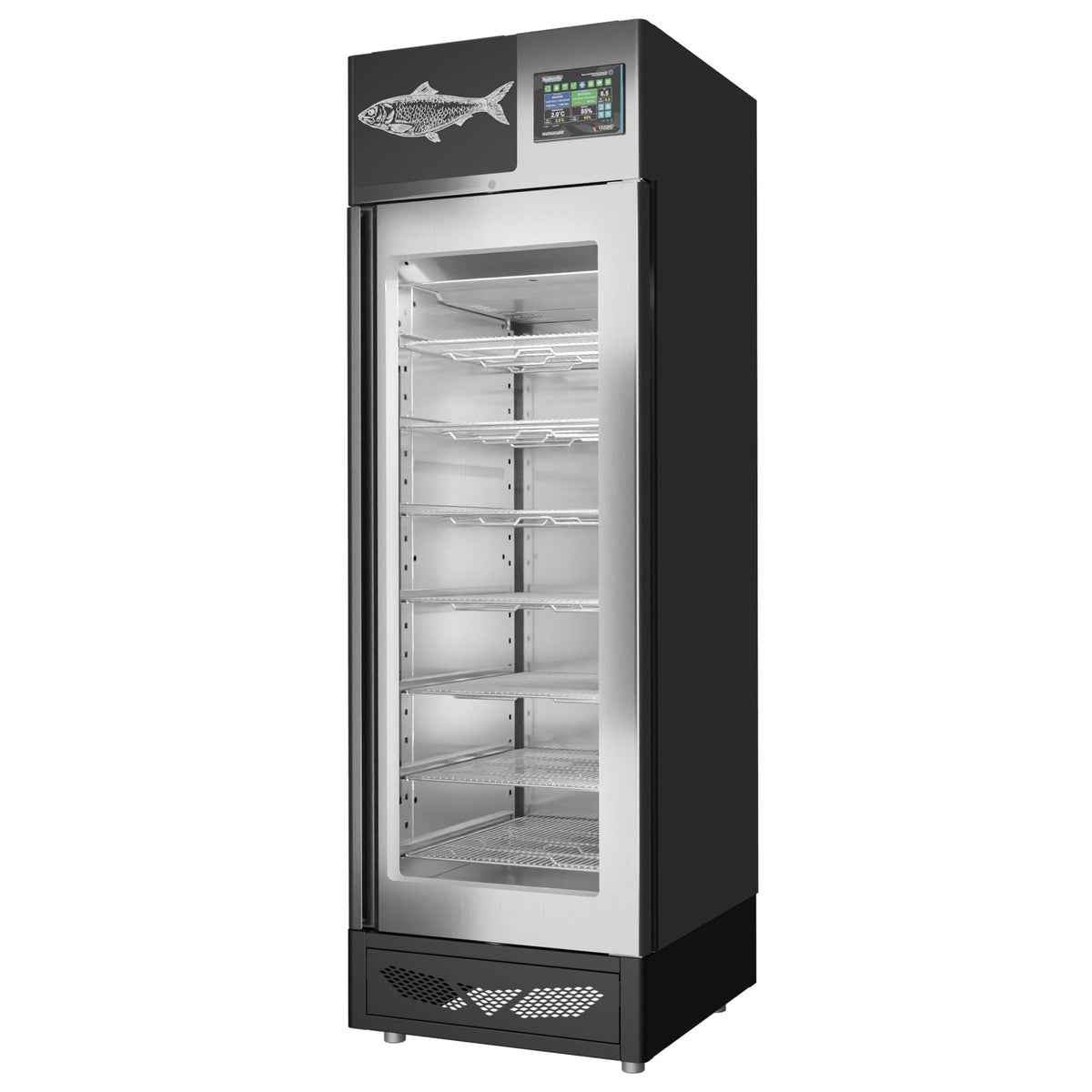

The Omcan PES10T4.0 is a Stagionello Pesciugatore fish curing cabinet 4.0 with a 220 lb (100 kg) capacity and ClimaTouch and Fumotic systems. It runs on 220 V, 60 Hz, single phase power.

Curing Functions

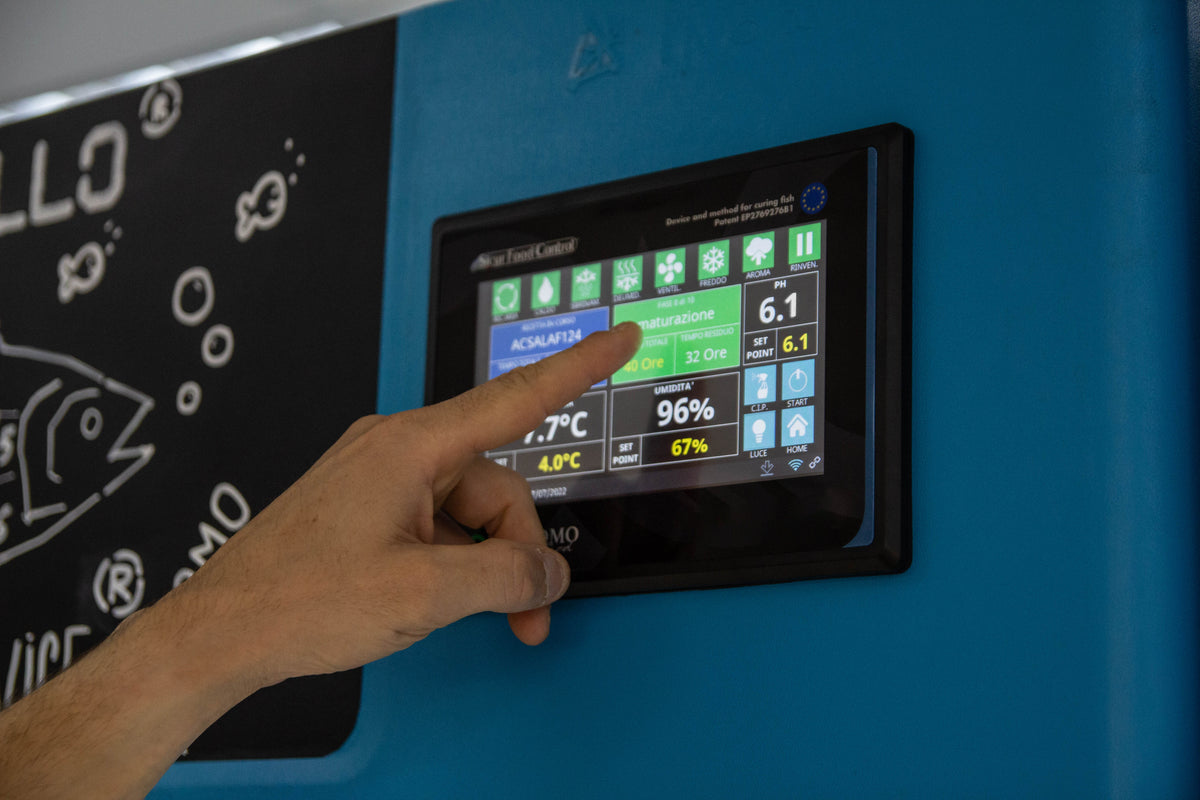

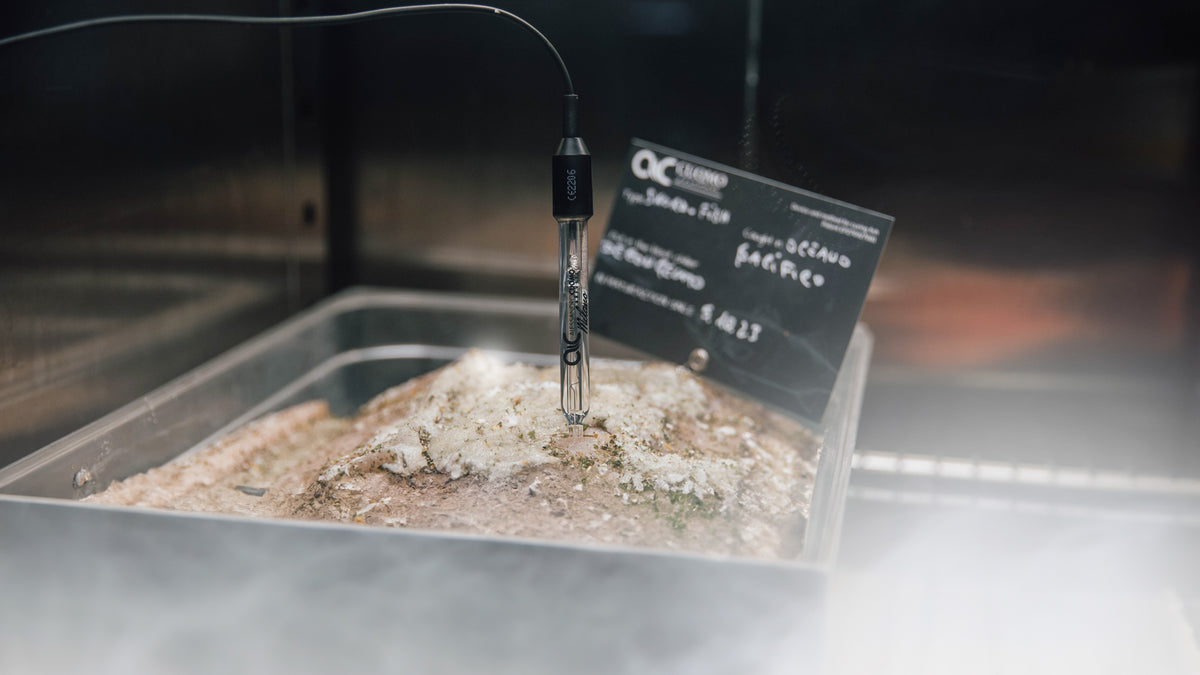

Omcan states the cabinet enables dry aging, smoking and curing of fish products, including sea salami and cooked tuna or squid mortadella. It has an integrated PH system, cleaning in place capability, remote control operation and a 7 Inch display. The temperature range is 0 C to 35 C (32 F to 95 F) and the humidity range is 30% to 99%.

Humidity and Air Systems

The cabinet includes a humidification and aromatization system, a hot gas defrosting system, automatic interior LED lighting and an air exchange kit. Rated power is 2376 W.

Construction and Interior

The cabinet is built entirely from AISI 304 stainless steel with a scotch-brite finish and has one double-glazed UV-protective glass door with lock and key. The interior holds 7 AISI 304 stainless steel grills with 7 sets of guides. Four extendable stainless steel legs support the unit, and Omcan states it can be incorporated into furnishings or walls.

Specifications

Model PES10T4.0
Item Number 49002
Type Fish curing cabinet
Capacity 220 lb / 100 kg
Dimensions (W x D x H) 28.7 x 30.9 x 86.7 Inch / 730 x 785 x 2200 mm
Doors 1 glass door
Interior 7 grills with 7 guide sets
Temperature Range 0 C to 35 C / 32 F to 95 F
Humidity Range 30% to 99%
Electrical 220 V / 1 Ph / 60 Hz, 2.37 kW, 10.8 A
Plug NEMA 6-20 P
Net Weight 474 lb / 215 kg
Shipping Dimensions 33 x 32 x 95 Inch
Shipping Weight 595 lb
Certification QPS Certified
Country of Origin Italy
UPC 690207490027

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
