Product Description

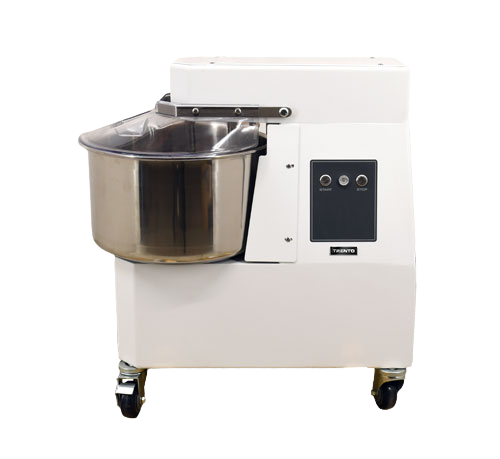

The Omcan MX-IT-0020-F is a Trento 22 qt spiral mixer with a fixed bowl, rated 750 W / 1 hp on a 120V / 60Hz / 1Ph supply.

22 Qt Bowl with 23 lb Flour and 37.5 lb Dough Capacities

Bowl capacity is listed as 22 QT, maximum dry flour capacity as 23 lb / 10.5 kg and maximum dough capacity as 37.5 lb / 17 kg. Bowl dimensions are listed as 14.2 x 8.3 Inch / 360 x 210 mm.

Bowl and Spiral Speeds of 10 and 85 RPM

The spec table lists RPM (Bowl/Spiral) as 10 / 85. The model is listed with a fixed bowl, and the open lid height is listed as 37.4 Inch / 950 mm.

120V Single Phase on a NEMA 5-15 P Plug

Power is listed at 750 W / 1 hp on a 120V / 60Hz / 1Ph supply with a NEMA 5-15 P plug. Net weight is listed as 153.7 lb / 69.7 kg and shipping weight as 179 lb.

Specifications

Model MX-IT-0020-F
Series Trento
Type Spiral Mixer with Fixed Bowl
Bowl Capacity 22 QT
Max Dry Flour Capacity 23 lb / 10.5 kg
Max Dough Capacity 37.5 lb / 17 kg
RPM (Bowl/Spiral) 10 / 85
Power 750 W / 1 hp
Electrical 120V / 60Hz / 1Ph
Plug NEMA 5-15 P
Bowl Dimensions 14.2 x 8.3 Inch / 360 x 210 mm
Net Weight 153.7 lb / 69.7 kg
Net Dimensions (WDH) 15.4 x 26.8 x 24.6 Inch / 391 x 680 x 624 mm
Open Lid Height 37.4 Inch / 950 mm
Shipping Dimensions 22.8 x 32.7 x 39.4 Inch
Shipping Weight 179 lb
Certifications cETLus Certified, ETL Sanitation Certified
Country of Origin Italy
UPC 690207454173

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
