Product Description

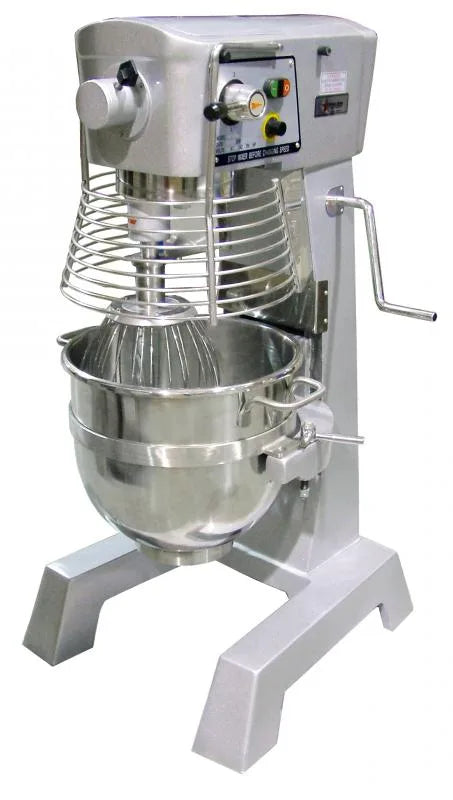

The Omcan MX-CN-0030-T is a 30 qt standard-duty planetary mixer with guard and timer, rated 2 HP / 1.5 kW on a 110 V/60 Hz/1 Ph supply.

30 Qt Capacity with Three Shaft Speeds

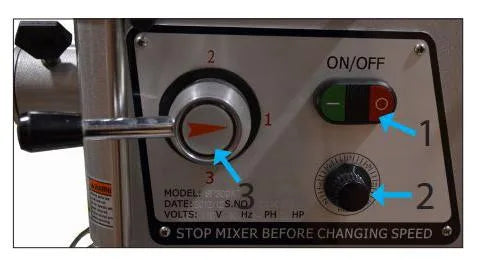

Capacity is listed as 30 qt. Shaft speeds are listed as 91, 166 and 282 RPM for the 1st, 2nd and 3rd speed. The Omcan page describes a 3-speed, gear-driven transmission.

Guard and Timer Listed Yes

The spec table lists Timer: Yes and Guard: Yes. The Omcan page states that the unit includes 3 attachments, a stainless steel bowl and a safety guard.

2 HP Motor on a NEMA 5-15 P Plug

Power is listed at 2 HP / 1.5 kW on 110 V/60 Hz/1 Ph with a NEMA 5-15 P plug. Shipping weight is listed as 487 lb and shipping dimensions as 48 x 40 x 57 Inch.

Specifications

Model MX-CN-0030-T
Type Standard-Duty Planetary Mixer
Capacity 30 qt
Power 2 HP / 1.5 kW
Shaft RPM (1st, 2nd, 3rd Speed) 91, 166, 282
Timer Yes
Guard Yes
Electrical 110 V/60 Hz/1 Ph
Plug NEMA 5-15 P
Net Dimensions 23.5 x 21 x 44.5 Inch (596.9 x 533.4 x 1130.3 mm)
Shipping Dimensions 48 x 40 x 57 Inch
Shipping Weight 487 lb
Certifications cETLus Certified, ETL Sanitation Certified
Country of Origin China
UPC 690207178369

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
