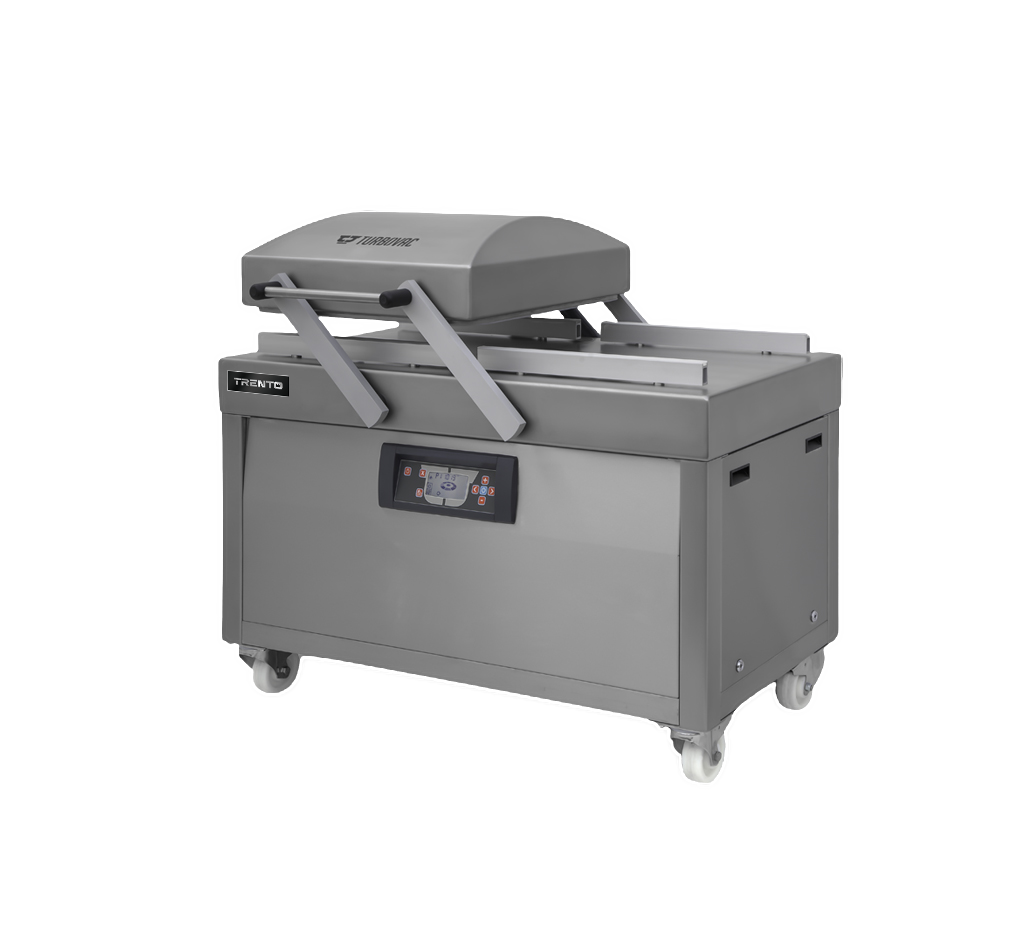

Omcan L30-LL160 Turbovac L30 double chamber vacuum packaging machine

Product Description

The Omcan L30-LL160 is a Turbovac L30 double chamber vacuum packaging machine with 4 x 32 Inch seal length and a 160 m3 vacuum pump.

Double Seal with 4 Seal Bars of 32 Inch

The specification table lists the seal as Double and the seal configuration as LL - 4 seal bars (each 32 Inch seal length). Filler plates are listed as Yes, and the working surface as Flat.

160 m3 Vacuum Pump and 10 Program Digital Time Control

The vacuum pump is listed as 160 m3 and the digital time control as 10 Programs. Power is listed as 5.5 - 9 kW, and the cover is listed as a stainless steel cover.

220 V Three Phase and 1322.7 lb Net Weight

Electrical is listed as 220 V/60 Hz/3 Ph, and the Omcan page lists the unit as No Plug/Wire. Net weight is listed as 1322.7 lb / 600 kg and net dimensions as 71 Inch x 43.3 Inch x 46 Inch (W x D x H), or 1805 x 1100 x 1170 mm.

Specifications

Model L30-LL160
Omcan Item Number 59134
Series Turbovac L30
Seal Double
Seal Configuration LL - 4 seal bars (each 32 Inch seal length)
Filler Plates Yes
Digital Time Control 10 Programs
Cover Stainless Steel Cover
Working Surface Flat
Electrical 220 V/60 Hz/3 Ph
Plug No Plug/Wire
Vacuum Pump 160 m3
Power 5.5 - 9 kW
Net Weight 1322.7 lb / 600 kg
Net Dimensions (W x D x H) 71 Inch x 43.3 Inch x 46 Inch / 1805 x 1100 x 1170 mm
Shipping Dimensions 77.5 Inch x 47.2 Inch x 55.9 Inch
Shipping Weight 1497 lb
Certifications cMETus Certified
UPC 690207591342
Country of Origin Netherlands

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
