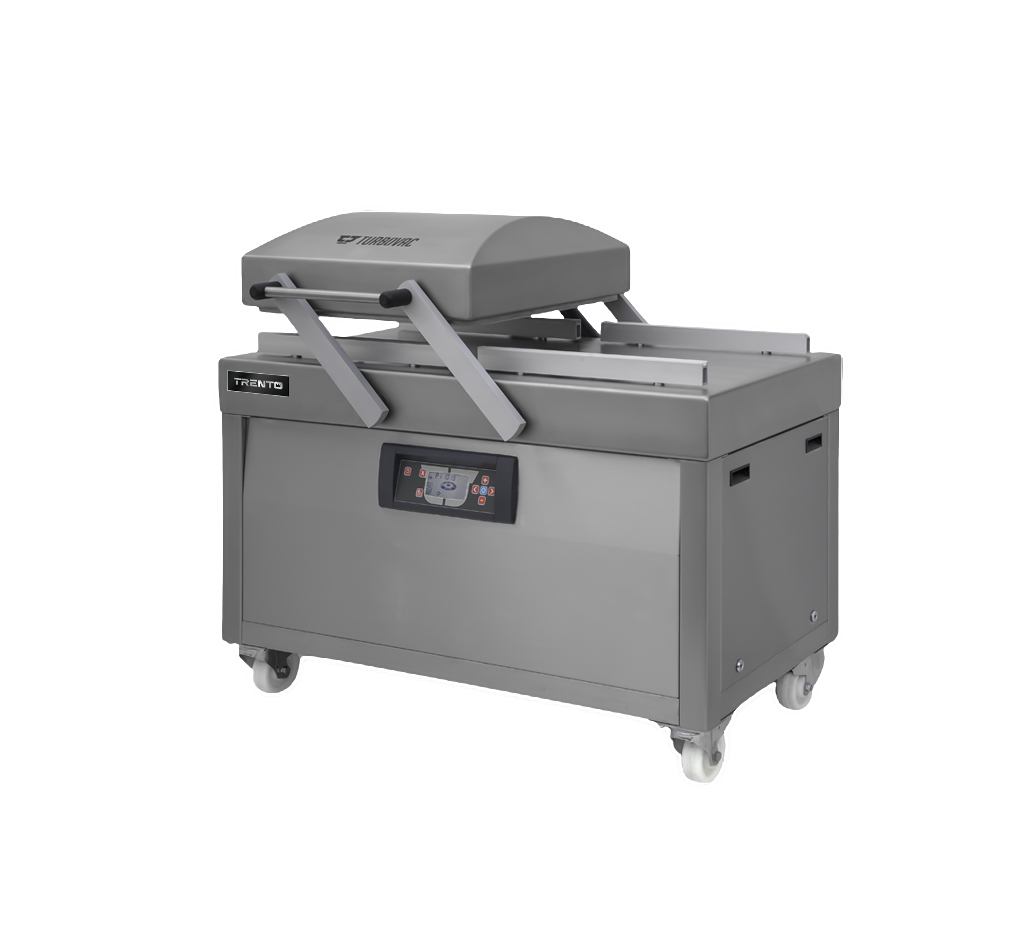

Omcan L10-LL100 Turbovac L10 double chamber vacuum packaging machine

Product Description

The Omcan L10-LL100 is a Turbovac L10 double chamber vacuum packaging machine with 4 x 24 Inch seal length and a 100 m3/h vacuum pump.

Double Chamber with 4 x 24.40 Inch Seal Length

The seal length is listed as 24.40 Inch (620 mm) x 4. The useful chamber size is listed as 24.4 Inch x 20.47 Inch x 9.4 Inch (W x D x H), or 619 x 520 x 240 mm, and the maximum product height as 9.4 Inch / 240 mm.

100 m3/h Vacuum Pump and 10 Programmable Control

The vacuum pump is listed as 100 m3/h, and 10 programmable control is listed as Yes. Power is listed as 4400 W.

190-240 V Three Phase and 770 lb Net Weight

Electrical is listed as 190-240 V/60 Hz/3 Ph, and the Omcan page lists the unit as No Plug/Wire. Net weight is listed as 770 lb / 350 kg and net dimensions as 56.7 Inch x 36.22 Inch x 47.44 Inch (W x D x H), or 1440 x 920 x 1205 mm.

Specifications

Model L10-LL100
Omcan Item Number 50000
Series Turbovac L10
Seal Length 24.40 Inch (620 mm) x 4
Vacuum Pump 100 m3/h
10 Programmable Control Yes
Power 4400 W
Electrical 190-240 V/60 Hz/3 Ph
Plug No Plug/Wire
Maximum Product Height 9.4 Inch / 240 mm
Useful Chamber Size (W x D x H) 24.4 Inch x 20.47 Inch x 9.4 Inch / 619 x 520 x 240 mm
Net Weight 770 lb / 350 kg
Net Dimensions (W x D x H) 56.7 Inch x 36.22 Inch x 47.44 Inch / 1440 x 920 x 1205 mm
Shipping Dimensions 63 Inch x 42.5 Inch x 55 Inch
Shipping Weight 950 lb
Certifications cMETus Certified
UPC 690207500009
Country of Origin Netherlands

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
