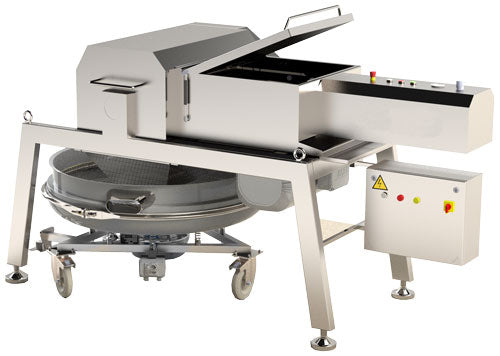

Omcan GR-IT-1500CR1200 hydraulic cheese grater 20 HP with vibrating screen

Product Description

The Omcan GR-IT-1500CR1200 is a hydraulic cheese grater with a SEW 20 HP self-braking motor and a vibrating screen. It is built entirely in AISI 304 stainless steel.

Motor and Drive

The motor is a SEW 20 HP / 14.92 kW self-braking motor. The unit uses a cylinder with pneumatic thrust.

Production Rate

Omcan lists an hourly production rate of 1200 / 1500 kg, or 2640 / 3306 lb.

Construction and Cleaning

Construction is entirely AISI 304 stainless steel. A fast-extraction system with a cogwheel is provided for daily cleaning. The unit ships on a pallet and is listed as special order.

Specifications

Model GR-IT-1500CR1200
Type Hydraulic Cheese Grater with Vibrating Screen
Motor 20 HP / 14.92 kW, self-braking
Hourly Production Rate 1200 / 1500 kg (2640 / 3306 lb)
Net Dimensions (D x W x H) 90.55 x 44 x 53.15 Inch
Net Weight 1807 lb
Certifications CE
Country of Origin Italy

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
