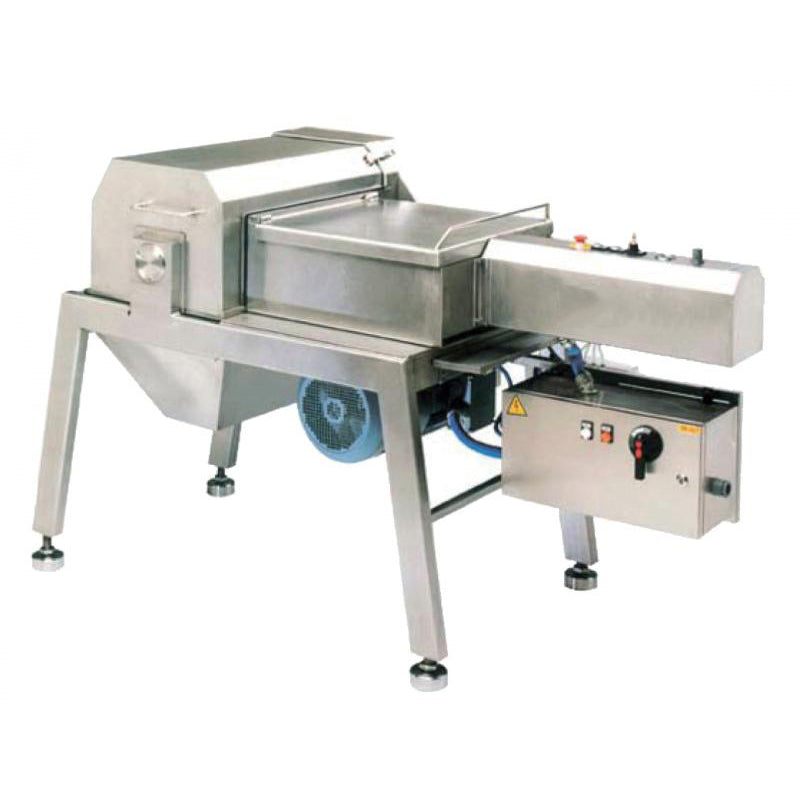

Omcan GR-IT-1500-H hydraulic cheese grater 20 HP

Product Description

The Omcan GR-IT-1500-H is a hydraulic cheese grater with a SEW 20 HP self-braking motor and a pneumatic thrust cylinder. It runs on 208 V, 60 Hz, 3 phase power.

Motor and Drive

The motor is a SEW 20 HP / 14.92 kW self-braking motor. The unit uses a pneumatic thrust cylinder system.

Production Rate

Omcan lists an hourly production rate of 1200 / 1500 kg, or 2640 / 3306 lb.

Construction and Cleaning

Construction is entirely AISI 304 stainless steel. A fast-extraction mechanism with a cogwheel is provided for daily maintenance. Pallet shipping is listed as included.

Specifications

Model GR-IT-1500-H
Type Hydraulic Cheese Grater
Motor 20 HP / 14.92 kW, self-braking
Electrical 208 V / 60 Hz / 3 Ph
Hourly Production Rate 1200 / 1500 kg (2640 / 3306 lb)
Net Dimensions (D x W x H) 98.6 x 44 x 53 Inch
Net Weight 850 kg / 1874 lb
Certifications CE
Country of Origin Italy
UPC 690207454036

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
