Product Description

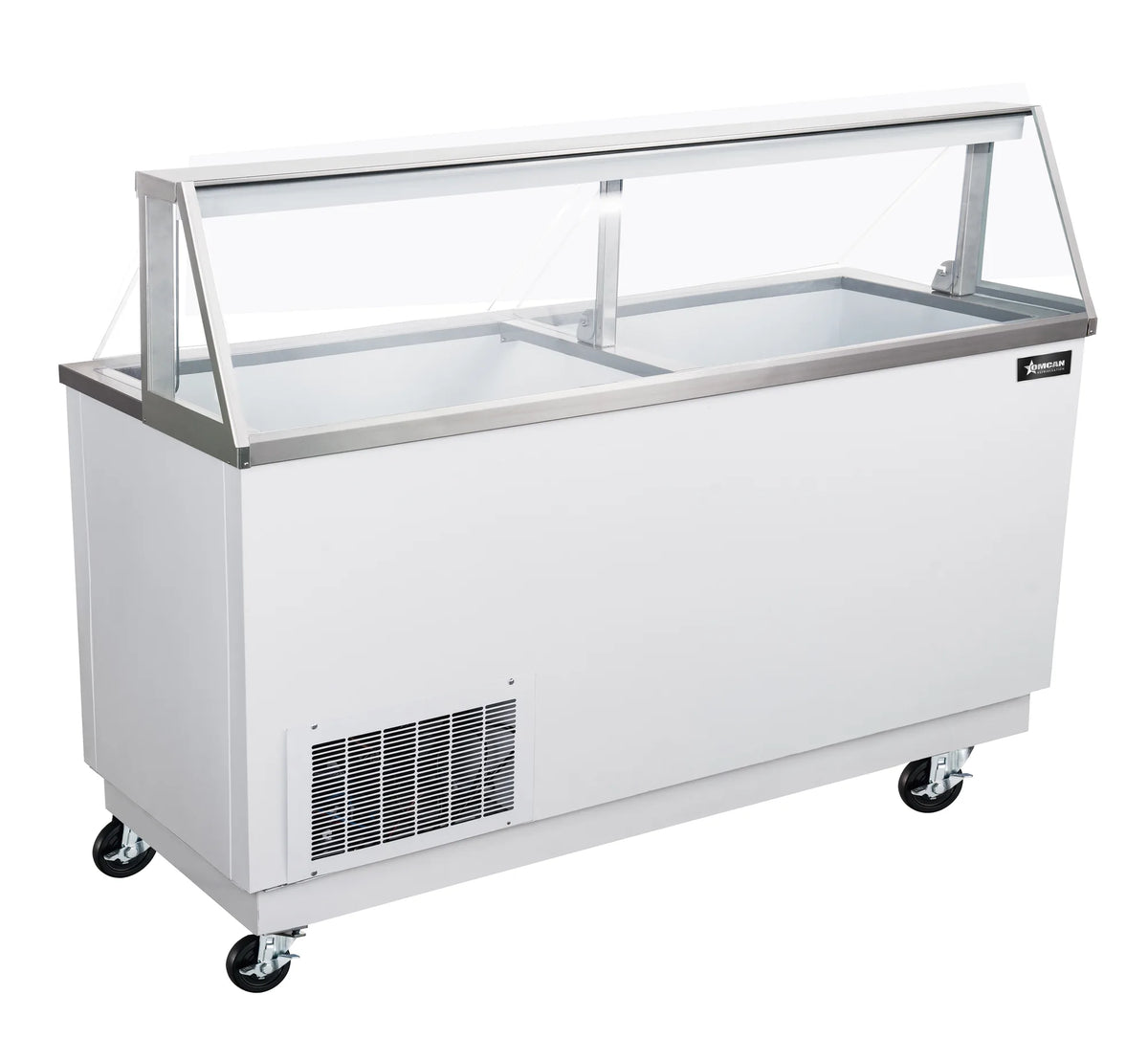

The Omcan FR-CN-0089 is an 89 inch ice cream dipping display freezer that shows 16 and stores 12 three gallon tubs behind a built-in sneeze guard. It runs on 115V and uses R290 refrigerant.

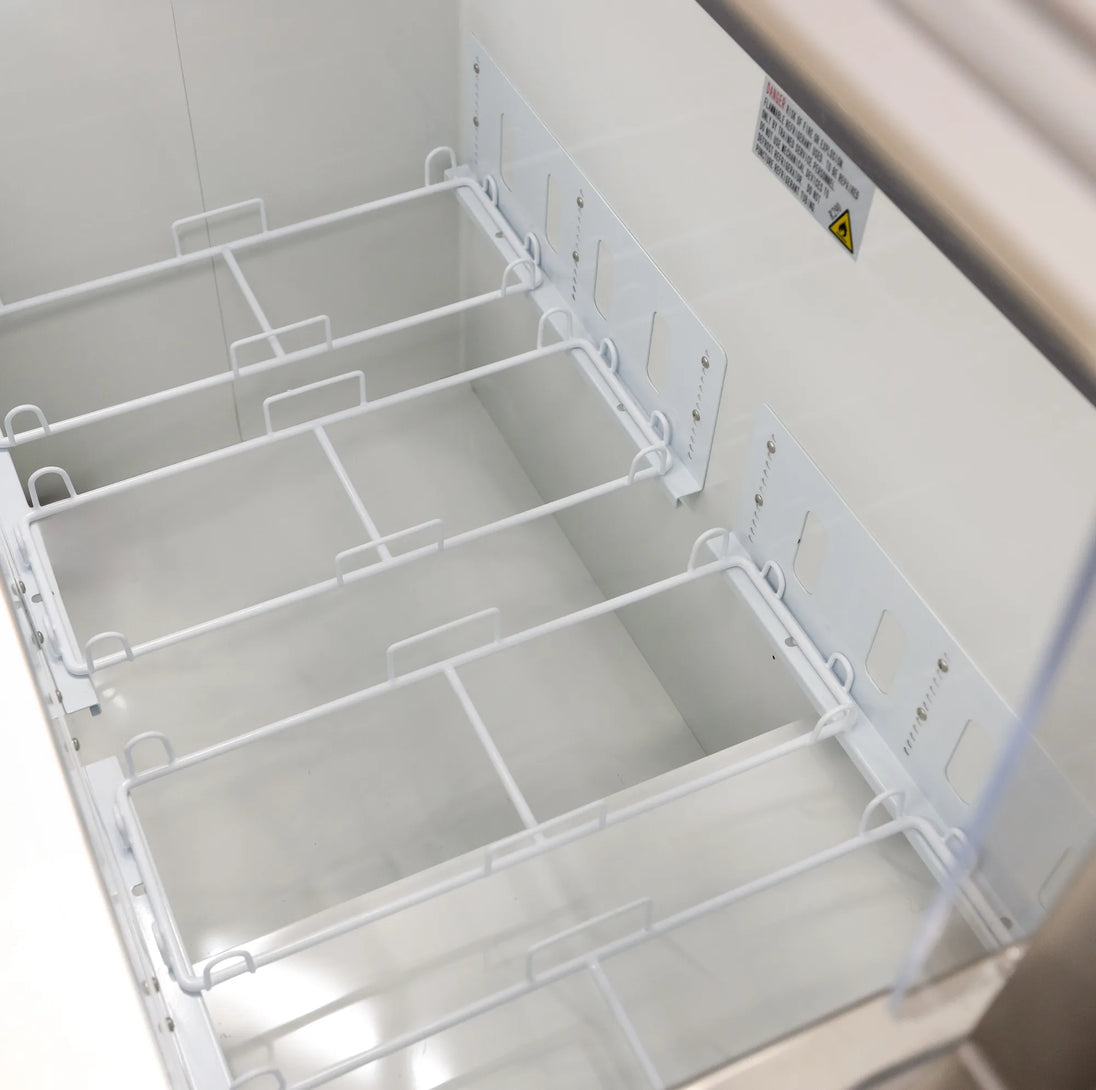

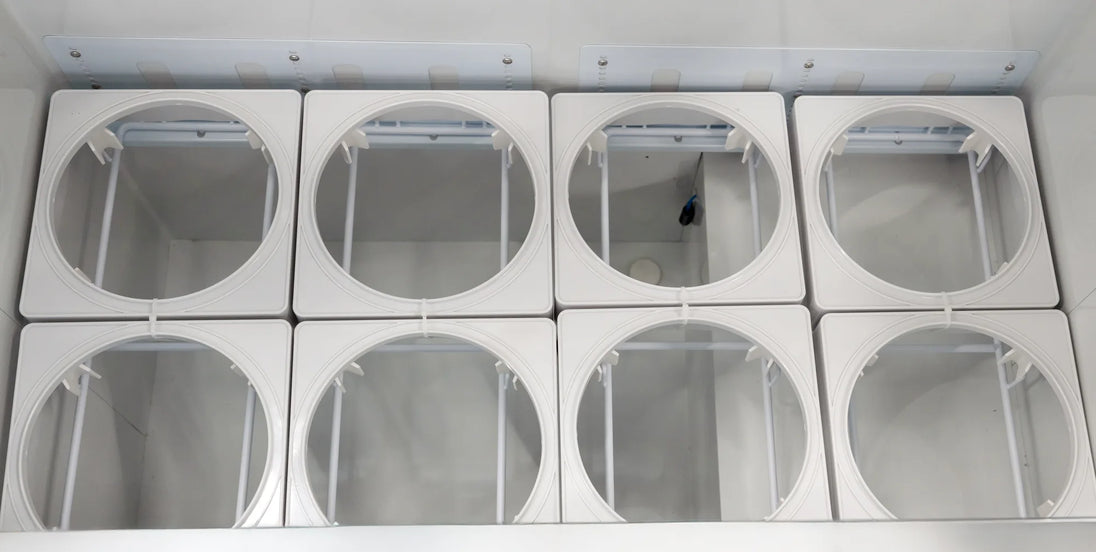

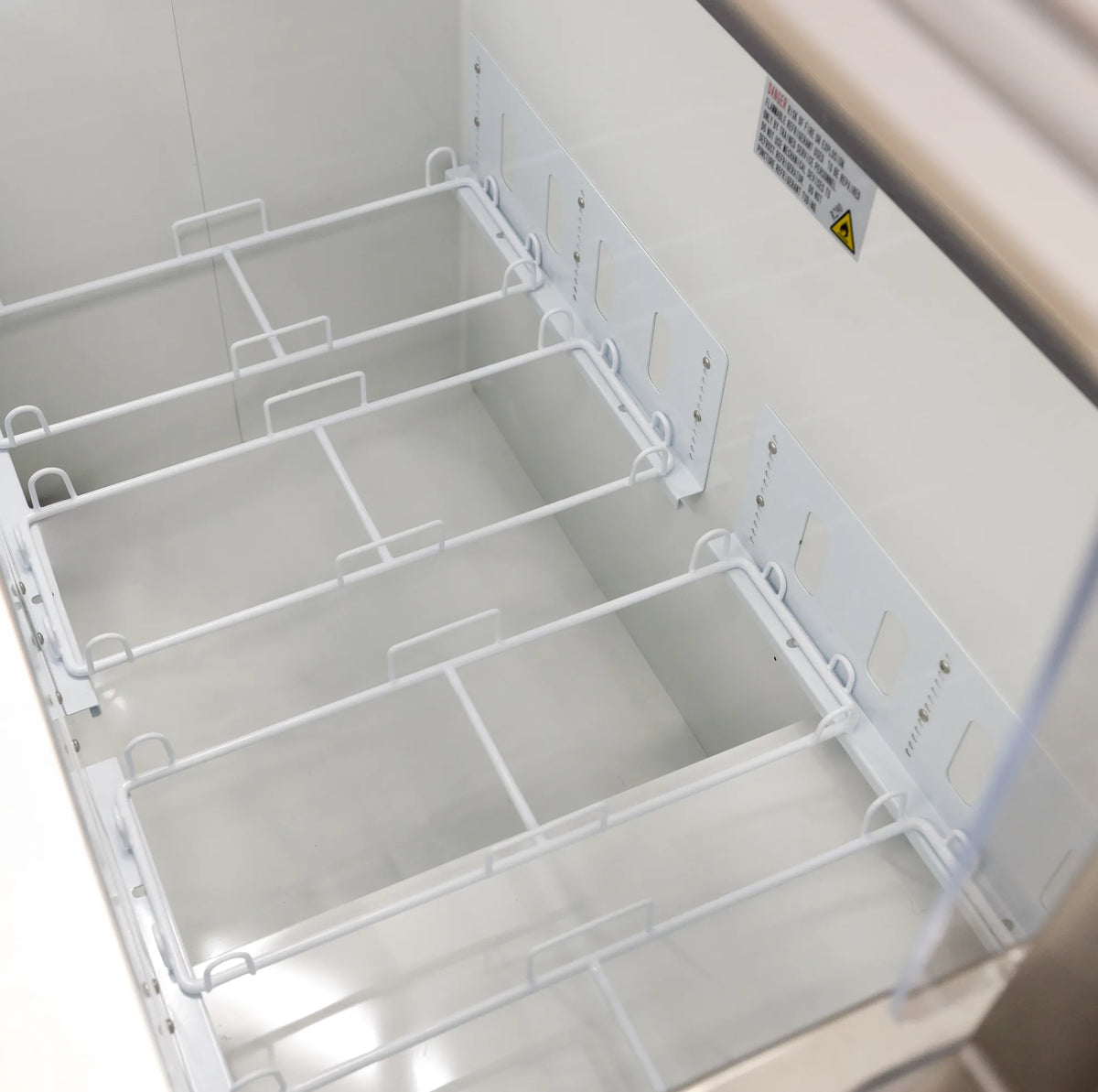

Sixteen Tubs on Display and Twelve in Storage

The cabinet holds 16 tubs in the dipping display and stores 12 more, all in three gallon tubs. It is the largest of the three dipping displays, ahead of the 47 inch model at 8 plus 4 tubs and the 68 inch model at 12 plus 8 tubs. Reserve tubs stay in the same cabinet so a flavor can be swapped without a separate freezer.

Ventilated Cooling Held to -15F

Omcan lists a ventilated cooling system with automatic defrost and a temperature range of -15F to 11F (-26C to -11.6C). The cabinet is insulated with cyclopentane foam and cooled with R290 refrigerant. Four casters allow the unit to be repositioned.

700 W and 7.1 Amps on a NEMA 5-15P Plug

The 89 inch model has two sliding doors with locks and four shelves. It draws 700 W and 7.1 A on a 115V/60Hz/1Ph supply with a NEMA 5-15P plug, the highest draw of the series. Glass construction keeps the tubs visible to customers.

Specifications

Model FR-CN-0089
Type Ice cream dipping display freezer with sneeze guard
Capacity 16 tub display and 12 tub storage (3 gallon tubs)
Exterior Dimensions (W x D x H) 88.7 Inch x 27.7 Inch x 51.4 Inch (2100 x 705 x 1305 mm)
Net Weight 347 lb (157.4 kg)
Gross Dimensions (W x D x H) 93.4 Inch x 32.1 Inch x 54.5 Inch (2372 x 817 x 1385 mm)
Gross Weight 517 lb (234.5 kg)
Shipping Dimensions 93.4 Inch x 32.5 Inch x 54.7 Inch
Shipping Weight 517 lb
Electrical 115V / 60Hz / 1Ph
Power 700 W
Amperage 7.1 A
Plug NEMA 5-15P
Refrigerant R290
Insulation Cyclopentane
Temperature Range -15F to 11F (-26C to -11.6C)
Cooling System Ventilated
Defrost Automatic
Doors 2 sliding doors
Shelves 4
Certifications cETLus, ETL Sanitation
UPC 690207501228
Country of Origin China

Warranty

Omcan lists a 2 year parts warranty, a 2 year labor warranty and a 5 year compressor warranty.
