Product Description

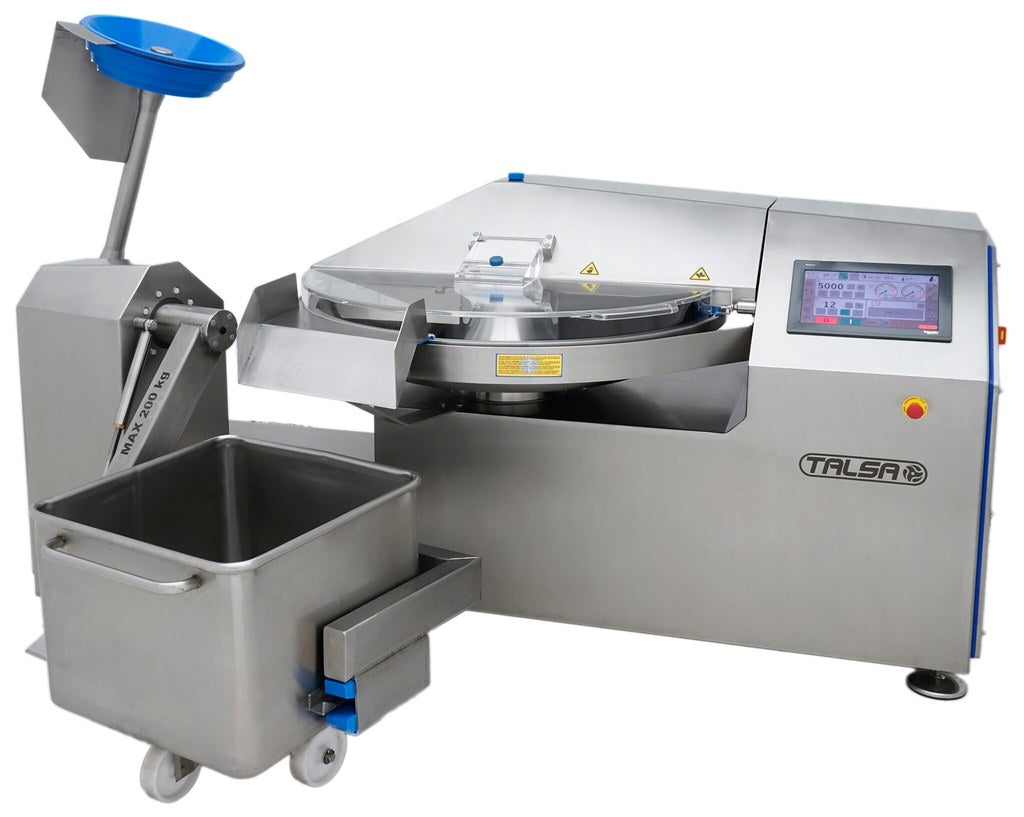

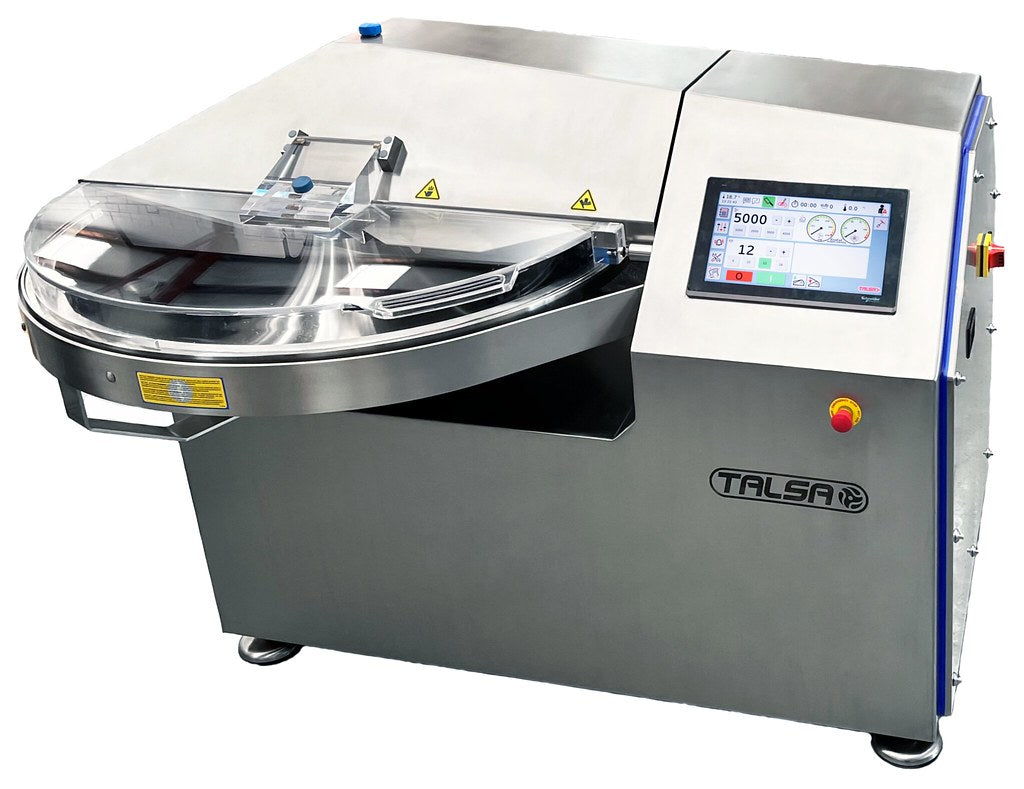

The Omcan FP-ES-0135 is a Talsa K135s Suprem bowl cutter with a 143 qt / 135 L bowl and a 35 kW / 48 HP machine power rating. It runs on 220 V, 60 Hz, 3 phase power.

Bowl and Capacity

The bowl is solid cast stainless steel with a liquid drain plug and holds 143 qt / 135 L. Omcan lists an approximate mixture bowl capacity of 155 lb / 70 kg and a bowl speed of 4-20 RPM.

Knife Motor and Speed

The knife motor is rated 30 kW / 41 HP, and variable knife speed is 500-5000 RPM. Thermal protection is fitted to all motors.

Construction and Access

Construction is AISI304 stainless steel. The unit has a front guard that prevents spillage and large interior access openings. Omcan lists a 125 A amperage, and no plug or wire is included.

Specifications

Model FP-ES-0135
Type Bowl Cutter
Bowl Volume 143 qt / 135 L
Mixture Bowl Capacity (Approx.) 155 lb / 70 kg
Machine Power 35 kW / 48 HP
Knife Motor Power 30 kW / 41 HP
Knife Speed (Variable) 500-5000 RPM
Bowl Speed 4-20 RPM
Electrical 220 V / 60 Hz / 3 Ph
Amps 125 A
Net Dimensions (W x D x H) 100 x 68 x 79 Inch
Net Weight 4409 lb / 2000 kg
Shipping Dimensions 85 x 71 x 73 Inch
Shipping Weight 4623 lb
Country of Origin Spain
UPC 690207478360

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
