Product Description

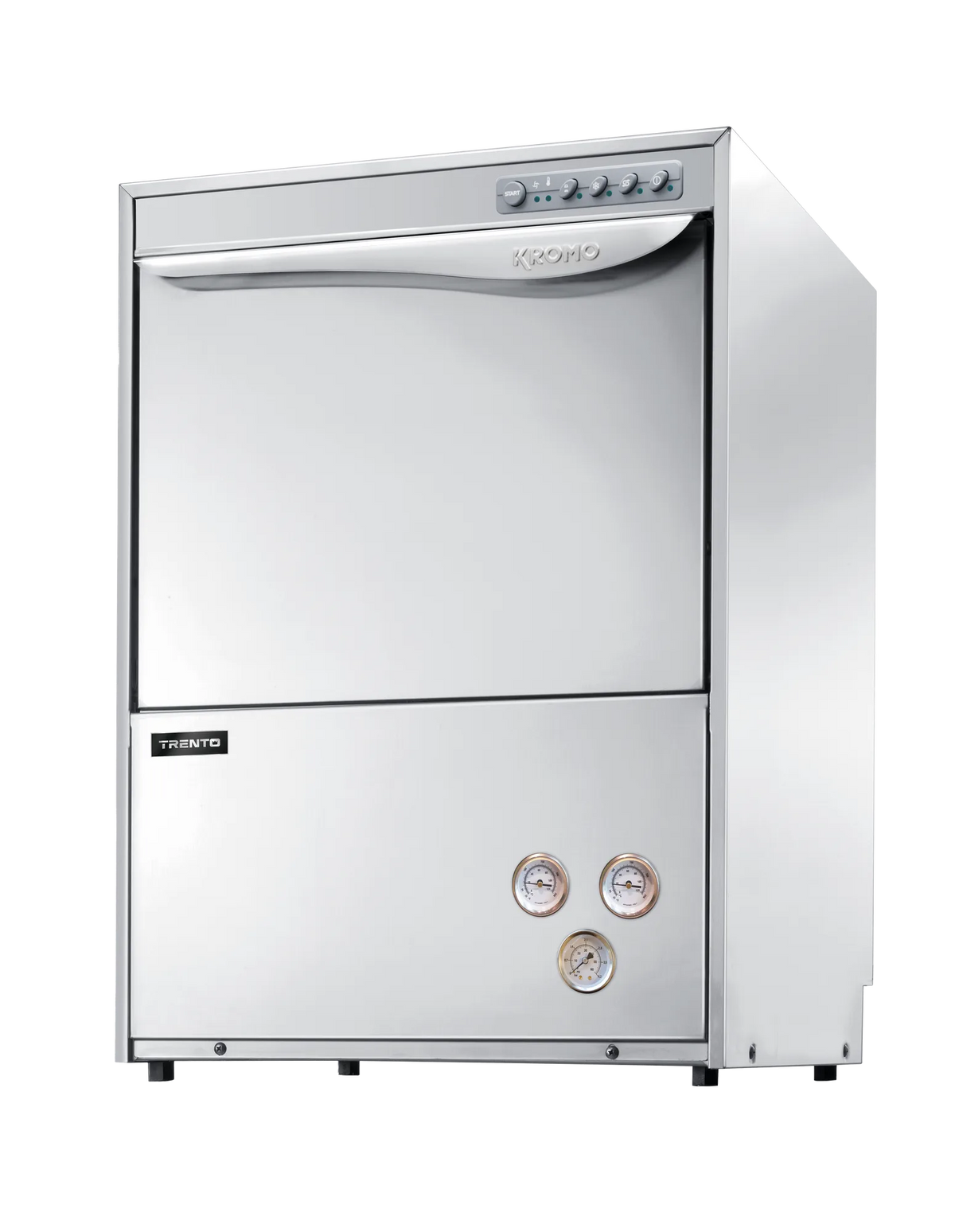

The Omcan DUPLA-50-USA is a Trento Kromo high-temperature undercounter dishwasher with a 20 by 20 inch rack, rated 220-240 V/60 Hz/1 Ph and 7090 W.

185 F Rinse and a 28.5 qt Tank

Omcan lists a rinsing temperature of 185 F (85 C) and a tank capacity of 28.5 qt (27 L). The tank heating element is 2940 W, and the booster holds 6 qt (5.67 L) with a 6530 W heating element.

30.1 Amps on 220-240 V

The unit is rated at 30.1 A on 220-240 V/60 Hz/1 Ph with a listed power of 7090 W. Omcan lists water consumption of 2.96 qt (2.8 L) per cycle and no plug or wire.

Net and Shipping Weights

Omcan lists a 150 lb net weight and a 169 lb shipping weight. Net dimensions are 23.43 by 24 by 33.31 inches, and shipping dimensions are 26 by 26 by 40 inches.

Specifications

Model DUPLA-50-USA
Series Trento Kromo
Type High-Temperature Undercounter Dishwasher
Rinsing Temperature 185 F / 85 C
Tank Capacity 28.5 qt / 27 L
Tank Heating Element 2940 W
Booster Capacity 6 qt / 5.67 L
Booster Heating Element 6530 W
Power 7090 W
Amperage 30.1 A
Electrical 220-240 V / 60 Hz / 1 Ph
Plug No Plug/Wire
Water Consumption per Cycle 2.96 qt / 2.8 L
Rack Dimensions 20 x 20 Inch / 508 x 508 mm
Net Dimensions (W x D x H) 23.43 x 24 x 33.31 Inch
Net Weight 150 lb / 68 kg
Shipping Dimensions 26 x 26 x 40 Inch
Shipping Weight 169 lb
Certifications cETLus, ETL Sanitation
Country of Origin Italy
UPC 690207491260

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
