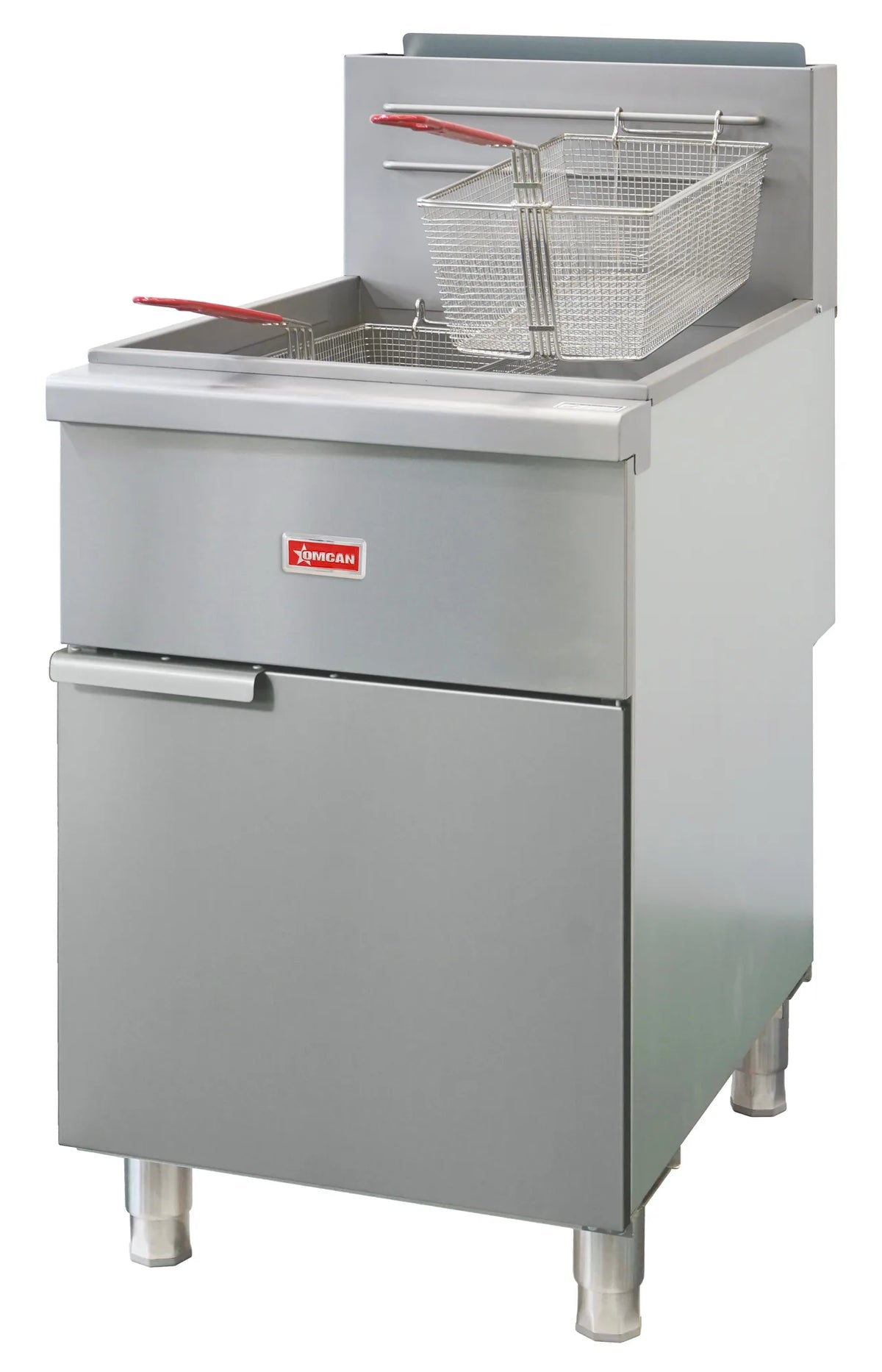

Omcan CE-CN-F5-NG 75-80 lb tube-fired natural gas floor fryer

Product Description

The Omcan CE-CN-F5-NG is a single tank tube-fired natural gas floor fryer with a 75 to 80 lb oil capacity, five burner tubes, and 150,000 BTU per hour of thermal power.

Five Tubes for a Large Single Tank

Five burner tubes run through the oil in a single tank, with a cold zone below them where sediment collects instead of burning. A 1 1/4 inch full port drain valve handles oil changes, which matters on a tank holding 75 to 80 lb.

Top of the Single Tank F-Series Floor Line

The CE-CN-F4-NG holds 40 to 50 lb at 120,000 BTU and the CE-CN-F3-NG holds 35 to 40 lb at 90,000 BTU. This model steps up to a 21 inch wide cabinet to carry the larger tank, rather than the 15.5 inch frame used by those two units.

Twin Baskets and Natural Gas Supply

A twin basket set with plastic-coated handles and four adjustable stainless steel legs are included. The unit is supplied for natural gas, with a 200 to 400 F temperature range.

Specifications

Model CE-CN-F5-NG
Type Single Tank Tube-Fired Floor Fryer, Natural Gas
Oil Capacity 75 To 80 Lb
BTU 150,000 BTU/hr
Burners 5 Tubes
Exterior Dimensions 21 Inch W x 34.4 Inch D x 45.3 Inch H
Shipping Weight 204 Lb
Gas Natural Gas
Temperature Range 200 To 400 F (93 To 205 C)
Drain Valve 1 1/4 Inch Full Port
Baskets Twin Baskets With Plastic-Coated Handles
Legs Four Adjustable Stainless Steel
Certifications cCSAus, CSA Sanitation

Warranty

Omcan covers the CE-CN-F5-NG with 1 year parts and 1 year labor.
