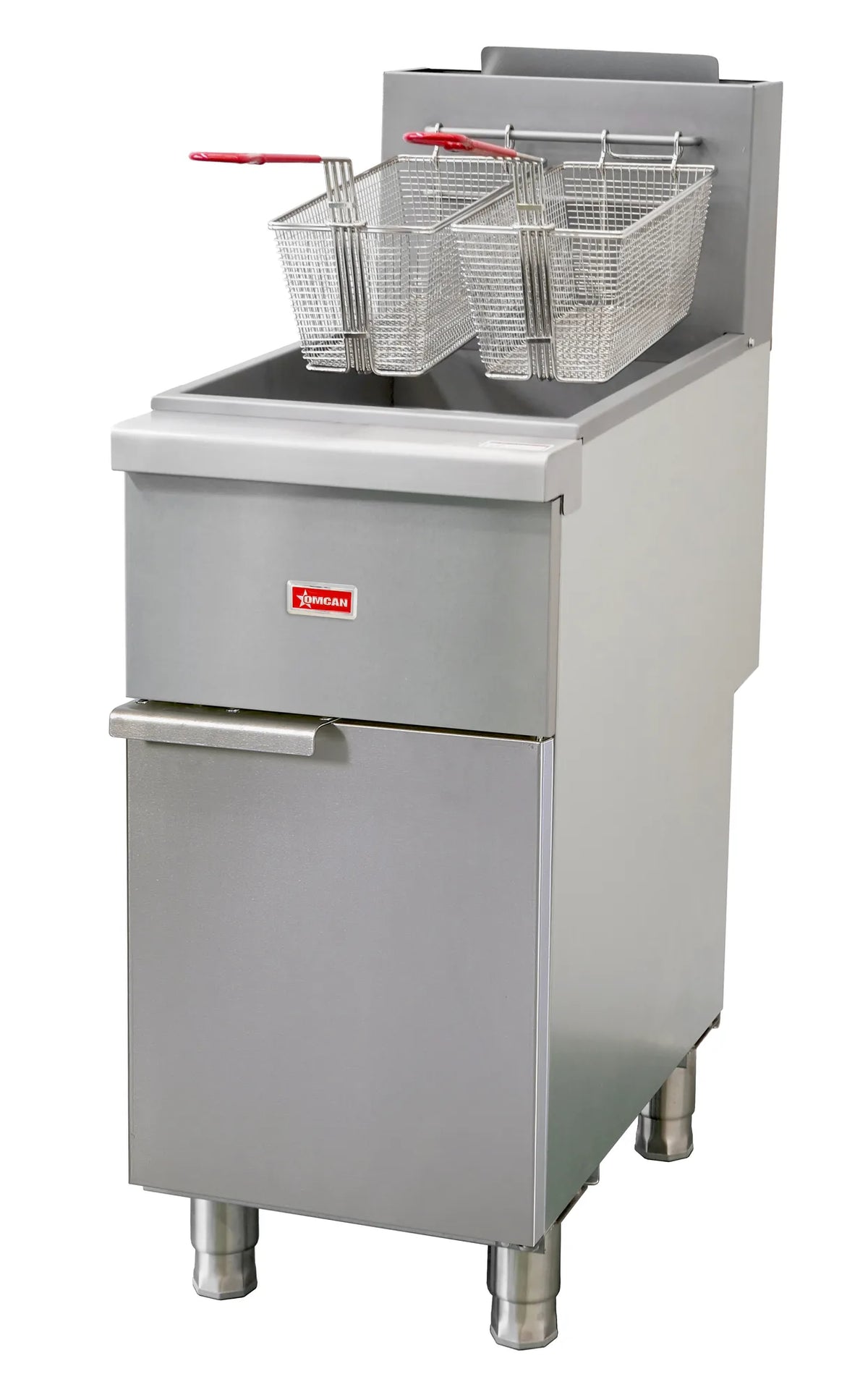

Omcan CE-CN-F4-NG tube-fired natural gas floor fryer 120000 BTU

Product Description

The Omcan CE-CN-F4-NG is a tube-fired natural gas floor fryer with a 40 to 50 lb oil capacity, four burner tubes, and 120,000 BTU per hour of thermal power.

Four Tubes for Faster Temperature Recovery

Omcan describes the tube heat exchange design as delivering faster temperature recovery and better efficiency, with a large cold zone below the tubes for longer oil life. The fourth tube adds heat over the three-tube CE-CN-F3-NG at the same 15.5 inch width.

Middle Model in the F-Series Floor Line

The CE-CN-F3-NG below it holds 35 to 40 lb at 90,000 BTU, and the CE-CN-F5-NG above it holds 75 to 80 lb at 150,000 BTU. A propane version of this model is sold separately as the CE-CN-F4-LP.

Twin Baskets, Full Port Drain, Natural Gas

Twin baskets with plastic-coated handles and four adjustable stainless steel legs are included, and a 1.25 inch full port drain valve is fitted. The fryer is supplied for natural gas.

Specifications

Model CE-CN-F4-NG
Type Tube-Fired Floor Fryer, Natural Gas
Oil Capacity 40 To 50 Lb (20 To 23 L)
BTU 120,000 BTU/hr
Burners 4 Tubes
Exterior Dimensions 15.5 Inch W x 31.3 Inch D x 45.3 Inch H
Shipping Weight 156 Lb
Gas Natural Gas
Temperature Range 200 To 400 F (93 To 205 C)
Drain Valve 1.25 Inch Full Port
Tank Material 439 Stainless Steel
Baskets Twin Baskets With Plastic-Coated Handles
Certifications cCSAus, CSA Sanitation

Warranty

Omcan covers the CE-CN-F4-NG with 1 year parts and labor.
