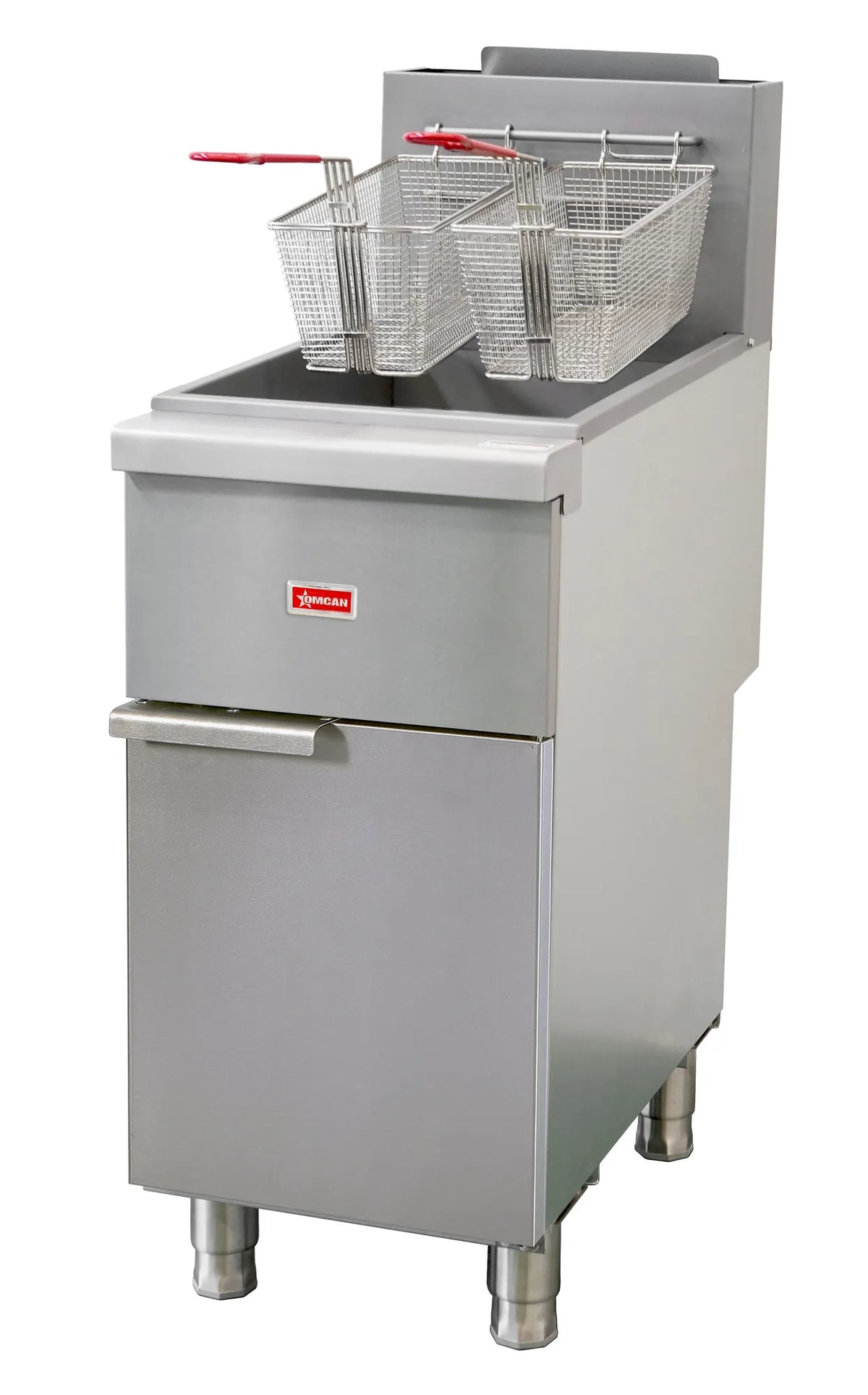

Omcan CE-CN-F3-NG tube-fired natural gas floor fryer 90000 BTU

Product Description

The Omcan CE-CN-F3-NG is a tube-fired natural gas floor fryer with a 35 to 40 lb oil capacity, three burners, and 90,000 BTU per hour of thermal power.

Tube Heat Exchange in a Single Tank

Three burner tubes run through the oil in a 439 stainless steel tank, leaving a cold zone beneath them where sediment settles instead of burning, which helps extend oil life compared with an open pot design. A 1.25 inch full port drain valve handles oil changes.

Entry Point in the F-Series Floor Line

This is the smallest of the tube-fired floor models. The CE-CN-F4-NG steps up to four tubes and 120,000 BTU for 40 to 50 lb of oil in the same 15.5 inch width, and the CE-CN-F5-NG reaches 75 to 80 lb at 150,000 BTU. A propane version of this model is sold separately as the CE-CN-F3-LP.

Twin Baskets and Adjustable Legs Included

The fryer ships with a twin basket set with plastic-coated handles and four adjustable stainless steel legs, supplied for natural gas without a conversion kit.

Specifications

Model CE-CN-F3-NG
Type Tube-Fired Floor Fryer, Natural Gas
Oil Capacity 35 To 40 Lb (17 To 20 L)
BTU 90,000 BTU/hr
Burners 3
Exterior Dimensions 15.5 Inch W x 31.3 Inch D x 45.3 Inch H
Shipping Weight 145 Lb
Gas Natural Gas
Temperature Range 200 To 400 F (93 To 205 C)
Drain Valve 1.25 Inch Full Port
Tank Material 439 Stainless Steel
Baskets Twin Baskets With Plastic-Coated Handles
Certifications cCSAus, CSA Sanitation

Warranty

Omcan covers the CE-CN-F3-NG with 1 year parts and 1 year labor.
