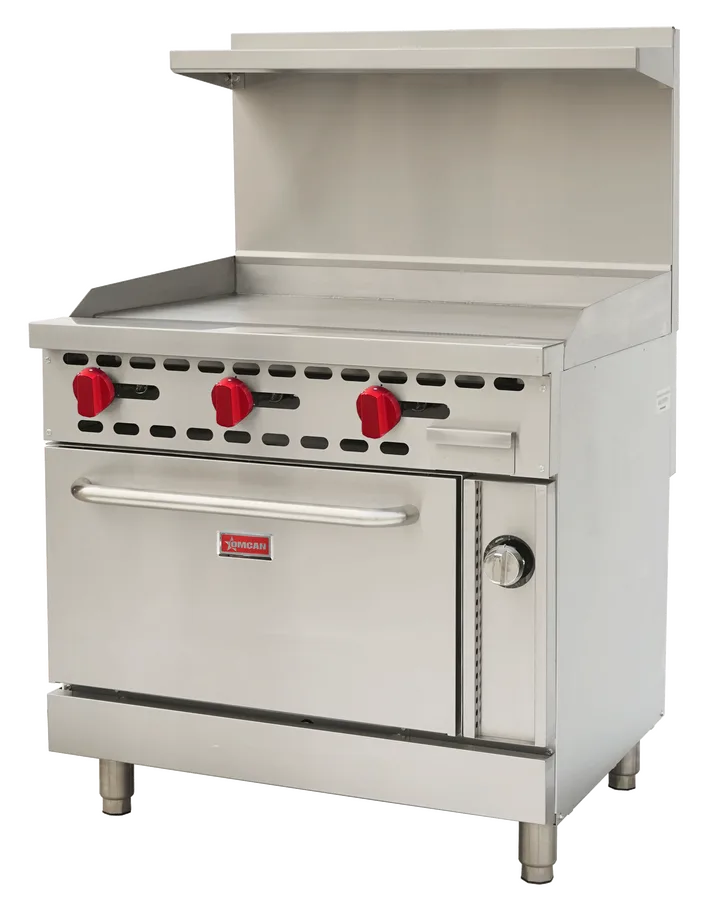

Omcan CE-CN-0914G-RC 36 inch natural gas range with 36 inch griddle and oven

Product Description

The Omcan CE-CN-0914G-RC is a 36 Inch natural gas commercial range with a full 36 Inch griddle top and a standard oven, rated at 93,000 BTU total.

A Full-Width 36 Inch by 22 Inch Griddle

The griddle plate measures 36 Inch by 22 Inch and is 5/8 Inch thick, with a splash guard and an oil collector with handle. Three U-shaped griddle burners are rated at 21,000 BTU each.

Oven Burner at 30,000 BTU Below the Griddle

The oven is thermostat controlled from 250 F to 550 F with a 30,000 BTU U-shaped burner and a thermal coupling safety valve. Interior dimensions are 26.5 Inch by 25.8 Inch by 13.9 Inch.

Griddle Top in Place of Open Burners

This model replaces the open burner top of the other 36 Inch ranges with a griddle plate, so its listed total is 93,000 BTU. Omcan lists compatibility with a 3/4 Inch NPT gas connection.

Specifications

Model CE-CN-0914G-RC
Type Gas range, 36 Inch griddle and standard oven
Gas Type Natural Gas
Griddle Burners 3 at 21,000 BTU per hour each
Oven Burner 30,000 BTU per hour
Total Input 93,000 BTU
Griddle Plate 36 Inch x 22 Inch, 0.625 Inch thick
Oven Interior 26.5 Inch x 25.8 Inch x 13.9 Inch
Oven Temperature Range 250 F to 550 F (121.1 C to 287.8 C)
Exterior Dimensions 36 Inch W x 32.6 Inch D x 56.7 Inch H
Net Weight 456 lb
Shipping Weight 518 lb
Shipping Dimensions 40.9 Inch x 40.5 Inch x 35 Inch
Certifications cETLus, ETL Sanitation
Country of Origin China

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
