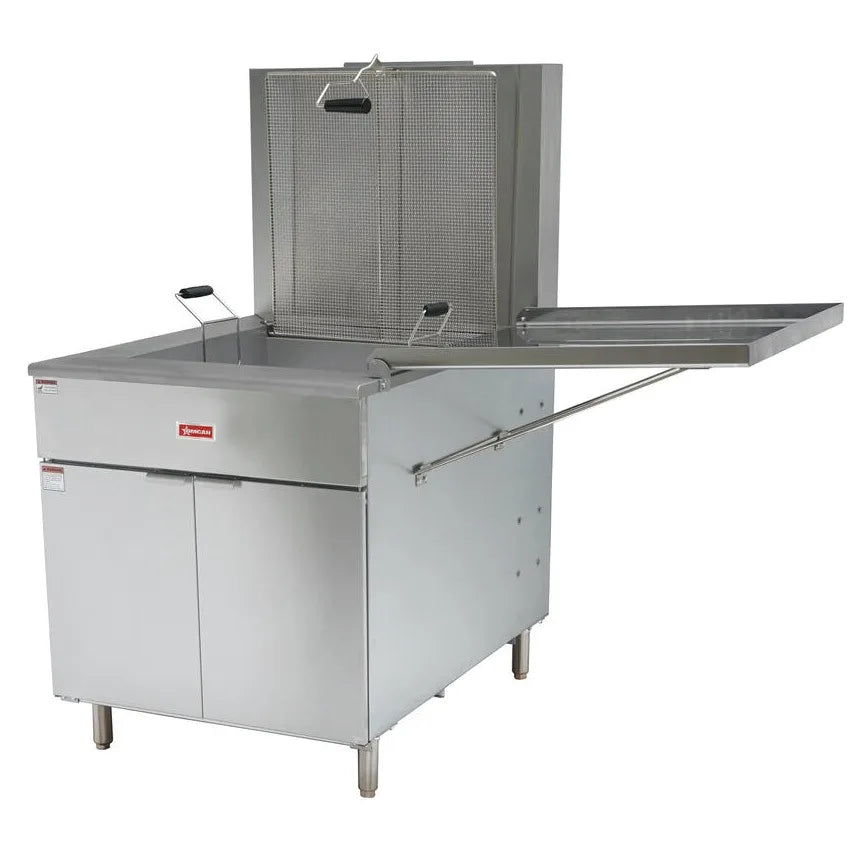

Omcan CE-CN-0170 170 lb floor funnel cake and donut fryer

Product Description

The Omcan CE-CN-0170 is a floor model funnel cake and donut fryer with a 170 lb oil capacity and a 120,000 BTU per hour natural gas rating.

A 24 Inch Wide Flat Bottom Pot

The flat-bottom fry pot measures 24 inches wide by 24.9 inches deep, wider than the 18 inch pot on the CE-CN-0125, which gives more surface for wet-batter product such as funnel cake and donuts. A built-in drip tray with a protective lid function is part of the cabinet.

Four Tube Burners at 30,000 BTU Each

Four tube burners at 30,000 BTU each supply 120,000 BTU total, controlled by millivolt controls. The temperature range is 200 to 400 F with a maximum limit of 450 F.

Natural Gas, Optional Propane Kit

The unit is supplied for natural gas and can be converted to propane with an optional conversion kit sold separately as item AS860. One fry basket is included, and the pot is stainless steel with galvanized sides.

Specifications

Model CE-CN-0170
Type Floor Model Funnel Cake and Donut Fryer, Natural Gas
Oil Capacity 170 Lb
BTU 120,000 BTU/hr (30,000 Per Burner)
Burners 4 Tube Burners
Exterior Dimensions 56.8 Inch W x 41.3 Inch D x 58 Inch H
Fry Pot Dimensions 24 Inch W x 24.9 Inch D
Shipping Weight 310 Lb
Gas Natural Gas, Convertible To Propane With Optional Kit
Temperature Range 200 To 400 F (93 To 204 C), Maximum Limit 450 F
Tank Material Stainless Steel Pot With Galvanized Sides
Controls Millivolt
Baskets 1 Fry Basket
Certifications cETLus, ETL Sanitation

Warranty

Omcan covers the CE-CN-0170 with 1 year parts and 1 year labor.
