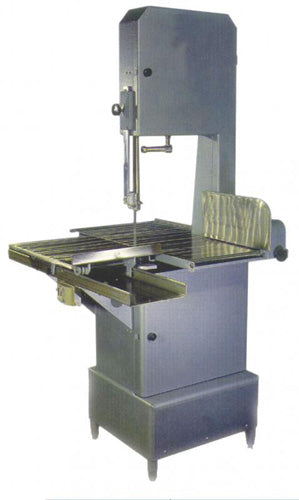

Omcan BS-VE-3200-S floor band saw with 126 inch blade

Product Description

The Omcan BS-VE-3200-S is a floor band saw with a 126 Inch blade and a 3 HP (2.24 kW) motor running on 220 V, 60 Hz, single phase at 11 A. It has a sliding cutting table.

Blade and Cutting Capacity

Omcan lists a 126 Inch blade measuring 0.78 x 12.60 Inch and a cutting capacity of 15 x 18 Inch (H x W).

Steel Frame With an Aluminum Head

Omcan lists steel fabrication with electrostatic oven paint, an aluminum head and a stainless steel sliding table on a four-wheel base that runs on rails. The legs are adjustable.

Single Phase Electrical

The saw draws 11 A on 220 V, 60 Hz, 1 Ph. The three phase version of this saw is listed separately as BS-VE-3200-T.

Specifications

Model BS-VE-3200-S
Type Floor Band Saw
Blade Length 126 Inch
Blade Dimensions 0.78 x 12.60 Inch
Cutting Capacity (H x W) 15 x 18 Inch
Cutting Table Sliding
Power 3 HP / 2.24 kW
Amperage 11 A
Electrical 220 V / 60 Hz / 1 Ph
Net Weight 374 lb (170 kg)
Shipping Dimensions 48 x 40 x 83 Inch
Shipping Weight 555 lb
Certifications cETLus, ETL Sanitation
UPC 690207102722

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
