Product Description

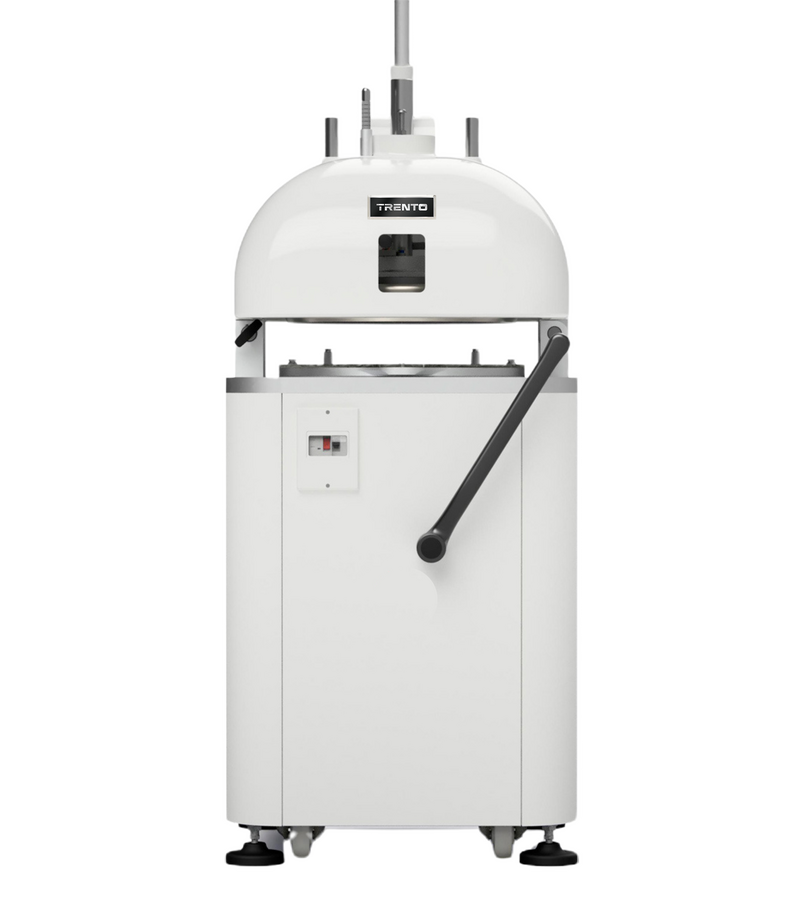

The Omcan BE-IT-0030M is a Trento manual bun and dough rounding divider with 30 divisions. It is rated 220 V/60 Hz/3 Ph.

Three Levers for Pressing, Cutting and Rounding

Omcan describes a mechanically driven machine with three levers controlling the pressing, cutting and end rounding functions. Sizing is adjusted with a yoke with a numerical scale. The unit produces uniform round buns.

Product Weight Range and Basin Capacity

Omcan lists a minimum product weight of 1.4 oz (40 g) and a maximum product weight of 4.8 oz (135 g). Basin capacity is listed as 8.8 lb (4 kg). Head diameter is listed as 15.7 inch (400 mm).

Materials of Construction

Omcan lists an electro-welded painted steel frame and basins in anodized anticorodal aluminum. Knives and grids are listed in stainless steel 304. The press surfaces are listed in food-grade plastic PE500, and the plates in food-grade plastic PETG.

Specifications

Model BE-IT-0030M
Item Number 47583
Type Manual Dough Rounding Divider
Divisions 30
Min Product Weight 1.4 oz (40 g)
Max Product Weight 4.8 oz (135 g)
Basin Capacity 8.8 lb (4 kg)
Head Diameter 15.7 Inch (400 mm)
Electrical 220 V/60 Hz/3 Ph
Plug NEMA L15-20 P

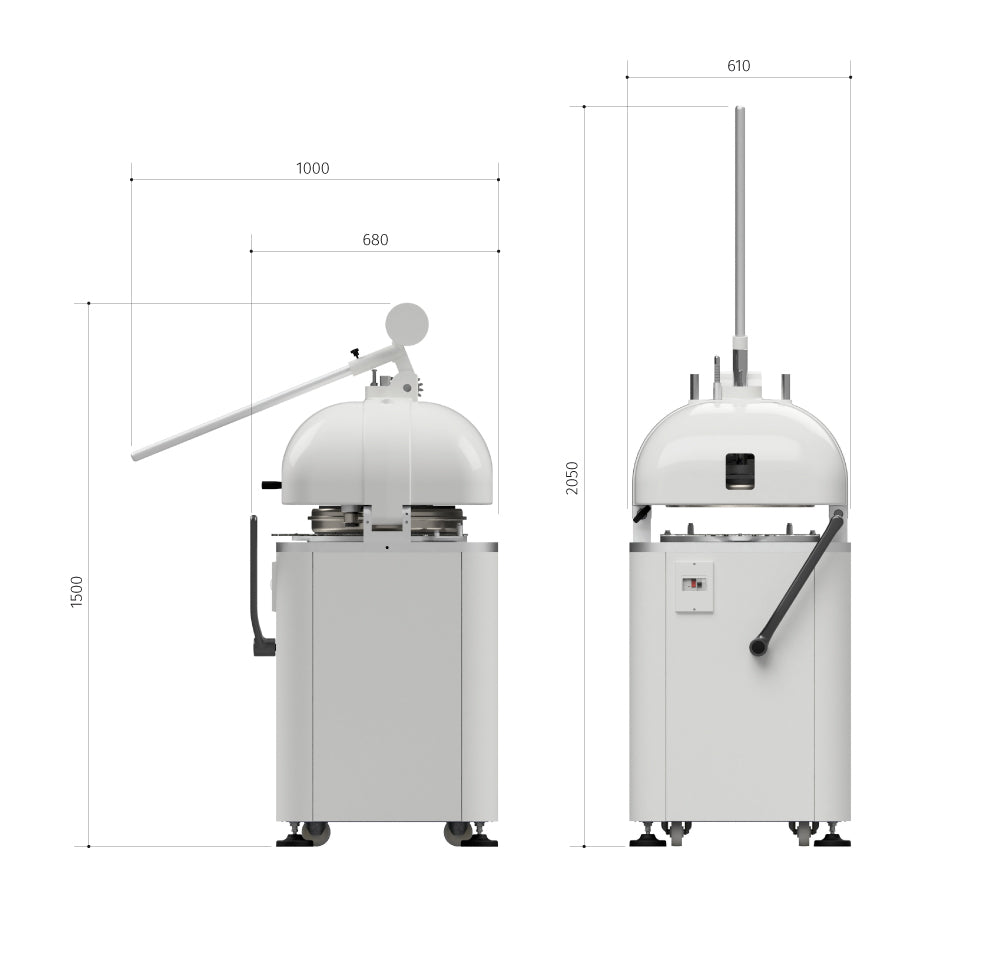

Net Dimensions 24 x 26.8 x 80.7 Inch (610 x 680 x 2050 mm)
Net Weight 396.8 lb (180 kg)
Shipping Dimensions 26 x 28 x 60 Inch
Shipping Weight 425 lb
Certifications cETLus, ETL Sanitation
UPC 690207475833
Country of Origin Italy

Warranty

Omcan lists a 1 Year Parts and 1 Year Labor warranty.
