Product Description

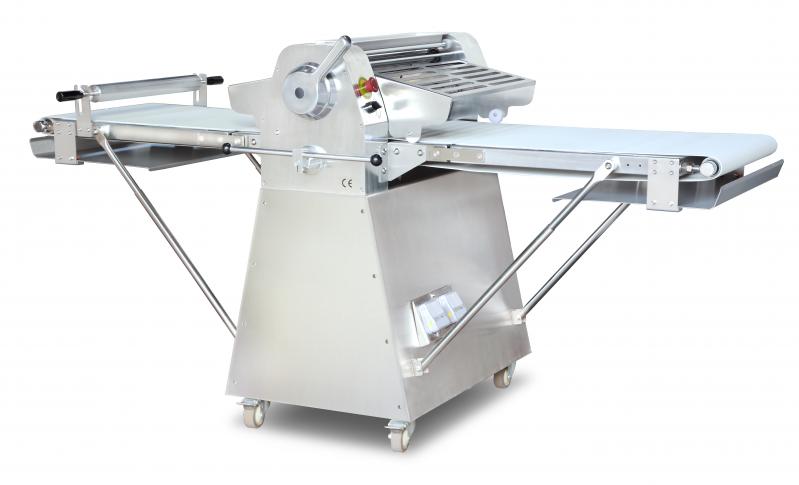

The Omcan BE-CN-2083-FSS is a stainless steel floor model dough sheeter with an 88 inch conveyor length, a 0.75 HP (550 W) motor, and 220V/60Hz/1Ph power.

3.5 by 20.5 Inch Rollers with a 1 to 35 mm Gap

Omcan lists a roller size of 3.5 inches in diameter by 20.5 inches wide. The roller gap is adjustable from 1 to 35 mm, and roller speed is listed at 124 r/min.

Conveyor Belt 19.75 Inches Wide at 18 to 32 m/min

Omcan lists a conveyor belt width of 19.75 inches (501.7 mm), a conveyor width of 22.5 inches (571.5 mm) and a belt speed of 18 to 32 m/min. Maximum dough capacity is listed at 11 lb (5 kg).

Working and Resting Position Dimensions

Omcan lists working position dimensions of 35 by 108 by 46 inches (D x W x H) and resting position dimensions of 35 by 63 inches (W x H). The net weight is listed at 419 lb and the shipping weight at 565 lb.

Specifications

Model BE-CN-2083-FSS
Type Stainless Steel Floor Model Dough Sheeter
Electrical 220V / 60 Hz / 1 Ph
Power 0.75 HP / 550 W
Roller Size (Dia. x W) 3.5 x 20.5 Inch
Roller Adjustable Gap 1-35 mm
Conveyor Belt Width 19.75 Inch / 501.7 mm
Conveyor Width 22.5 Inch / 571.5 mm
Conveyor Belt Speed 18-32 m/min
Roller Speed 124 r/min
Maximum Dough Capacity 11 lb / 5 kg
Working Position Dimensions (D x W x H) 35 x 108 x 46 Inch / 900 x 2750 x 1173 mm
Resting Position Dimensions (W x H) 35 x 63 Inch / 900 x 1600 mm
Net Weight 419 lb / 190 kg
Shipping Dimensions 48 x 40 x 74 Inch
Shipping Weight 565 lb
Certifications QPS
Country of Origin China
UPC 690207441357

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
