Product Description

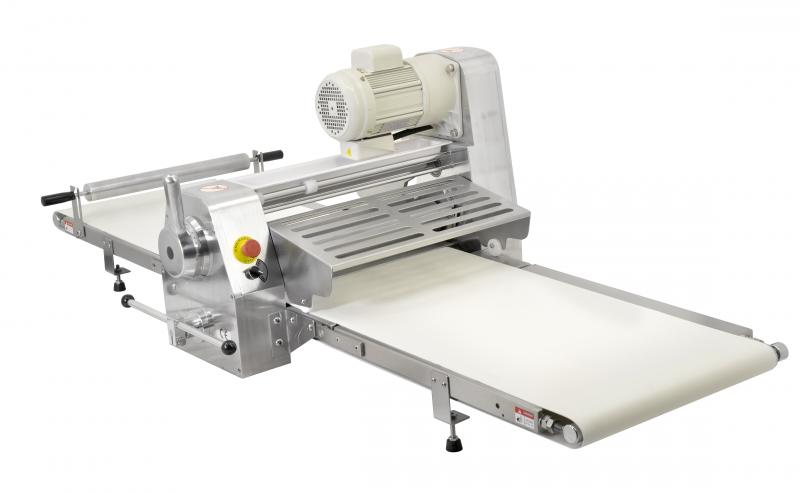

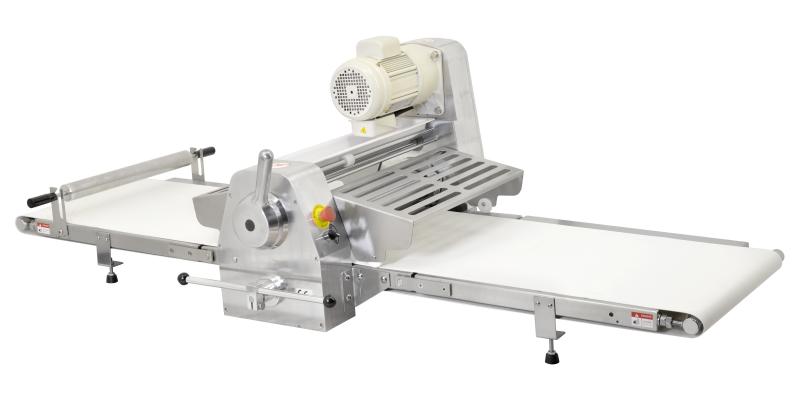

The Omcan BE-CN-2083-CSS is a stainless steel table top dough sheeter with a 0.75 HP (0.55 kW) motor and 220V/60Hz/1Ph power.

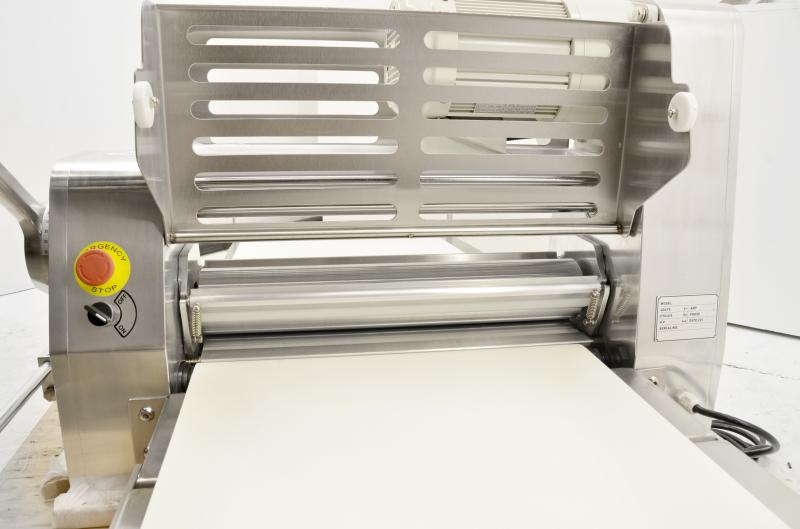

3.5 by 20.5 Inch Rollers with a 1 to 35 mm Gap

Omcan lists a roller size of 3.5 inches in diameter by 20.5 inches wide. The roller gap is adjustable from 1 to 35 mm, and roller speed is listed at 124 r/min.

Conveyor Belt 19.75 Inches Wide at 18 to 32 m/min

Omcan lists a conveyor belt width of 19.75 inches (501.7 mm), a conveyor width of 22.5 inches (571.5 mm) and a belt speed of 18 to 32 m/min. Maximum dough capacity is listed at 11 lb (5 kg).

Working and Resting Position Dimensions

Omcan lists working position dimensions of 36 by 88 by 24 inches (D x W x H) and resting position dimensions of 32 by 37 inches (W x H). The weight is listed at 275.6 lb and the shipping weight at 341 lb.

Specifications

Model BE-CN-2083-CSS
Type Stainless Steel Table Top Dough Sheeter
Electrical 220V / 60 Hz / 1 Ph
Power 0.75 HP / 0.55 kW
Roller Size (Dia. x W) 3.5 x 20.5 Inch
Roller Adjustable Gap 1-35 mm
Conveyor Belt Width 19.75 Inch / 501.7 mm
Conveyor Width 22.5 Inch / 571.5 mm
Conveyor Belt Speed 18-32 m/min
Roller Speed 124 r/min
Maximum Dough Capacity 11 lb / 5 kg
Working Position Dimensions (D x W x H) 36 x 88 x 24 Inch / 912 x 2230 x 604 mm

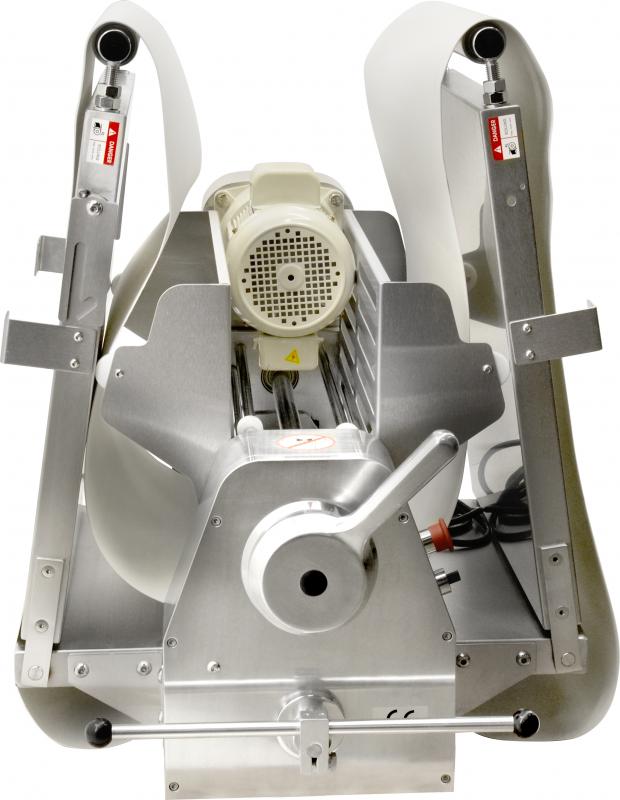

Resting Position Dimensions (W x H) 32 x 37 Inch / 805 x 930 mm
Weight 275.6 lb / 125 kg
Shipping Dimensions 38 x 29 x 41 Inch
Shipping Weight 341 lb
Certifications QPS
Country of Origin China
UPC 690207421540

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
