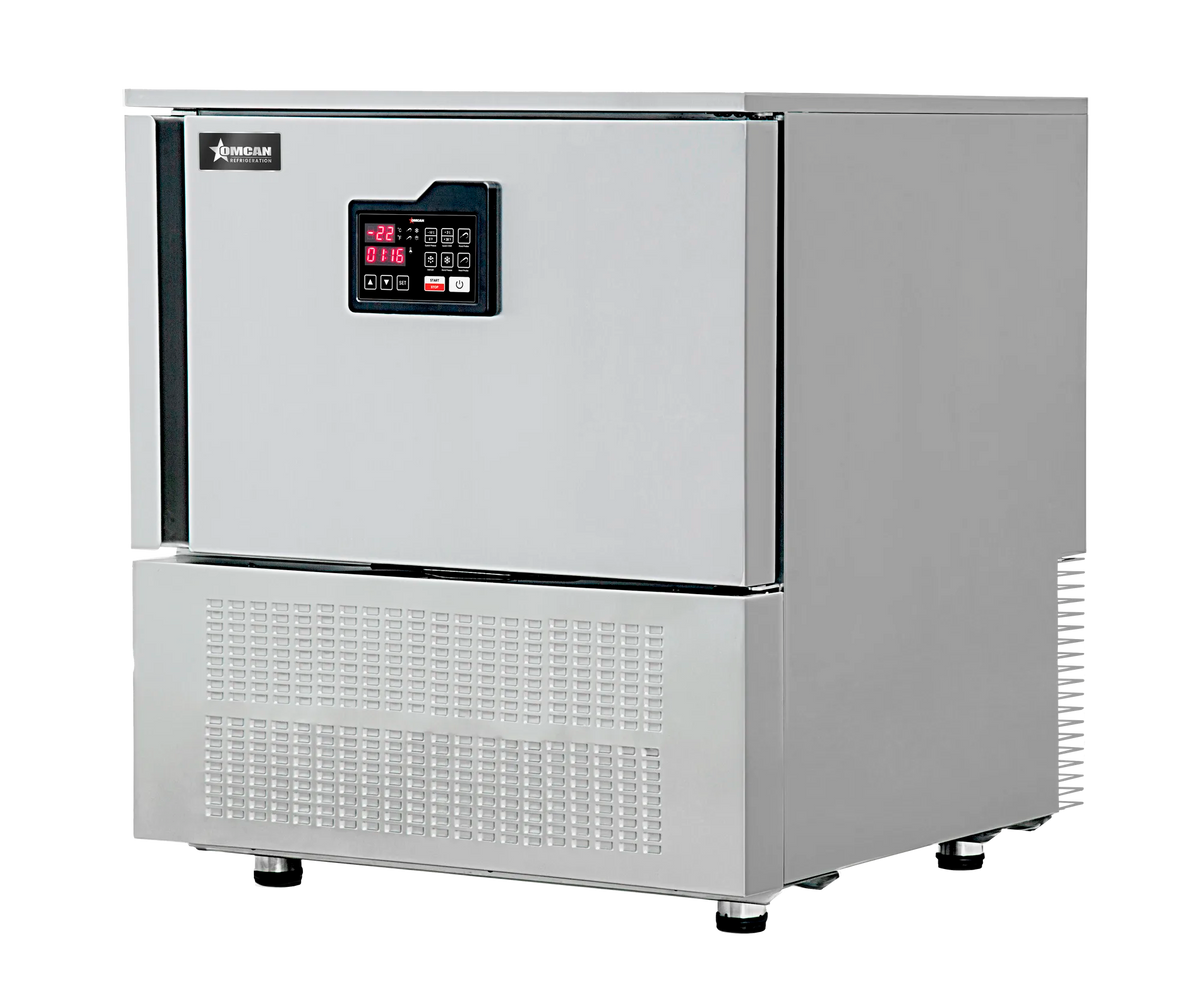

Omcan BC-CN-0005 30 inch countertop blast chiller 5 GN 1/1 pan capacity

Product Description

The Omcan BC-CN-0005 is a 30 inch countertop blast chiller with a capacity of five GN 1/1 pans and a 110V single phase electrical requirement.

Five Full Size Pans Included

Omcan lists five GN 1/1 full size pans at 1.5 inch depth as included, and states the chiller accommodates full size pans at 2.5 inch and 4 inch depth, adjustable. It sits between the 3 pan BC-CN-0003 and the 10 pan floor model BC-CN-0010.

Chilling Times Printed by Omcan

Omcan lists a yield of 90C to 3C in 90 minutes and 90C to -18C in 240 minutes, the same figures as the other BC-CN models. The refrigerant is R290 and the foaming agent is cyclopentane.

110V at 660 Watts and 6.4 Amps

Omcan lists 110V / 60Hz / 1Ph, 660 W and 6.4 A with a NEMA 5-15P plug. The unit is listed as cETLus and ETL Sanitation certified.

Specifications

Model BC-CN-0005
Type Countertop Blast Chiller
Capacity 5 x GN 1/1
Net Dimensions 30 x 30 x 34 inches (751 x 763 x 842 mm)
Net Weight 146 lb (66 kg)
Shipping Weight 204 lb
Shipping Dimensions 33 x 33 x 35 inches
Electrical 110V / 60Hz / 1Ph
Power 660 W
Amperage 6.4 A
Plug NEMA 5-15P
Refrigerant R290
Foaming Agent Cyclopentane
Yield 90C to 3C in 90 minutes; 90C to -18C in 240 minutes
Certifications cETLus, ETL Sanitation
UPC 690207414559

Warranty

Omcan lists a 1 year parts warranty and a 1 year labor warranty.
