Product Description

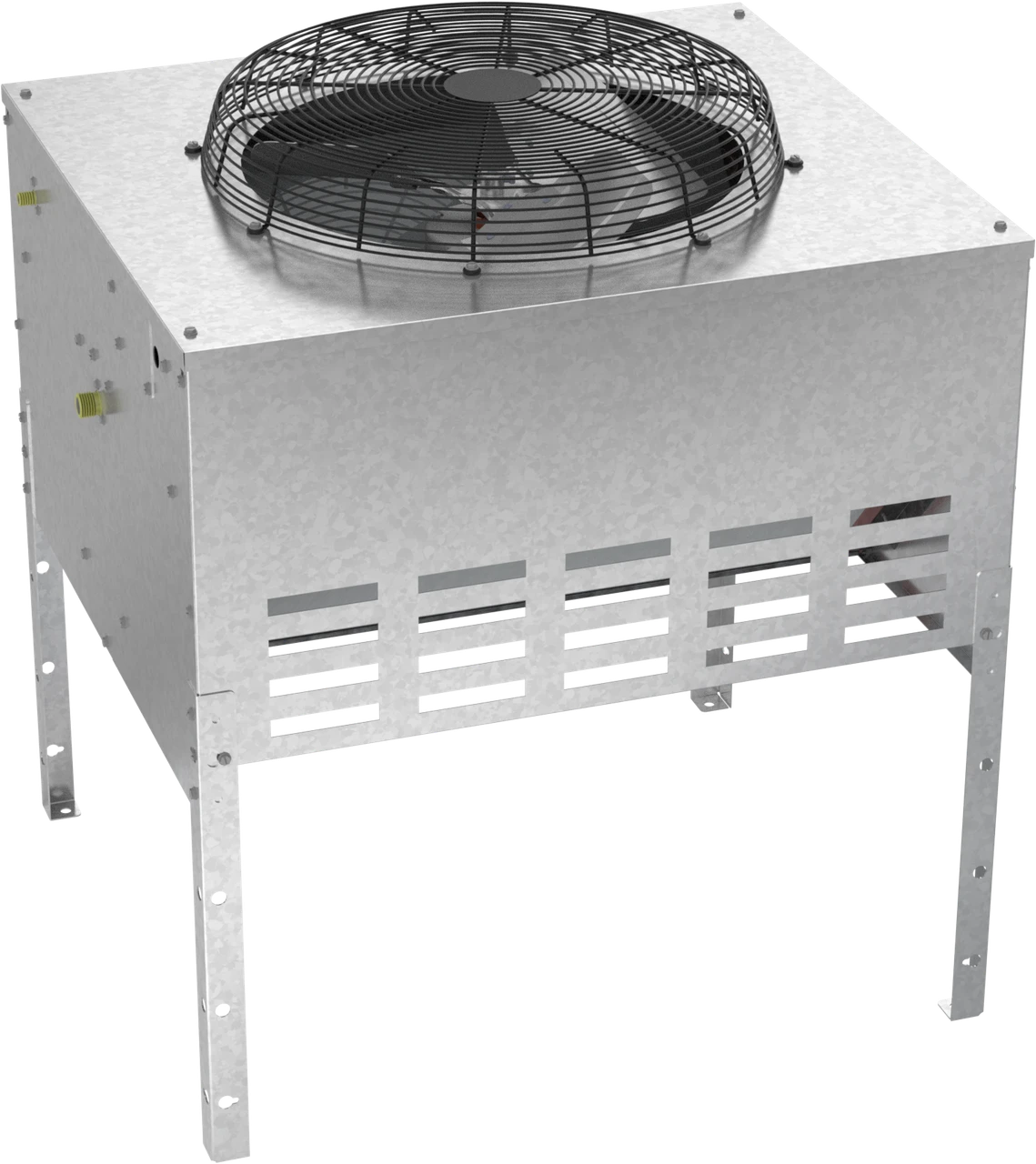

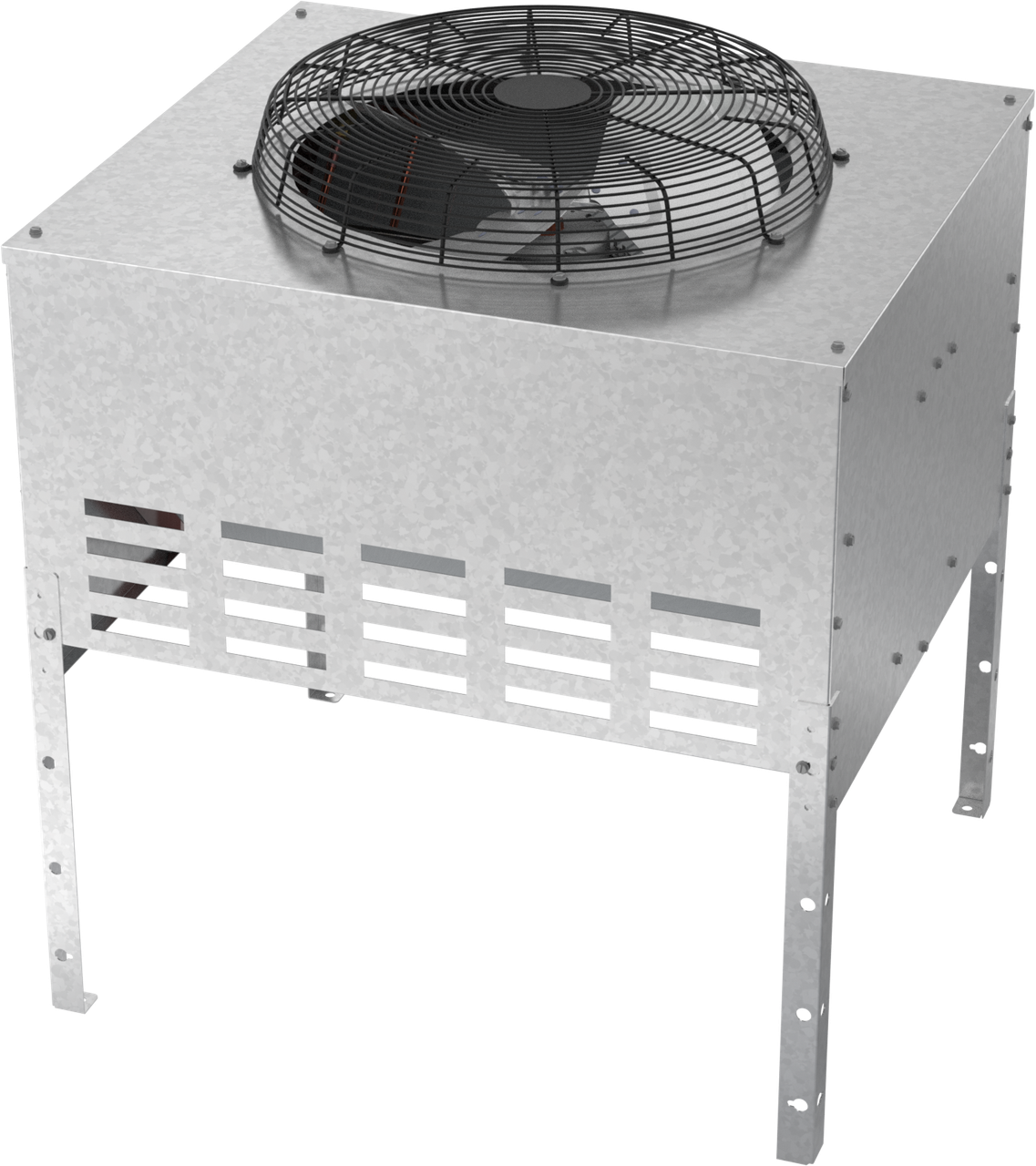

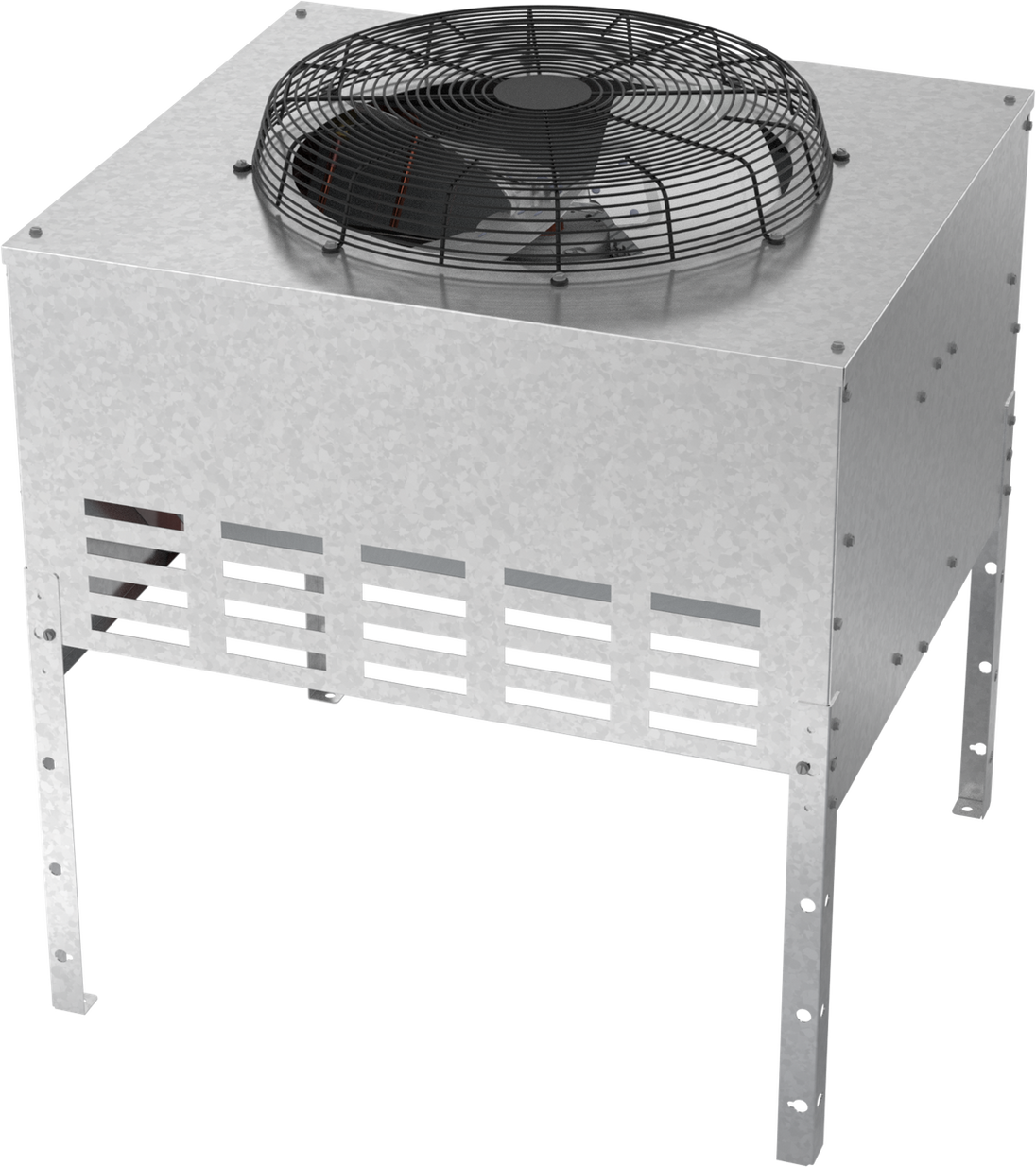

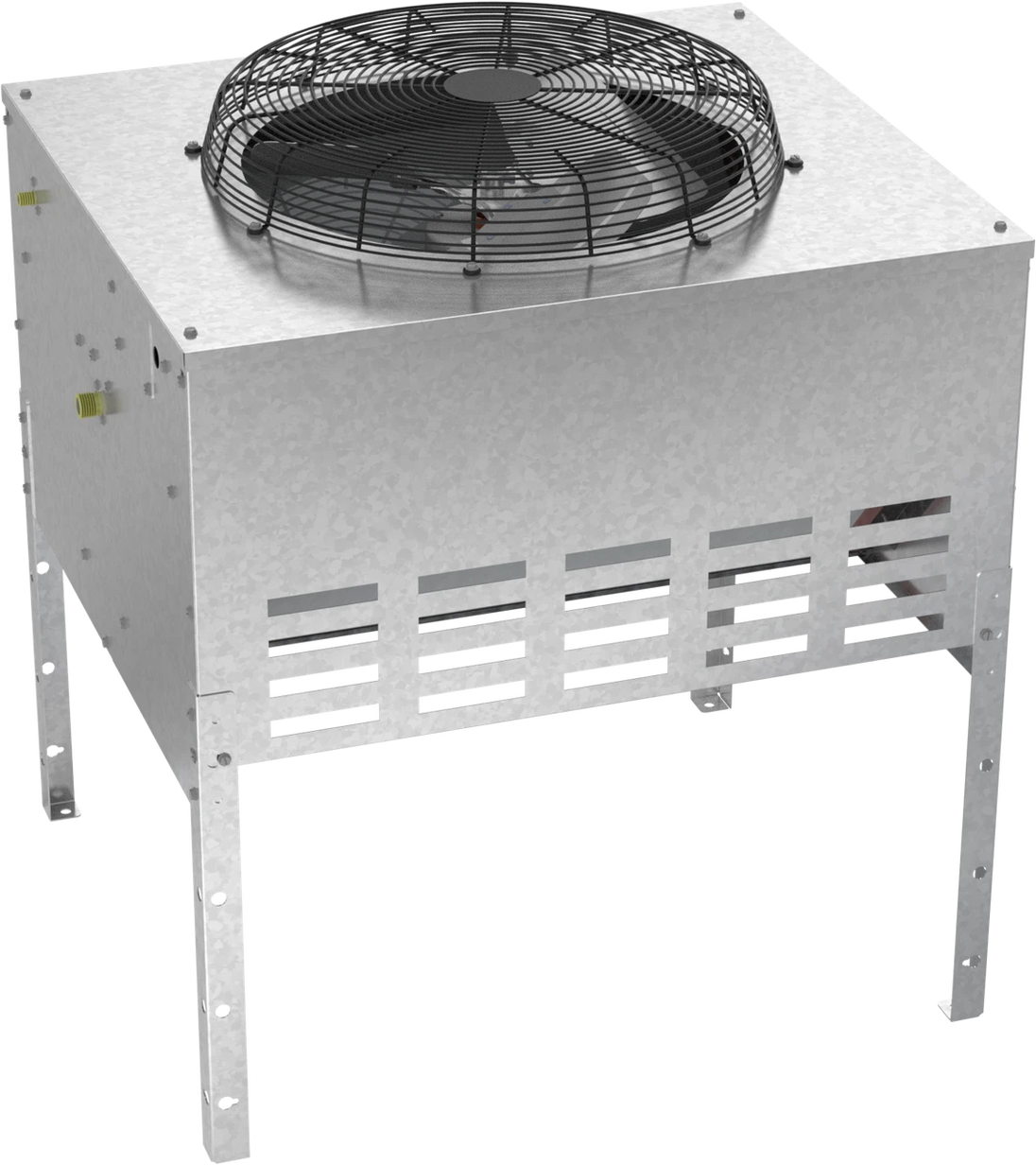

The Ice-O-Matic RC406C49 is a remote condenser sized for the R449 CIM2046R49 and CIM2047R49 heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

The R449 Counterpart to the RC406C40

Ice-O-Matic lists the RC406C49 against the same CIM2046R49 and CIM2047R49 heads at the top of the Elevation Series production range as the RC406C40, but for the R449 refrigerant variant. Dimensions and electrical rating carry over unchanged between the two refrigerant versions.

208-230V Single-Phase in a 31 x 35 x 39 Inch Footprint

Running on a 208-230V/50-60Hz/1-phase circuit matches the electrical requirement of the R449 CIM2046R49 and CIM2047R49 heads it serves. Its 31 x 35 x 39 inch (W x D x H) footprint is taller than the RC306 series to accommodate the larger coil needed at this capacity.

Ordered With a Matching RL49 Lineset

Ice-O-Matic sells the RC406C49 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL49-25, RL49-40, and RL49-75 precharged kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC406C49
Type Remote Condenser
Compatible Heads CIM2046R49, CIM2047R49
Exterior Dimensions 31 x 35 x 39 Inch (W x D x H)
Electrical 208-230V/50-60Hz/1-Phase
Refrigerant R449
Compatible Linesets RL49-25, RL49-40, RL49-75
Shipping Weight 138 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
