Product Description

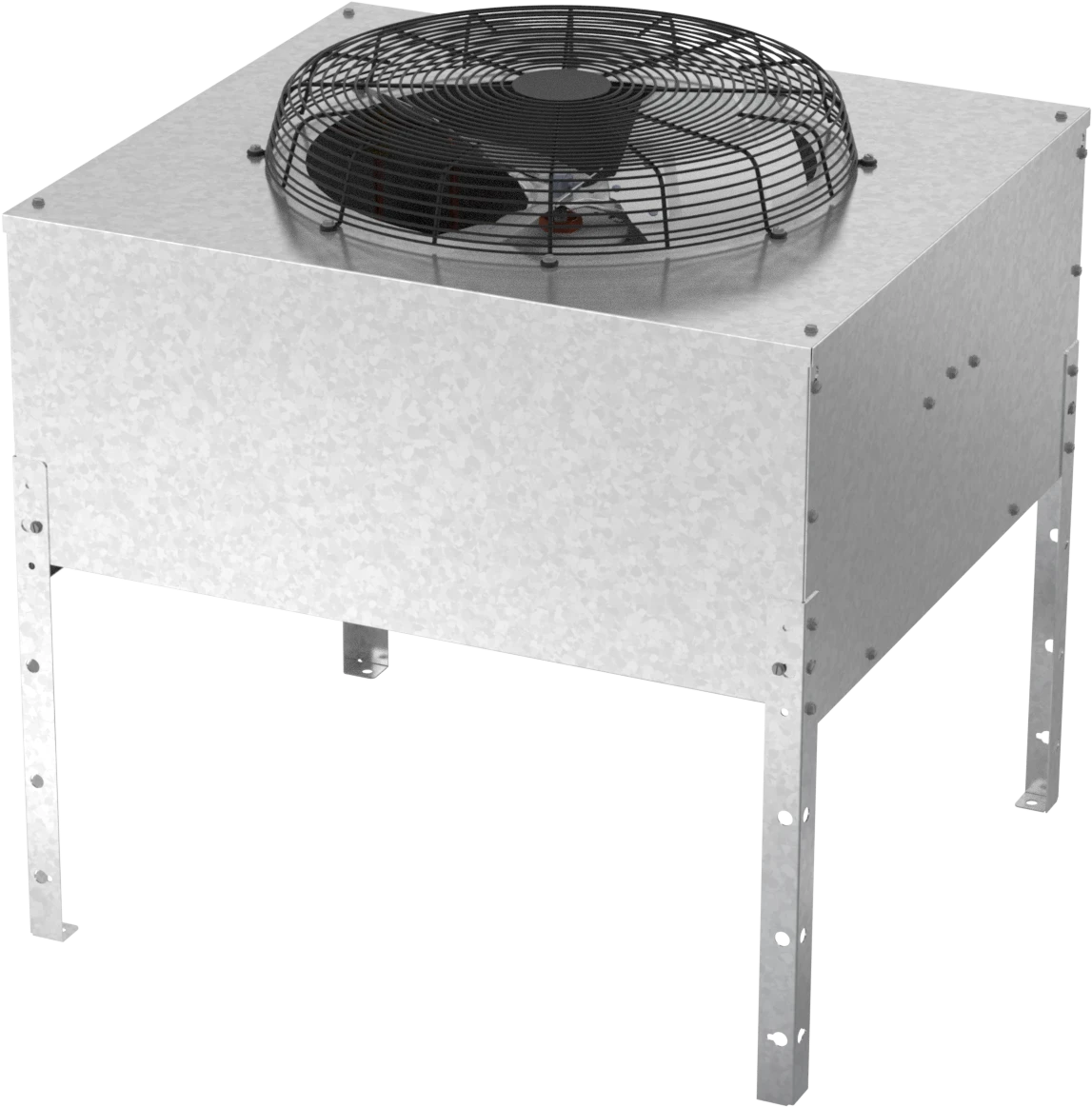

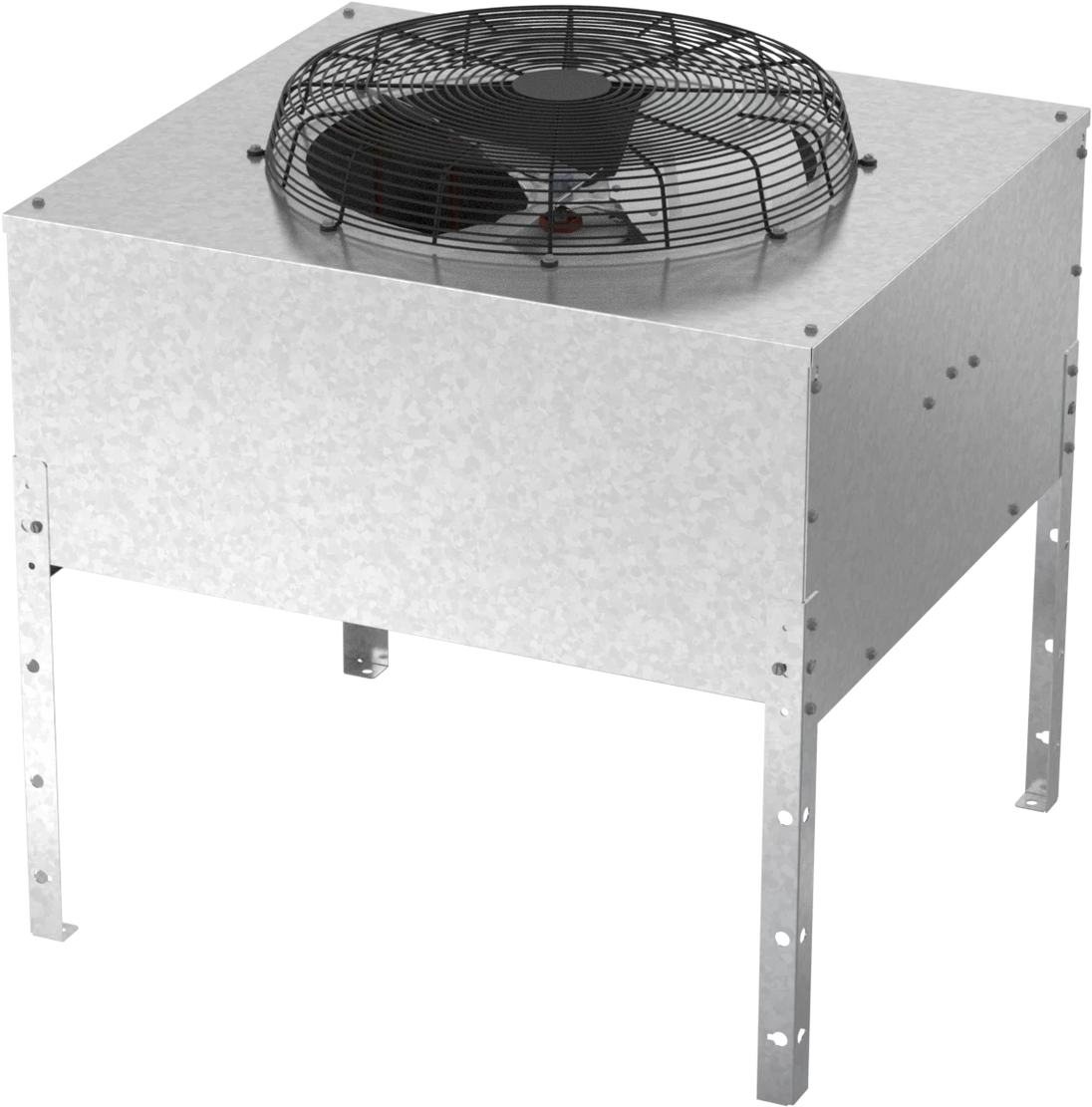

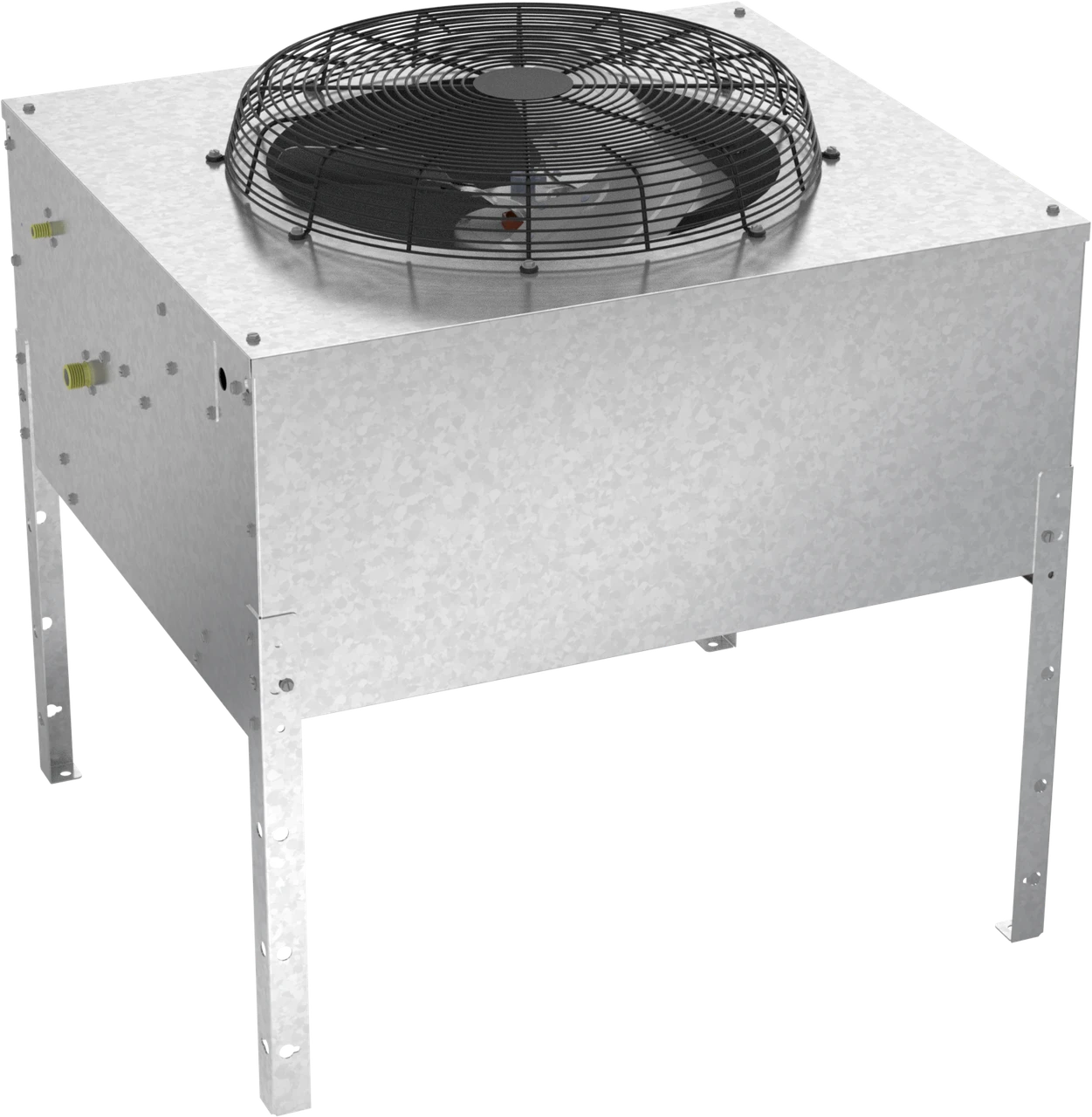

The Ice-O-Matic RC306C40 is a remote condenser sized for the R404 CIM1446R, CIM1447R, ICE1506R, GEM2006R, and MFI2306R heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

One Condenser Across Cube, Slimline, Pearl, and Flake Heads

Ice-O-Matic pairs the RC306C40 with five different remote-cooled heads spanning the CIM cube, ICE1506 slimline cube, GEM pearl, and MFI flake lines, all in the roughly 1400-2300 lb production tier on R404 refrigerant. It is the largest condenser in the RC series to serve this many product families with one part number.

208-230V Single-Phase in a 31 x 35 x 35 Inch Footprint

Running on a 208-230V/50-60Hz/1-phase circuit matches the electrical requirement of the heads it serves. Its 31 x 35 x 35 inch (W x D x H) footprint steps up from the 29 x 31 x 34.5 inch RC106 series to handle the added heat-rejection load of this higher production tier.

Ordered With a Matching RL404 Lineset

Ice-O-Matic sells the RC306C40 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL404-25, RL404-40, and RL404-75 kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC306C40
Type Remote Condenser
Compatible Heads CIM1446R, CIM1447R, ICE1506R, GEM2006R, MFI2306R (R404)
Exterior Dimensions 31 x 35 x 35 Inch (W x D x H)
Electrical 208-230V/50-60Hz/1-Phase
Refrigerant R404
Compatible Linesets RL404-25, RL404-40, RL404-75
Shipping Weight 122 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
