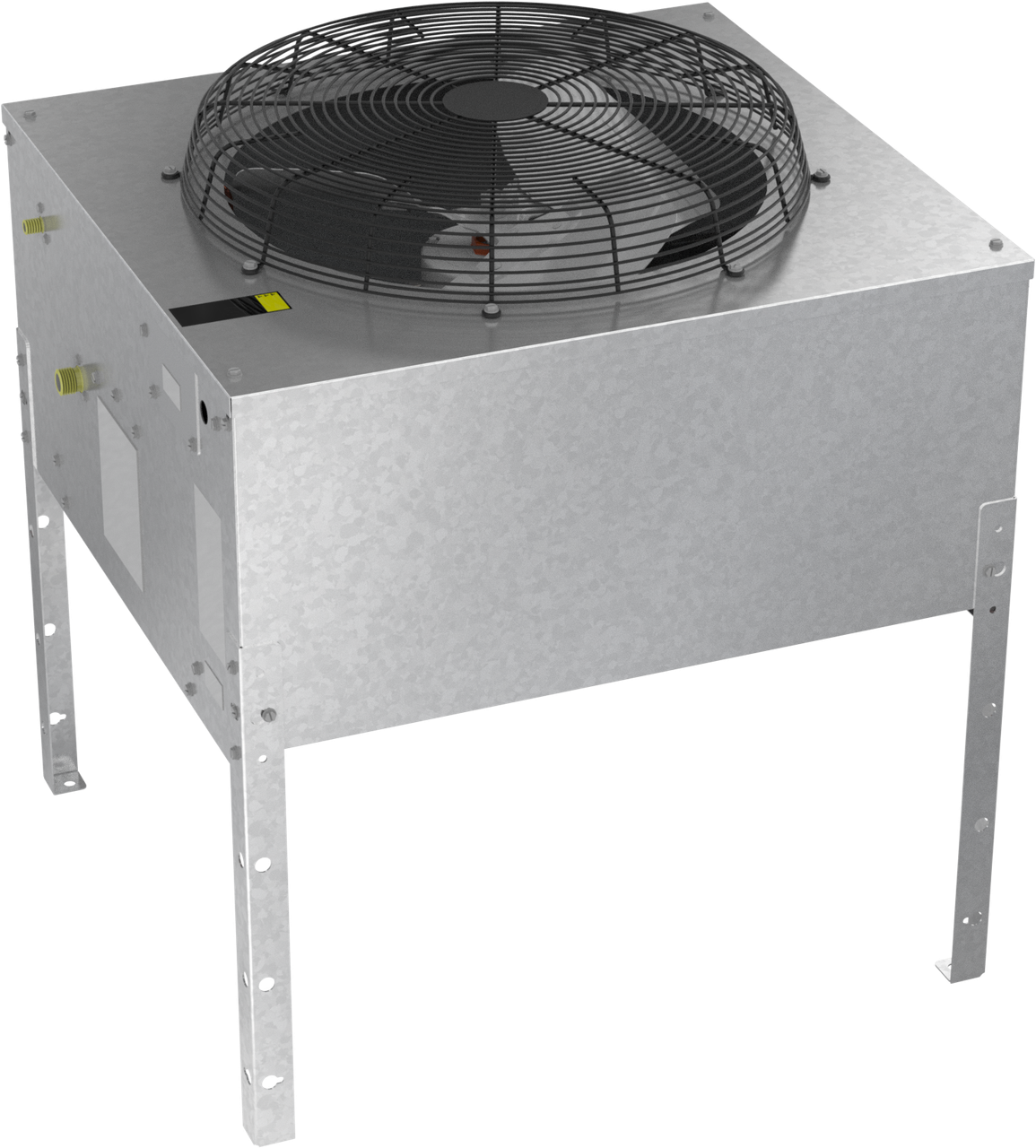

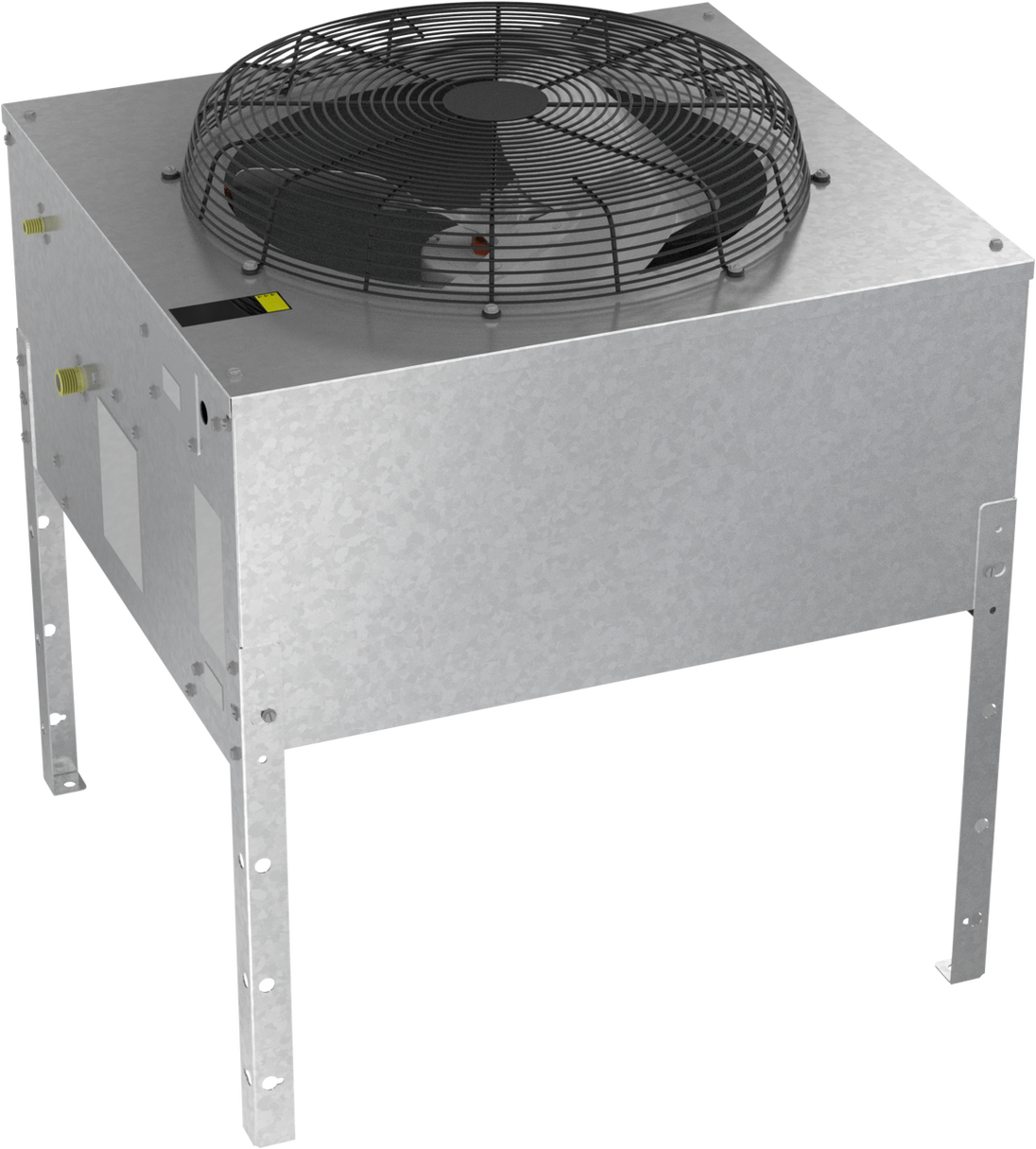

Ice-O-Matic RC206C49 remote condenser for CIM0826R49, CIM0836R49, CIM1126R49 and CIM1136R49 ice machines, left angle view

Product Description

The Ice-O-Matic RC206C49 is a remote condenser sized for the R449 CIM0826R49, CIM0836R49, CIM1126R49, and CIM1136R49 heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

The R449 Counterpart to the RC206C40

Ice-O-Matic lists the RC206C49 against the same 800-1100 lb CIM cube tier as the RC206C40, but for the R449 refrigerant variants of those heads: CIM0826R49, CIM0836R49, CIM1126R49, and CIM1136R49. Dimensions and electrical rating carry over unchanged between the two refrigerant versions.

208-230V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a 208-230V/50-60Hz/1-phase circuit matches the electrical requirement of the R449 CIM heads it serves. Its 29 x 31 x 34.5 inch (W x D x H) footprint is sized for a curb mount or a wall bracket rather than open floor space.

Ordered With a Matching RL49 Lineset

Ice-O-Matic sells the RC206C49 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL49-25, RL49-40, and RL49-75 precharged kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC206C49
Type Remote Condenser
Compatible Heads CIM0826R49, CIM0836R49, CIM1126R49, CIM1136R49
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 208-230V/50-60Hz/1-Phase
Refrigerant R449
Compatible Linesets RL49-25, RL49-40, RL49-75
Shipping Weight 108 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
