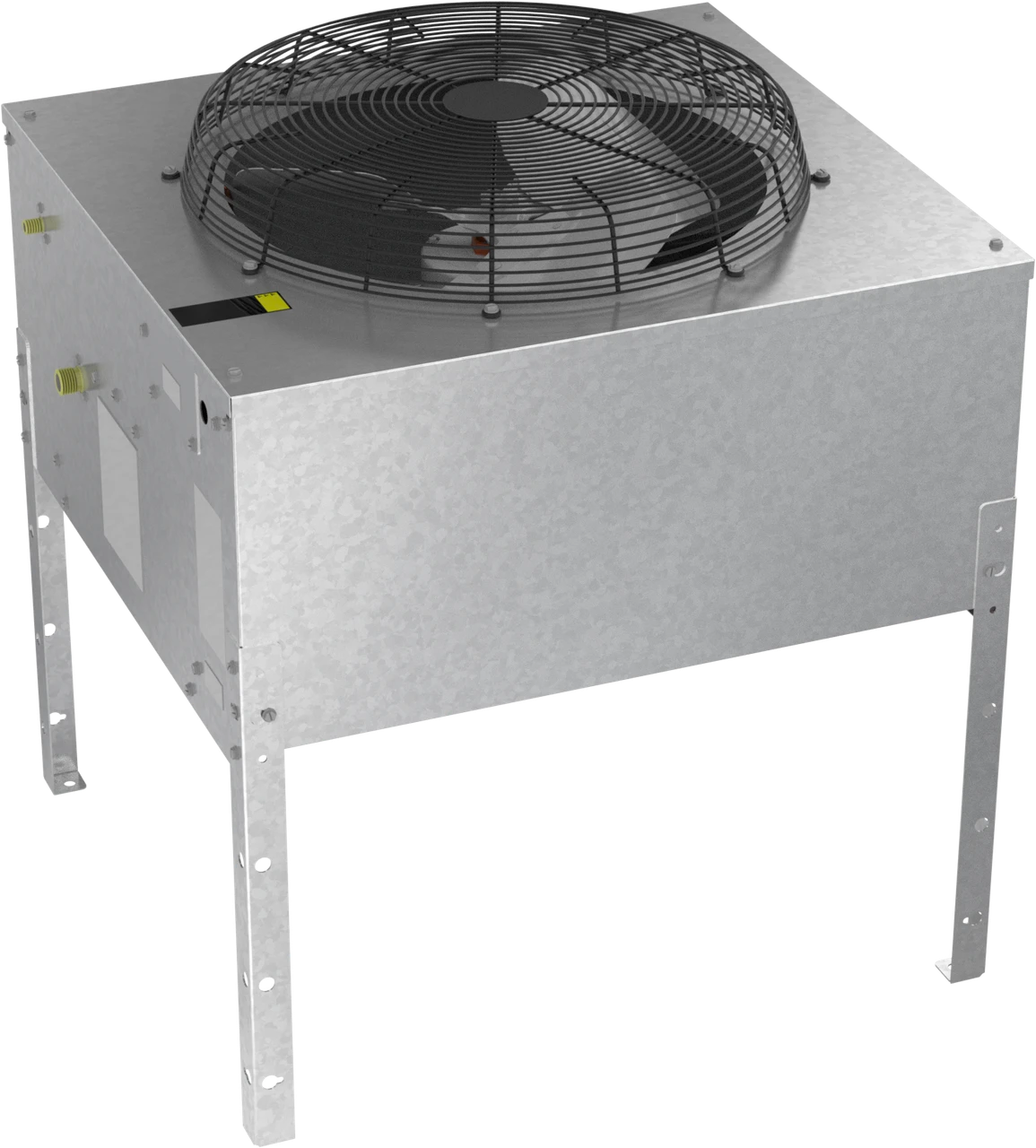

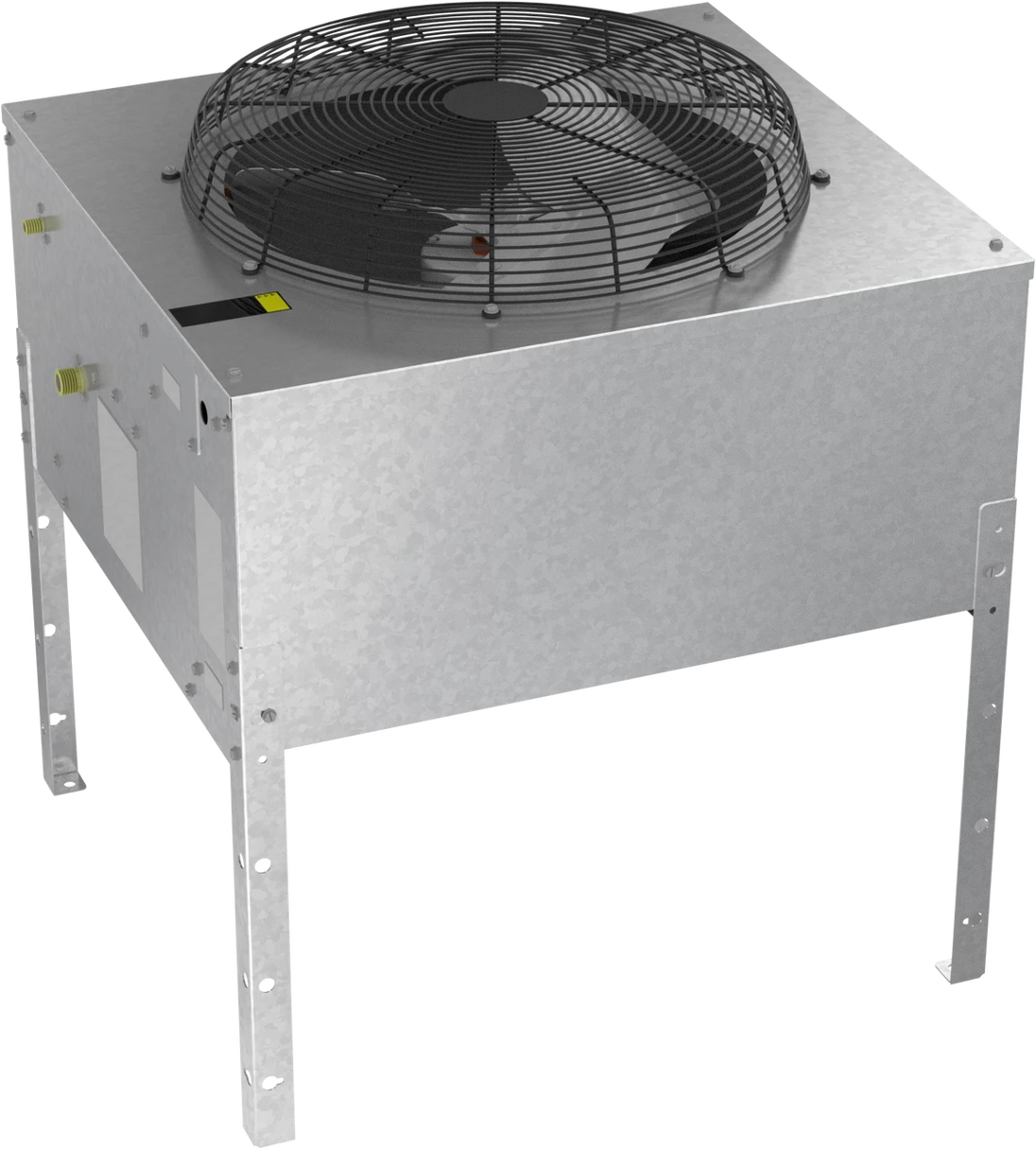

Ice-O-Matic RC206C40 remote condenser for CIM0826R, CIM0836R, CIM1126R and CIM1136R ice machines, left angle view

Product Description

The Ice-O-Matic RC206C40 is a remote condenser sized for the R404 CIM0826R, CIM0836R, CIM1126R, and CIM1136R heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

Sized for the 800-1100 lb CIM Cube Tier

Ice-O-Matic lists the RC206C40 against the CIM0826R, CIM0836R, CIM1126R, and CIM1136R heads, the remote-cooled full and half cube variants in the 800-1100 lb production tier of the Elevation Series. One condenser part number covers both cube configurations at this capacity.

208-230V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a 208-230V/50-60Hz/1-phase circuit matches the electrical requirement of the R404 CIM heads it serves. Its 29 x 31 x 34.5 inch (W x D x H) footprint is sized for a curb mount or a wall bracket rather than open floor space.

Ordered With a Matching RL404 Lineset

Ice-O-Matic sells the RC206C40 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL404-25, RL404-40, and RL404-75 kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC206C40
Type Remote Condenser
Compatible Heads CIM0826R, CIM0836R, CIM1126R, CIM1136R (R404)
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 208-230V/50-60Hz/1-Phase
Refrigerant R404
Compatible Linesets RL404-25, RL404-40, RL404-75
Shipping Weight 108 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
